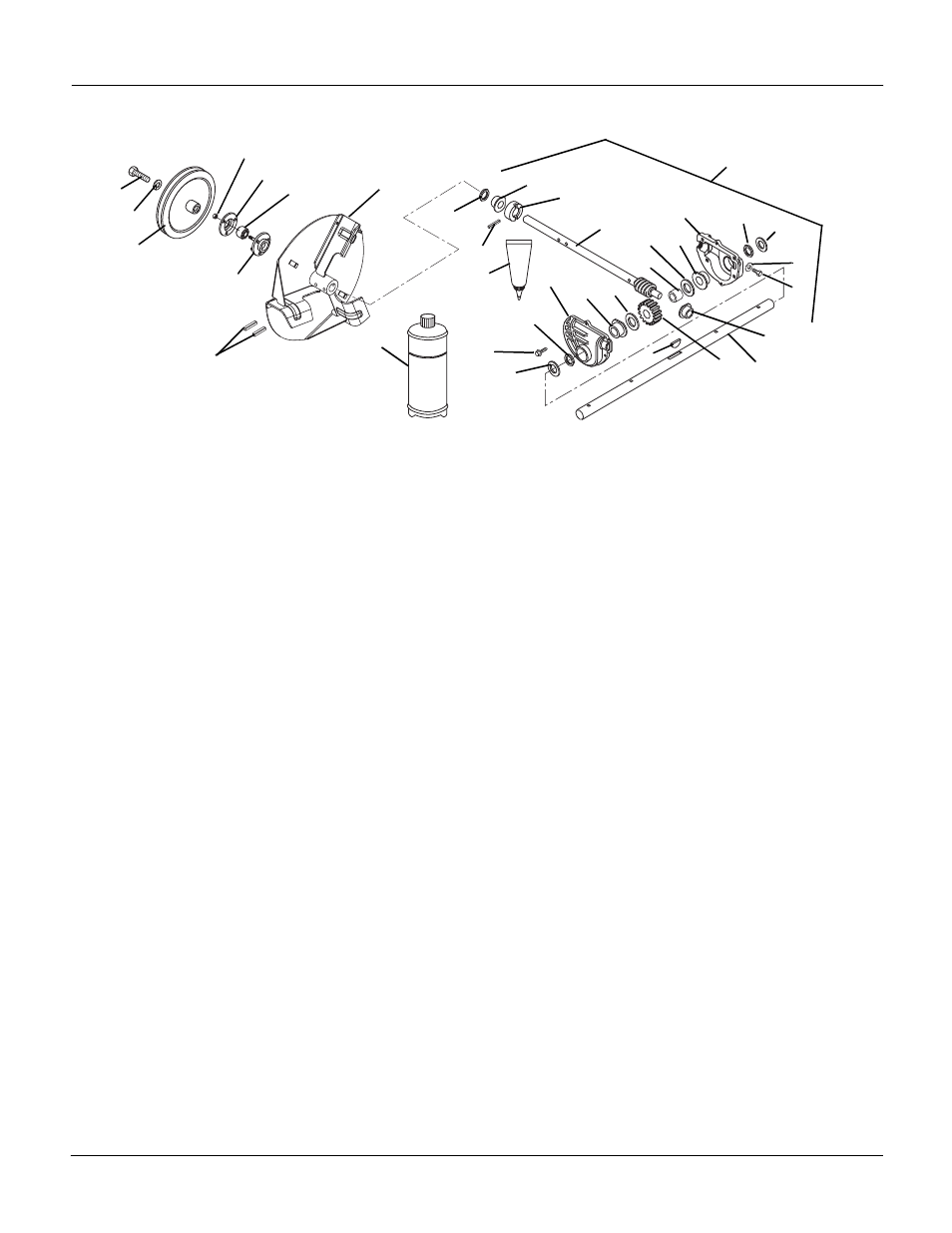

18
G
EAR
C
ASE AND
I
MPELLER
Model 932045, 046, 047, 048, 311, 312
Item Part No. Qty. Description
1 00187000 1 Pulley, 4L with Hub .75 x 8.50
2 00008000 1 Ariens 16 oz. Bottle of L2 Lube
3 05531200 1 Bushing, Sleeve .755 x 1.500 x .442
4 05600004 1 Seal, Oil .748 x 1.378 x .276
5 05804900 1 Pin, Groove .19 x 1.25 Type E
6 05803700 2 Pin, Roll .25 x 1.75
7 00426651 1 Weldment, Impeller 12" 3 Blade
8 06442500 1 Washer, Fiber .44 x .66 x .032
9 05511200 1 Bushing, Flange .75 x 1.00 x .75 x 1.25
10 00272100 1 Thrust Collar .75 I.D.
11 53212500 1 Shaft & Worm Gear Assembly
12 00291100 1 Gear Case Casting, Machined Left Hand
13 06609300 1 Key, Woodruff .19 x .63 Hardened #61
14 06439000 2 Washer, Flat Steel .81 x 1.50 x .14
15 07417000 1 Screw, Tapping .38-16 x .75 Rolok
16 00263000 1 Shaft, Rake 24" (045, 046, 047, 311, 312)
00260500 1 Shaft, Rake 20" (048, 311)
17 05520600 1 Bushing, Flange .50 x 1.00 x .75
18 07412400 6 Screw, Tapping Hex Washer Head .25-20 x 1.00
19 06441500 2 Washer, Flat Steel .755 x 1.375 x .062
20 00031700 1 Loctite Gasket 518
21 00291200 1 Gear Case Casting, Machined Right Hand
22 05531100 2 Bushing, Flange .75 x 1.13 x .50 x 1.50
23 53212700 1 Gear Case Assembly- 24" (contains 3-5,8-13,15-22,28) (045, 046, 047, 311, 312)
53212600 1 Gear Case Assembly- 20" (contains 3-5,8-13,15-22,28) (048, 311)
24 06529700 3 Nut, Locking Center .25-20
25 01014200 1 Bearing Flange
26 05406300 1 Bearing, Ball .75 x 1.75 x .50
27 00428700 1 Bearing, Flange
28 05618900 2 Seal, Oil .75 x 1.375 x .250
29 05947300 1 Bolt, Hex .31-24 x .75 Grade 5
30 06307400 1 Washer, Locking .312 x .097 Heavy
4
8
17
14
1
7
6
5
12
11
28
15
16
18
11
20
9
10
21
22
22
23
30
24
25
26
27
PS0381
14
28
13
29
3
2
19
19
