Agilent Technologies 34398A RS-232 User Manual
Page 2
Products Tested The following Agilent instruments have been tested
to operate properly with a
PC
, printer, and modem using the cable and
adapter kits.
• 33120A Function Generator / Arbitrary Waveform Generator
• 34401A Multimeter
• 53131A Universal Counter

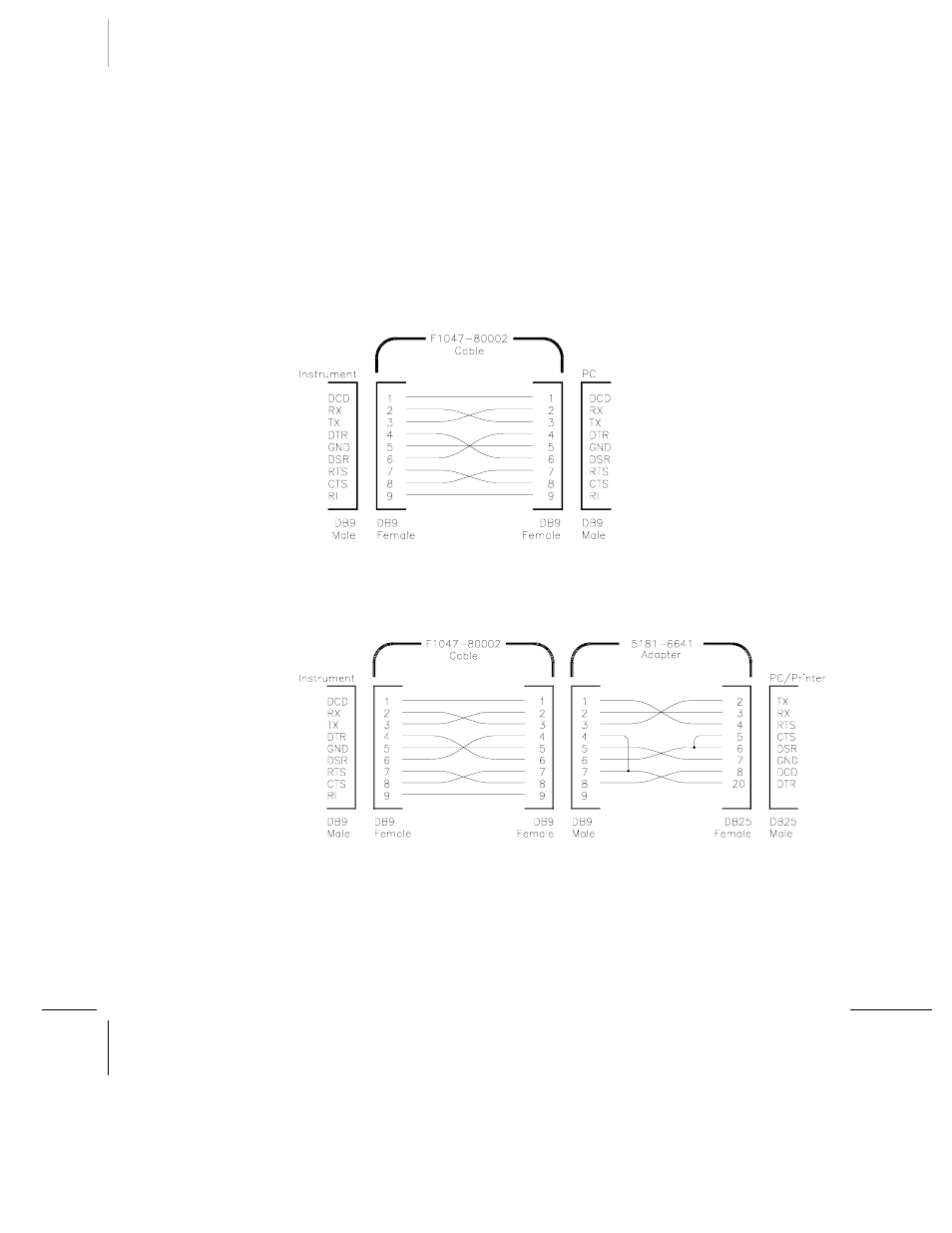

Cable and Adapter Pin Diagrams The following diagrams show
the pin connections for the Null Modem cable (part number F1047-80002)
with each of the adapters.
2
9-Pin F to
9-Pin F Cable
Cable With
25-Pin F Adapter
