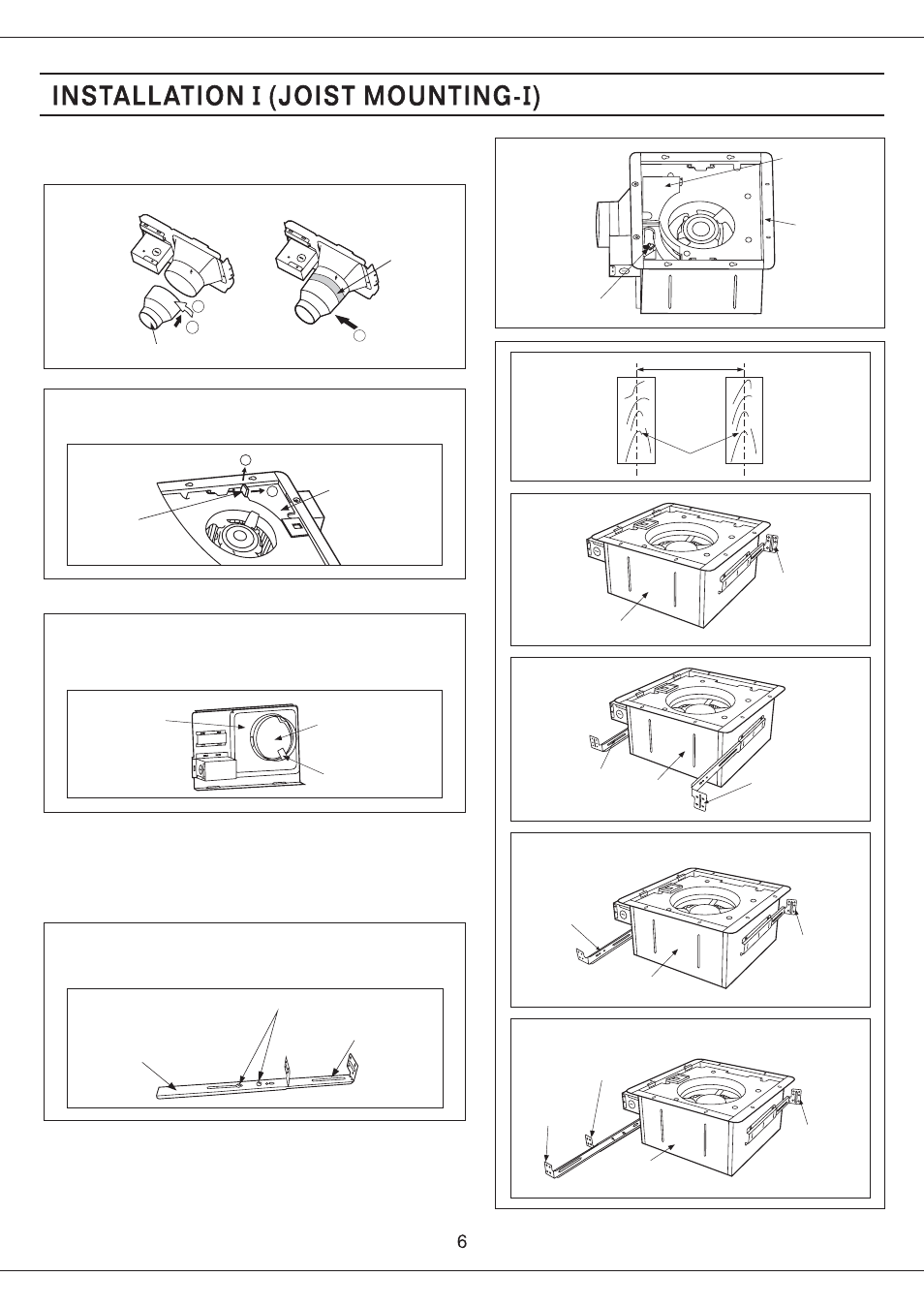

Panasonic FV-08VF2 - Manual (Page 6)

Press and hold the claw of orifice cover to open
the orifice cover.
1. Before installation, open the orifice cover. Secure the fan
body to adaptor by using thumb screw. (Fig. 1)
Fig. 1
2. Insert the supension bracket into the fan body and
adaptor. (select the suspension bracket acc rding
to Fig. 2) o
Remove the tape
IMPORTANT:
Adaptor
Remove the tape from damper and adaptor
before installation.As show below:
Damper
2-Screw (M4X8) I
Suspension bracket III
Suspension bracket II
If spacing A on center joists is 24 inches, connect
suspension bracket
and (C4 mark to C4 mark)
as show below :
II III
Orifice cover
Claw
3 inches adaptor connector
Connection method for 3 inches adaptor connector
Duct tape
Orifice cover
Fan body
Thumb screw
Suspension
bracket
III
Suspension
bracket
I
Fig. 2-3
A = 19.2 inches vertical joists
Fan body
Suspension
bracket
I
Fig. 2-1 Fan body
A = 12 inches
Suspension
bracket
I
Suspension
bracket
III
Fig. 2-2
A = 16 inches
Fan body
Fig. 2-4
Fan body
Suspension
bracket
I
Suspension
bracket
III
Suspension
bracket
II
A = 24 inches
2
1
1
2
3
Joist
A
