Preparation
For assistance, please call: 1-800-211-PANA(7262)
If you provide only two single-line telephone jacks for the units, continue to
wire them using optional Panasonic T-adaptors KX-J66. To order, call the
accessories telephone number on page 3.
• If you do not connect other extensions, you do not need to use a T-adaptor.
Connect a 2-wire telephone line cord to the LINE1/2 telephone jack of the unit
directly.

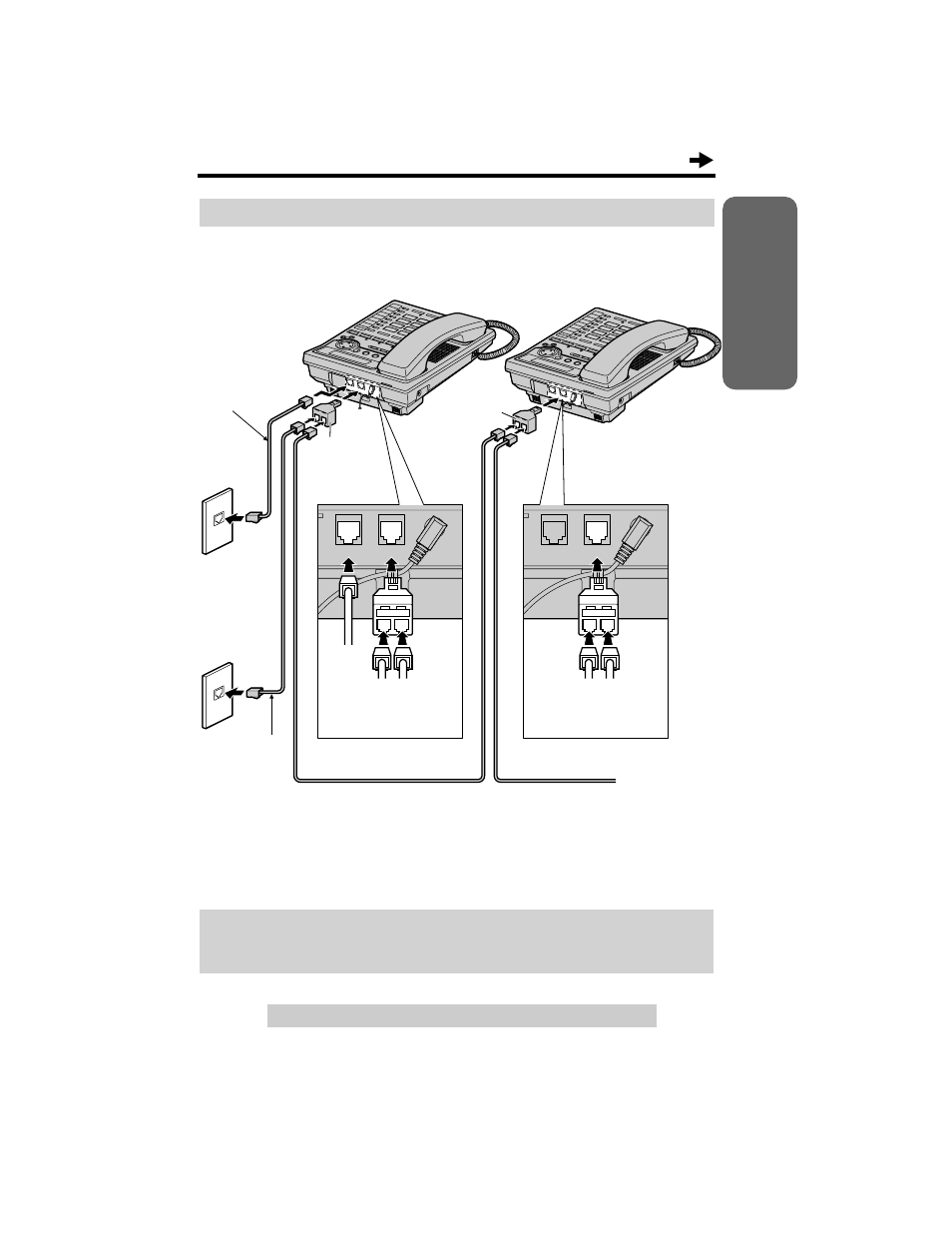

To connect the units to two single-line telephone jacks
DSL Internet connection and KX-TS3282B/KX-TS3282W Intercom work at
similar frequencies. Please contact Panasonic at 1-800-211-PANA(7262) for
special wiring configurations.
LINE2/DATA LINE1/2 LINE2/DATA LINE1/2
4-Wire Telephone
Line Cord with
GREEN Plugs
4-Wire Telephone Line Cord
with GREEN Plugs 4-Wire Telephone
Line Cord with
GREEN Plugs
2-Wire Telephone
Line Cord with
TRANSPARENT
Plugs
To another
unit
Single-Line
Telephone
Jacks (RJ11C)
GREEN
Plug
TRANS-
PARENT
Plug GREEN
Plug GREEN
Plug GREEN
Plug
T-Adaptor
(KX-J66)
T-Adaptor
(KX-J66)
LINE 1
LINE 2
