Avalon Stoves CHELAN B-VENT 700 B-VENT - Manual (Page 16)

P AGE 16
O
PERATING
Y
OUR
H
EATER
Before You Begin
! Read this entire manual before you use your new heater (especially the section "Safety
Precautions" on pages 2 & 3). Failure to follow the instructions may result in property
damage, bodily injury, or even death.

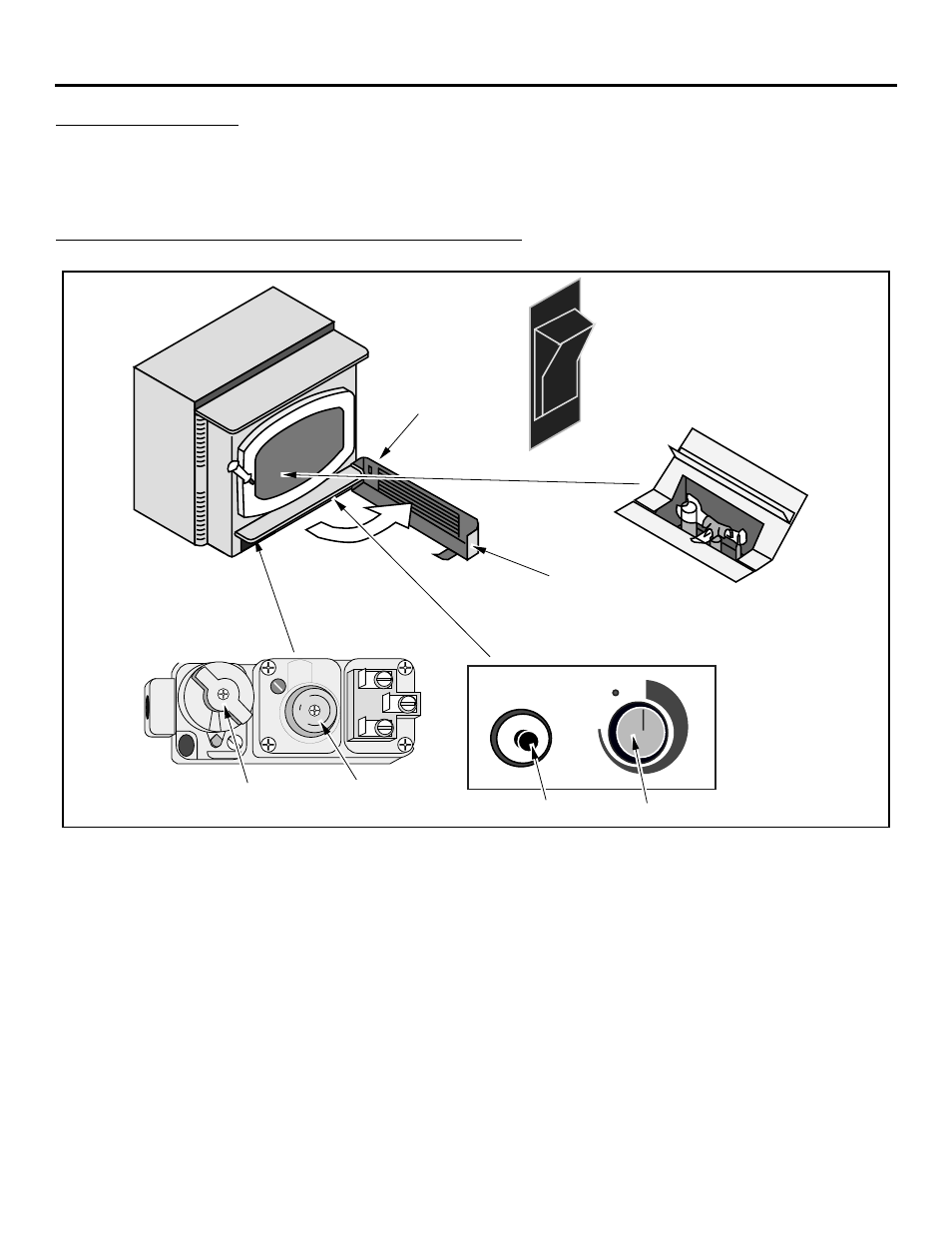

Location of Controls - See explanation below
Swing the control cover to the
right to access the gas control
valve, igniter, and blower control.
Gas
Control
Valve
PILOT ADJ
VENT
T O L PI
ON
OFF HI
LO
Gas Control
Knob
Flame Adjust
Knob
Blower Knob
BLOWER
LO
OFF
HI
PILOT
IGNITER
Pilot Igniter
ON/OFF
Switch
The on/off switch
is located on the
right side of the
control cover.
The Pilot Flame can be
found below the back log
on the left side.
O
F
ON
F
Blower Knob This knob controls the speed of the internal convection blower that pushes the
heated air into the room.
On/Off Switch This control is used to turn the heater on and off.
Pilot Igniter The pilot igniter is used only to start the pilot. When pressed, it sends an
electrical charge to the pilot assembly. This creates a blue spark directly next
to the pilot, igniting the pilot flame.
Gas Control Knob This knob is used to control gas to the heater and for starting the pilot. There
are three positions, ON, OFF, & PILOT. The pointer directly below the knob
indicates the position this knob is in.
Flame Adjust Knob This knob controls the flame height from low ("LO") to high ("HI"). The
pointer to the upper right of the knob points to the position this knob is in.
? If using a remote control or thermostat, the On/Off Switch must be left "ON". Turning the On/Off
Switch "OFF" will keep the heater off always.
