ELECTRICAL SYSTEM

SATELLITE ANTENNA WIRING

(Not available on the 16 ft. model.)

If you compare the two drawings you’ll see wiring for a satellite dish antenna

is relatively simple.

Units have a faceplate with two coax cable hook-ups. It is located as fol-

lows:

19 ft. model: on the roadside bedroom wall.

22 ft. model: above the desk.

25 ft. sleep six and 27 ft front bed models: roadside wall forward of the re-

frigerator.

23 ft, 25 ft. front bed and 28 ft. models: under the dinette table.

The faceplate has a small coax cable jumper running between the hook-ups

to complete the cable TV circuit when in use.

To install a satellite system use the following procedure:

1. Remove the jumper wire from the coax faceplate.

2. Hook a portable dish into the exterior Cable TV receptacle. This feeds the

dish signal to the input side of the faceplate.

3. Install the satellite receiver input and output into the dual coax faceplate.

To return to a Cable TV system, remove the satellite receiver from the face-

plate and reinstall the jumper cable.

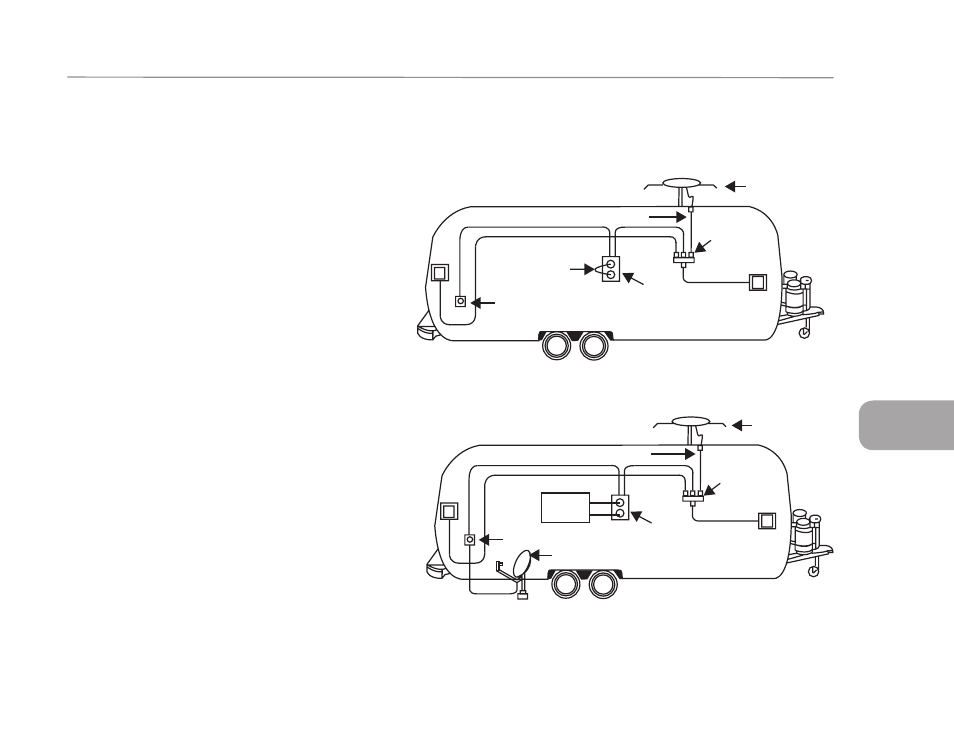

COAXIAL CABLE WITH CABLE HOOK UP

COAXIAL CABLE WITH SATELLITE HOOK UP

Exterior Cable TV Hook Up

Dual Coax
Faceplate

Jumper
Cable

Satellite Antenna

Front TV Jack
W/Booster

Satellite
Reciever

TV Antenna

Antenna Lead in
