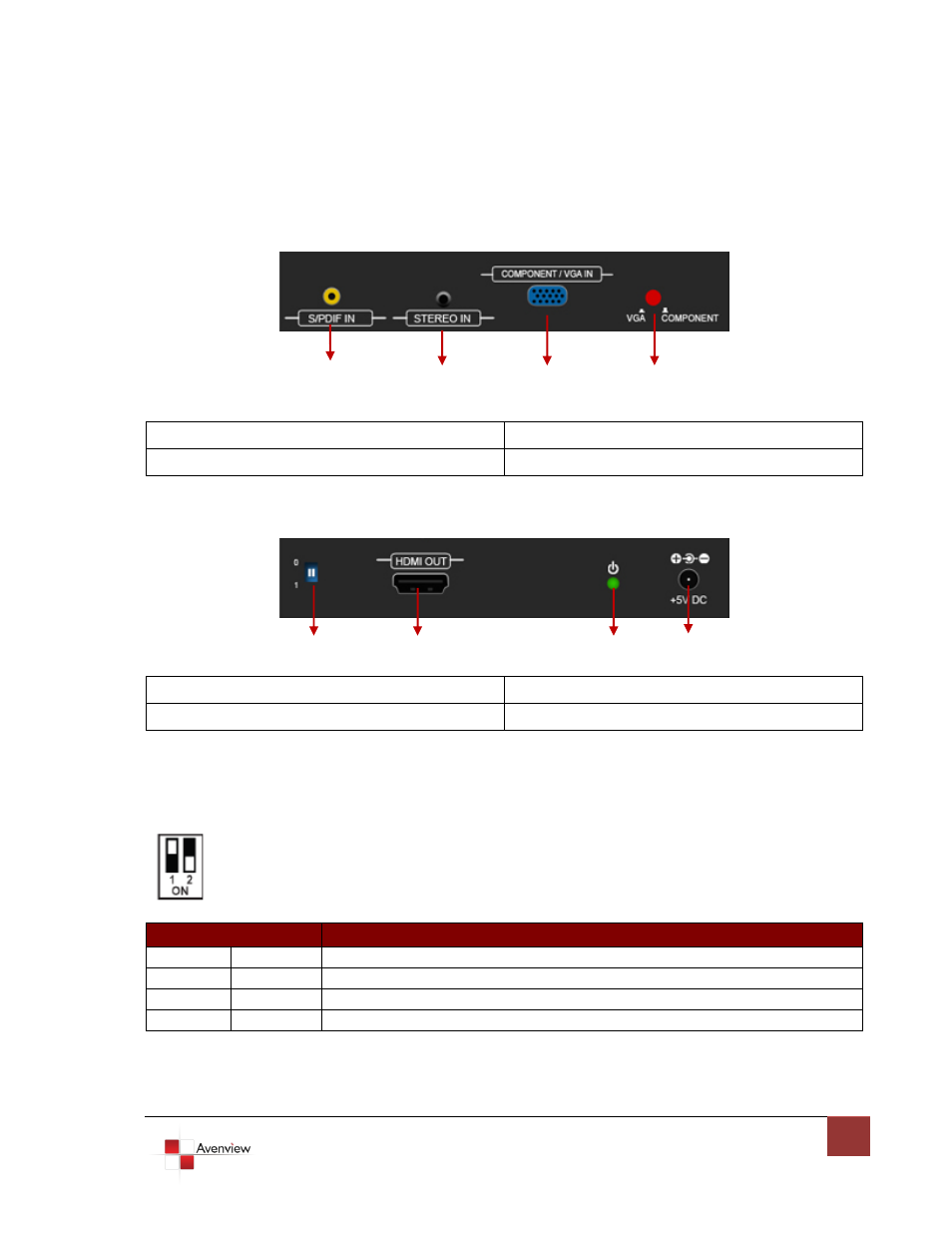

1.7 Panel Description
1.7.1 Front Panel
1 2 3 4
1. S/PDIF IN 2. STEREO IN
3. Component or VGA IN 4. Component or VGA Select Button
1.7.2 Rear Panel
1 2 3 4
1. Mode Switch 2. HDMI OUT
3. Power Indicator 4. 5V DC Power Jack
1.7.3 DIP Switch
PIN # Mode
1 OFF  Reset to Factory default EDID
1 ON  Learn & store connected monitor’s EDID
2 OFF  Analog Audio Input
2
ON  S/PDIF Audio Input
