500-S, 750-S, 1000-S, 1000-UP • INSTALLATION/OPERATION/SERVICE MANUAL • 29.

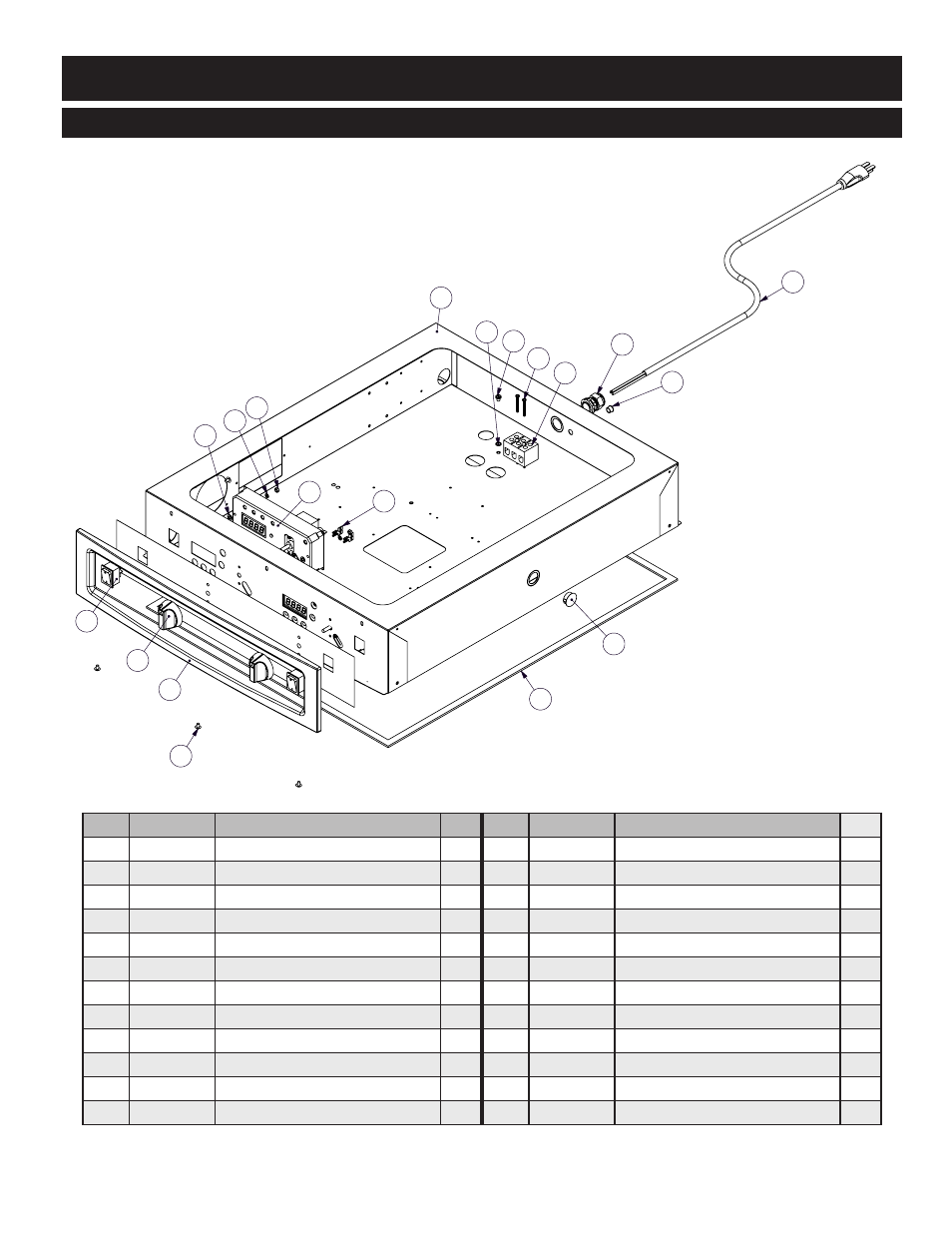

S E R V I C E V I E W
M A N U A L C O N T R O L
- 1 0 0 0 - U P
I T E M PA R T N O .
D E S C R I P T I O N
Q T Y
I T E M PA R T N O .
D E S C R I P T I O N
Q T Y
1
5009114
BONNET, SPOT, 1200-UP
1
12
PG-25574
HOLE PLUG, 3/8"
1
2
BK-3019
T-BLOCK
1
13
PG-3589
HOLE PLUG, 13/16
1
3
BU-3964
BUSHING, STRAIN RELIEF
1
14
SC-2190
GROUND SCREW
1
4
CC-34488
CONTROL
2
15
SC-2365
SCREW, ROUND HD, 16-32 X 1-1/4"
2
5
CD-33824
CORDSET, 120V
1
16
SC-2459
SCREW, PHIL, 8-32 X 1/4"
5
CD-3551
CORDSET, 208/240V, 230V
1
17
SW-34375
SWITCH, ROCKER, POWER, 120V
2
6
CR-34558
CONNECTOR
4
SW-34351
SWITCH, RKR, PWR, 208-240V, 230V
2
7
GS-2019
GASKET
1
18
WS-22300
WASHER M4 SPLIT LOCK S/S 18-8
4
8
KN-26568
THERMOSTAT KNOB
2
19
WS-2420
WASHER, #10 NYLON
4
9
NU-22286
HEX NUT
4
20
WS-2467
WASHER, STAR LOCK
1
10
PE-26567
CONTROL PANEL BEZEL
1
21
PR-34494
PROBE (NOT SHOWN)
2
11
PE-28637
CONTROL PANEL OVERLAY
1
208/240V Unit Shown
