Alto-Shaam 1000-S - Manual (Page 29)

M A N U A L C O N T R O L - 5 0 0 - S , 7 5 0 - S , 1 0 0 0 - S
S E R V I C E
500-S, 750-S, 1000-S, 1000-UP • INSTALLATION/OPERATION/SERVICE MANUAL • 28.

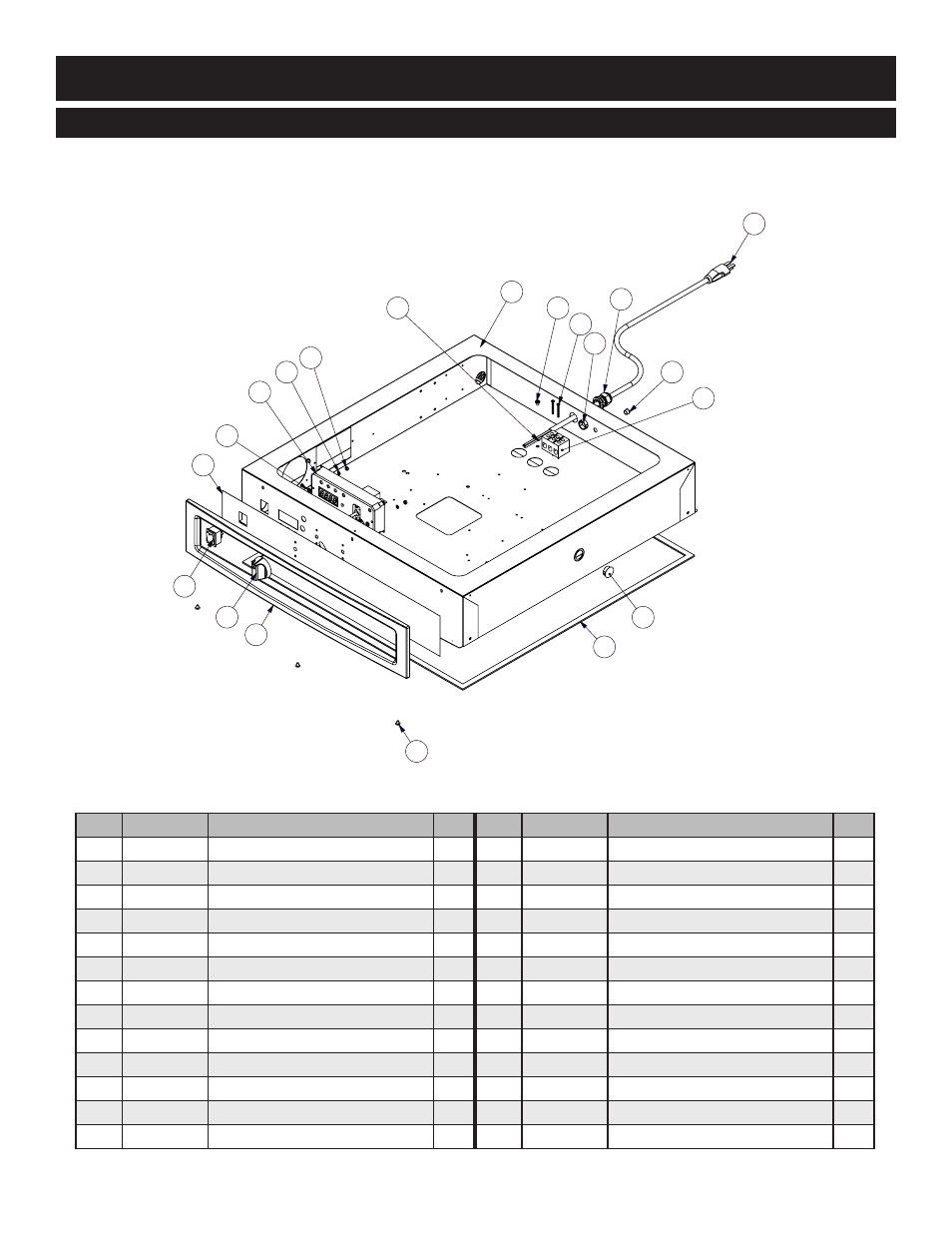

208/240V Unit Shown
I T E M PA R T N O . D E S C R I P T I O N Q T Y I T E M PA R T N O . D E S C R I P T I O N Q T Y
1 5009353 BONNET, SPOT, 500-S 1 11 PE-28701 CONTROL PANEL OVERLAY 1
5009347 BONNET, SPOT, 750-S 1 12 PG-25574 HOLE PLUG, 3/8" 1
5009114 BONNET, SPOT, 1000-S 1 13 PG-3589 HOLE PLUG, 13/16 2
2 BK-3019 T-BLOCK 1 14 SC-2190 GROUND SCREW 1
3 BU-3964 BUSHING, STRAIN RELIEF 1 15 SC-2365 SCREW, ROUND HD, 16-32 X 1-1/4" 2
4 CC-34488 CONTROL 1 16 SC-2459 SCREW, PHIL, 8-32 X 1/4" 5
5 CD-3232 CORDSET, 120V 1 17 SW-34375 SWITCH, ROCKER, POWER, 120V 1
CD-3551 CORDSET, 208/240V, 230V 1 SW-34351 SWITCH, RKR, PWR, 208-240V, 230V 1
6 CR-34559 CONNECTOR 4 18 WS-22300 WASHER M4 SPLIT LOCK S/S 18-8 2
7 GS-2019 GASKET 1 19 WS-2420 WASHER, #10 NYLON 2
8 KN-26568 THERMOSTAT KNOB 1 20 WS-2467 WASHER, STAR LOCK 1
9 NU-22286 HEX NUT 2
10 PE-26566 CONTROL PANEL BEZEL 1
5
1
14 20
2
15
3
13
12
9
18
19
4
11
10
8
17
16
7
13
