9A60 SPECIFICATIONS:
Input:
RGB Video Input:
HV Sync Inputs:
Output:
Y Video Output:
Pb Output:
Pr Output:
Y Sync Output:
RGBHV on HD-15 VGA connector
700mV p-p
5 volt TTL
Y Pb Pr Component video to 3 RCA jacks
701G + .212R + .087B
500B - .384G - .116R
.500R - .445G - .055B
300mV negative bilevel, 600nS horizontal,
unprocessed vertical
Video Bandwidth:
Size (H x W x D):
Warranty:
Power Requirements:
Regulatory Approvals:
Accessories Included:
-3dB @ 250MHz
4.55” X 3.30” X 1.25”
One Year Replacement
100-240 VAC, 50-60Hz
FCC
6-foot VGA male-to-male cable,
12 volt DC power pack
1365 SPECIFICATIONS:
Input Connector:
HD-15 Female
Output Connector:
HD-15 Female
Physical Input Format:
RGBHV
Physical Output Format:
RGBHV
Electrical Input Format:
RGBHV, YPbPr, YCbCr
Electrical Output Format:
RGBHV, YPbPr
PC Input Resolutions:
640x480 to 1280x1024
HDTV Input Resolutions:
Interlace: 480i/p, 576i/p, 720p*
HDTV Output Resolutions:
480p, 576p, 720p 1080i/540p*
Input Signal Controls:
Clock frequency, phase
Output Signal Controls:
Brightness, contrast, color,
red-green-blue levels,
Horizontal and Vertical Position

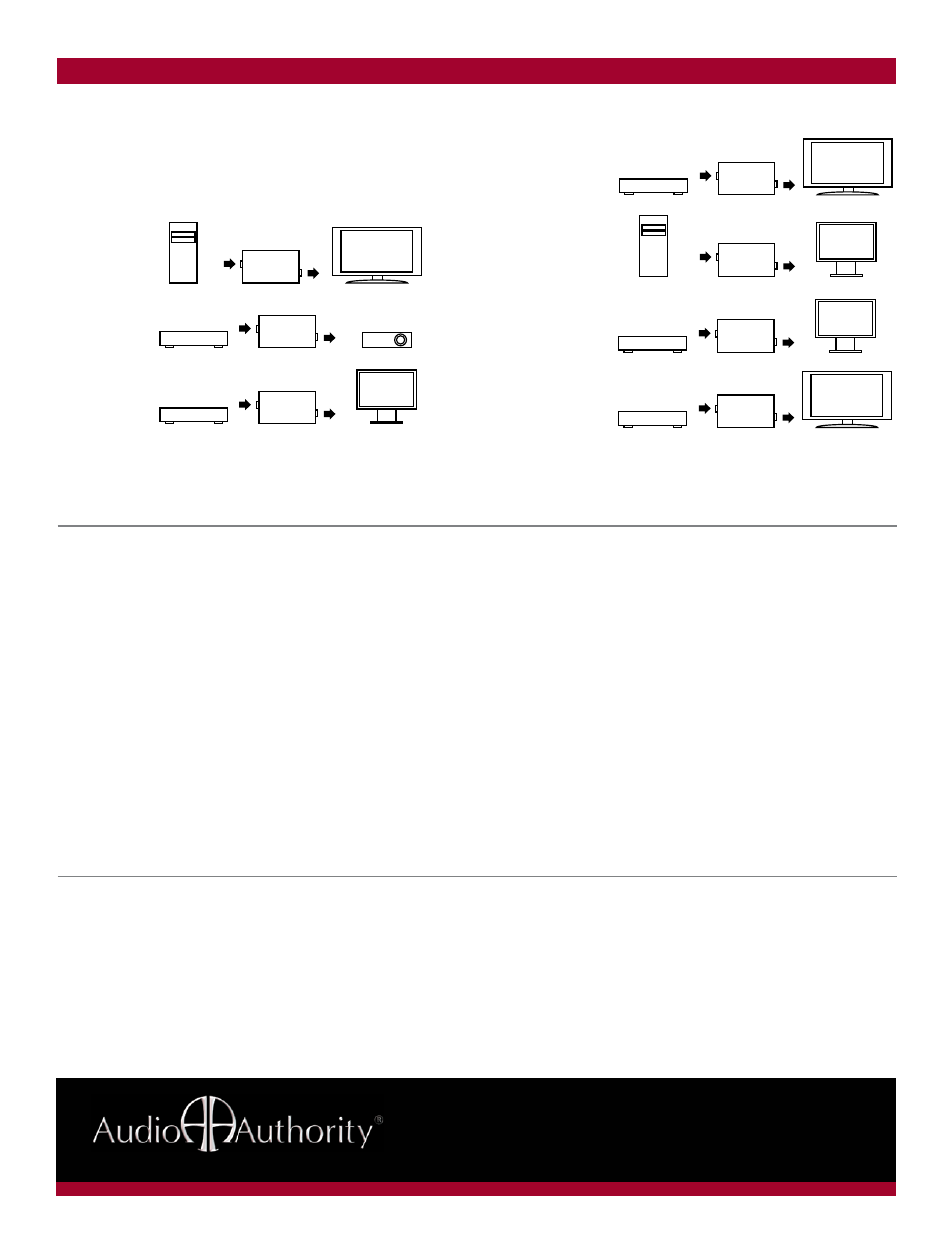

THE VERSATILE 1365
The Model 1365 Video Scaler/Converter is capable of many types
of signal conversion. Below are some of the many examples of
the solutions it provides.
DVD
1365
PC
Monitor
BLU-RAY
HDTV
1365
1365
HD DVD
PC
Monitor
1365
HDTV
1365
DVD
DVD
1365
HD
Projector
HD DVD to PC
Any
PC Res
RGBHV
Any
HD Res
YPbPr
Any
HD Res
YPbPr
Any
HD Res
YPbPr
DVD to Projector
Any
HD Res
RGBHV
480p
YPbPr
DVD
1365
PC
Monitor
BLU-RAY
HDTV
1365
1365
HD DVD
PC
Monitor
1365
HDTV
1365
DVD
DVD
1365
HD
Projector
PC to PC
Any
PC Res
RGBHV
Any
PC Res
RGBHV
PC
Monitor
*1080i output is actually a doubled 540p signal. It appears as 1080i on most displays; however, it is not a true 1080i signal format.
Size (H-W-D):
1x7x4 inches (25x175x100mm)
Weight (Net):
1.5lb (680g)
Limited Warranty:
1 year replacement
Operating Temperature:
+32° to +120° F (0° to +48° C)
Operating Humidity:
10% to 85%, non-condensing
Storage Temperature:
-40° to +150° F (-40° to +65° C)
Storage Humidity:
10% to 85%, non-condensing
External Power Supply:
115VAC to 12VDC @ 800mA
maximum
Regulatory Approvals:
Scaler: FCC, CE
Power Supply: UL, CE, CSA
Accessories Included:
3 ft HD-15 to YPbPr (3 RCA)
AC Power Adapter
DVD
1365
PC
Monitor
BLU-RAY
HDTV
1365
1365
HD DVD
PC
Monitor
1365
HDTV
1365
DVD
DVD
1365
HD
Projector
PC to HDTV
Any
HD Res
YPbPr
Any
PC Res
RGBHV
HDTV
1365
Blu-ray to HDTV
DVD
1365
PC
Monitor
BLU-RAY
HDTV
1365
1365
HD DVD
PC
Monitor
1365
HDTV
1365
DVD
DVD
1365
HD
Projector
DVD to PC
DVD to HDTV
480i
YCbCr
480p
YPbPr
Any
HD Res
YPbPr
Any
PC Res
RGBHV
