ASUS P5L 1394 2-27

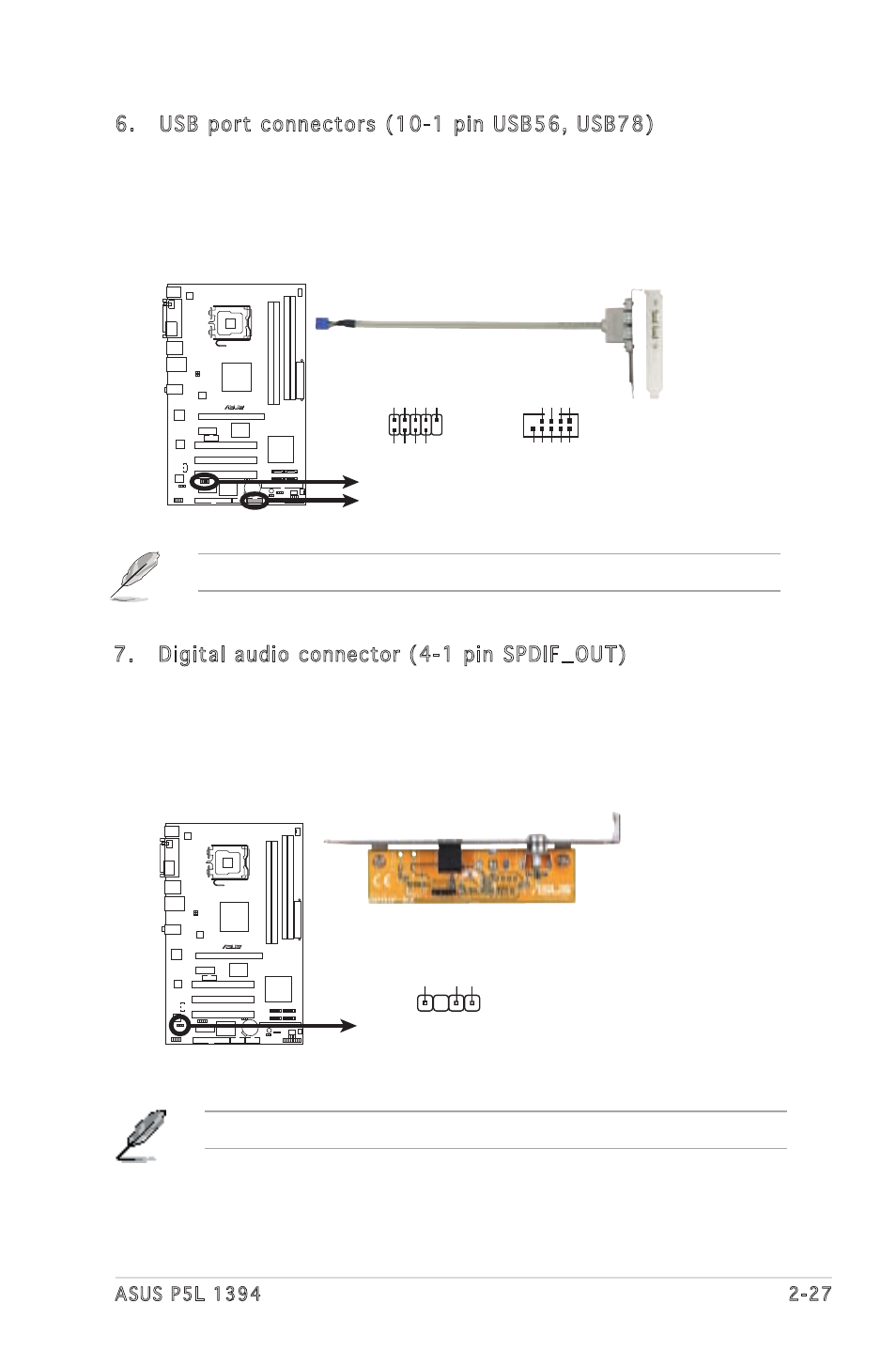

6. USB port connectors (10-1 pin USB56, USB78)
These connectors are for USB 2.0 ports. Connect the USB/GAME
module cable to any of these connectors, then install the module to a
slot opening at the back of the system chassis. These USB connectors
comply with USB 2.0 specification that supports up to 480 Mbps
connection speed.
P5
L 139
4
R
P5L 1394 USB 2.0 Connectors
USB56
USB+5V
GND
NC
USB+5V USB_P5
-
USB_P5
+
GND
USB_P6
-
USB_P6
+
1
USB78
USB+5V USB_P8- USB_P8+ GND NC
USB+5V USB_P7- USB_P7+
GND
1
7. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/
PDIF) port(s). Connect the S/PDIF Out module cable to this connector,
then install the module to a slot opening at the back of the system
chassis.
The S/PDIF module is purchased separately.
P5L
1394
R
P5L 1394 Digital Audio Connector
+5V SPDIFOU
T
GND
SPDIF_OUT
The motherboard do not bundle the module.
