12
Stereo - AT2002S, AT2402, AT2702S
INSTALLATION (continued)
To Connect External Equipment

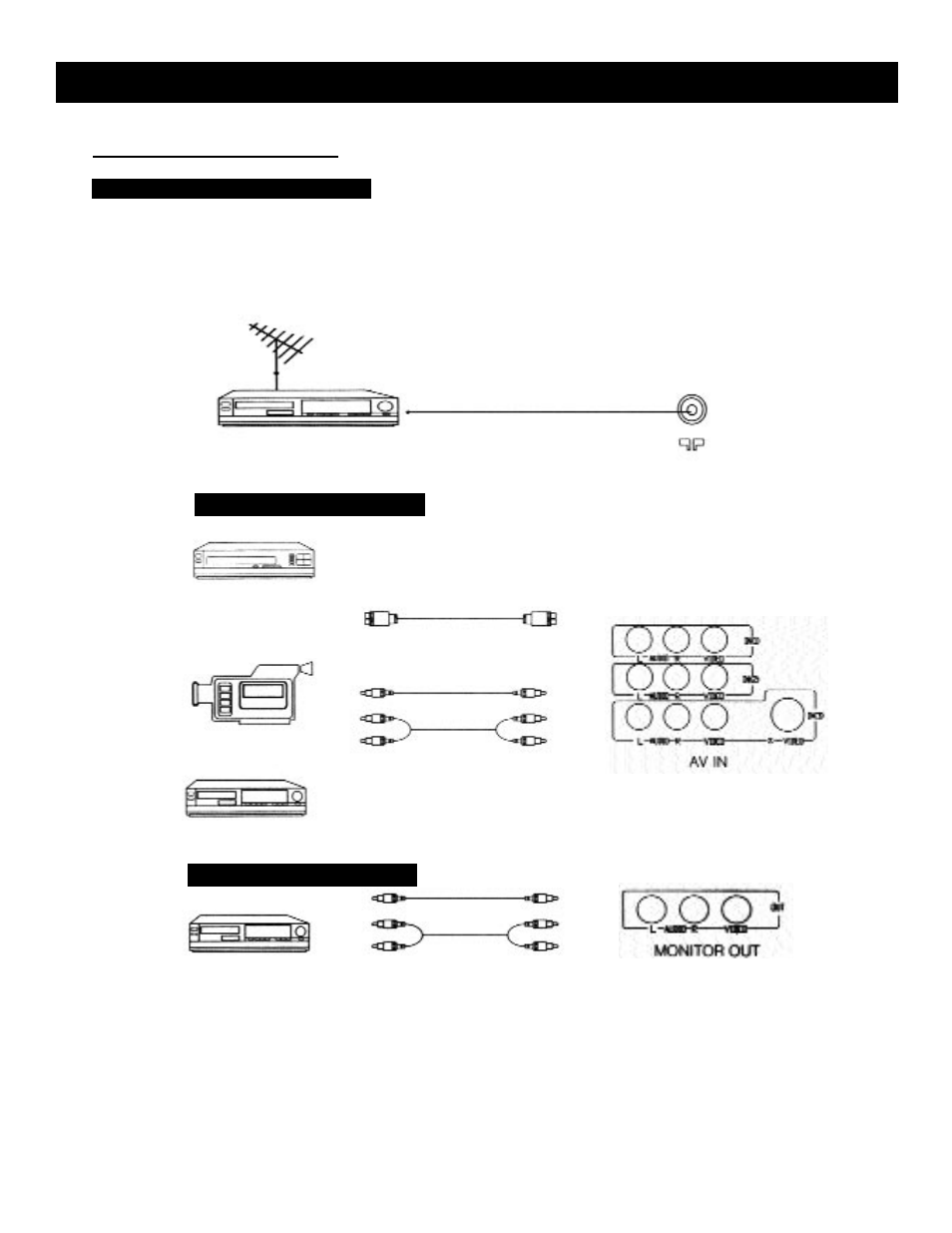

The following are diagrams showing basic instructions for attaching external equipment, like a VCR or DVD player, to
your TV set. Please refer to operation manuals of external audio/video equipment that will be connected to your set for
additional instructions. PLEASE TURN ALL POWER IS OFF BEFORE CONNECTING DEVICES TOGETHER.
Coaxial Cable
ANTENNA IN
Connect VCR's RF OUT terminal to the ANTENNA IN jack
located on the real panel of the TV.
Coaxial Cable
VCR with Modulator
AUDIO/VIDEO OUT
DVD Player
Camcorder
VCR
AUDIO/VIDEO IN
VCR
With S - VIDEO Terminal
VIDEO
Yellow
White
Yellow
White
Yellow
White
Yellow
White
ANTENNA IN
Do NOT connect the yellow composite video
terminal if using the S-Video terminal.
Actual back of TV may vary. Please see pgs.
9-12 for your TV’s back panel illustration.
Output From TV to Device
Input From Device to TV
The front or side terminals may be
easier to use with a camcorder.
The connections are identical.
OR
AUDIO
VIDEO
AUDIO
Red
Red Red
Red
