Text mode
Original mode

- 55 -

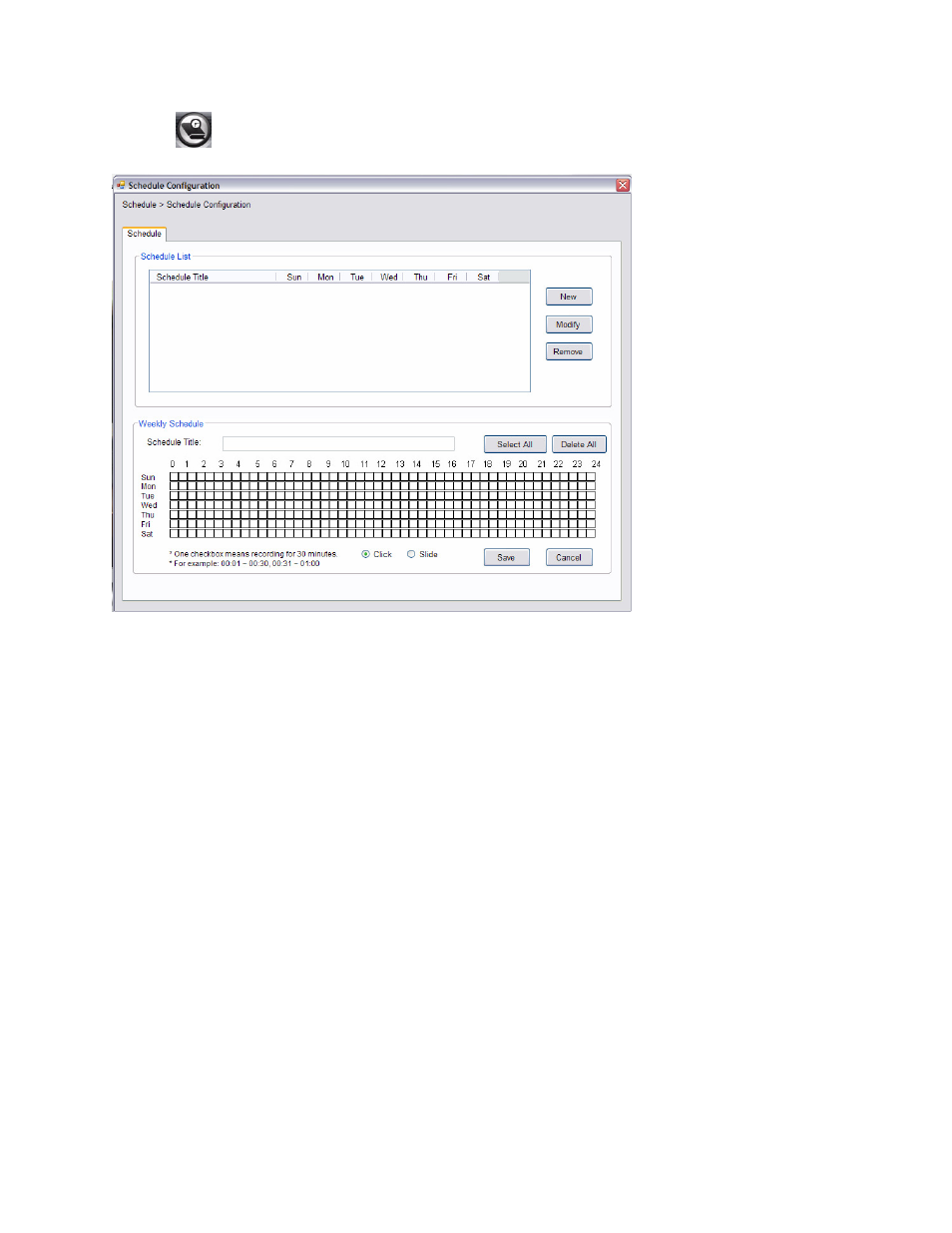

Click the

button to display the Schedule Configuration window, which allows you to configure the

recording schedule.

1. Click New, and then enter the Schedule Title.

2. Select the checkboxes below the Schedule Title to set the time to record video. One checkbox stands

for 30 minutes of recording time. You can choose to assign the single checkbox repeatedly by using
Click, or assign a period of time by using Slide. Alternately, you can quickly select/cancel the
checkboxes by clicking

Select All or Delete All.

3. When completed, click Save. The schedule profile will be added to the Schedule List.

4. To edit the schedule, select the desired schedule profile from the list, and then change the settings by

using the

Modify or Remove button.
