Page 28
- 28 -
GA-7VASFS-FS Motherboard
English

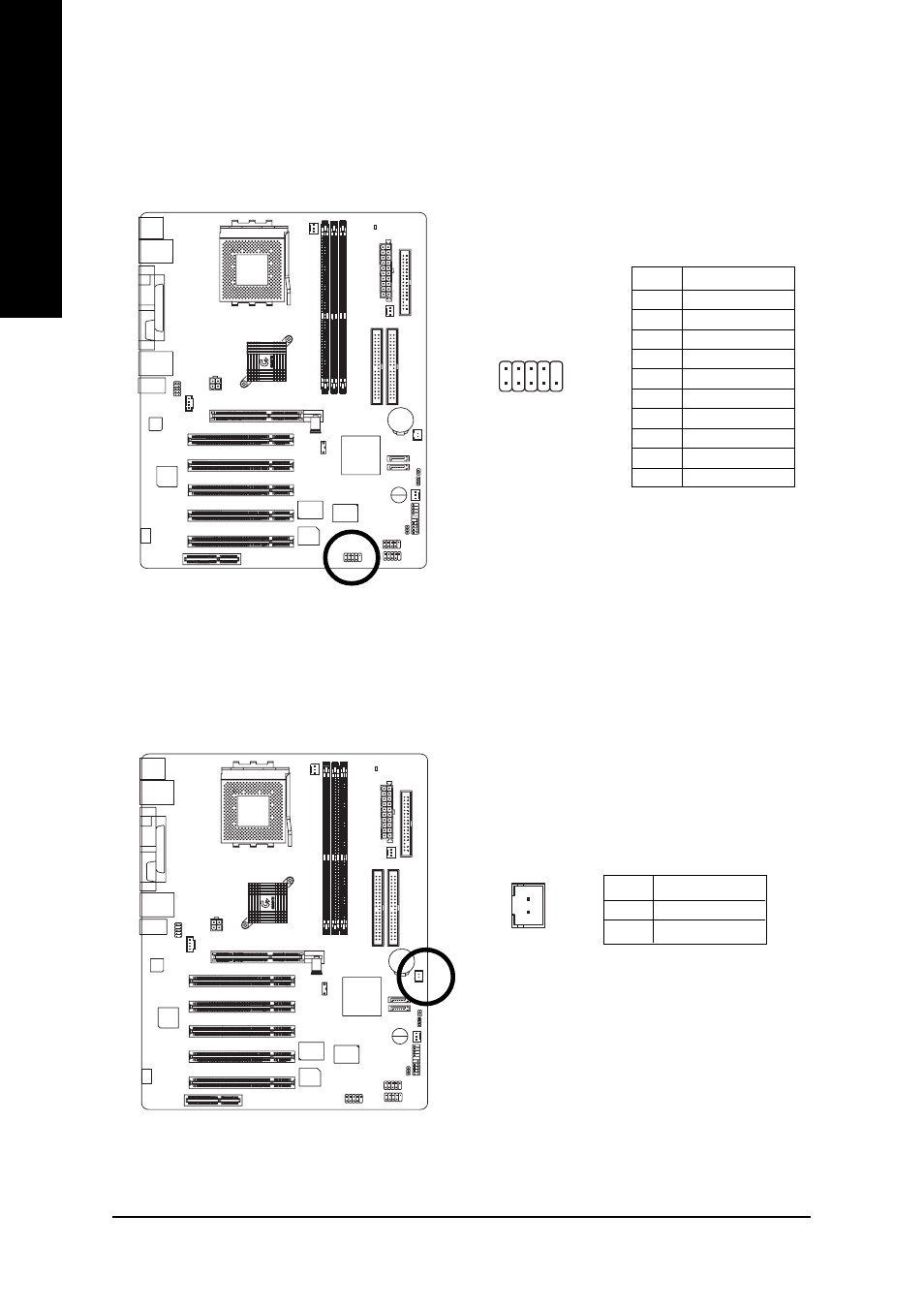

17) S_IRQ (Serial IRQ Connector)
This connector is for special design, for example: PCMCIA add on card.
Pin No. Definition
1
Signal
2
GND
16) F_1394 (IEEE 1394 Connector)
Please Note: Serial interface standard set by Institute of Electrical and Electronics Engineers, which
has features like high speed, high bandwidth and hot plug.
Pin No. Definition
1
NDCDB-
2
NSINB
3
NSOUTB
4
NDTRB-
5
GND
6
NDSRB-
7
NRTSB-
8
NCTSB-
9
NRIB-
10
No Pin
1
9
10
2
FS
FS
1
