Page 20
- 20 -
GA-7VASFS-FS Motherboard
English

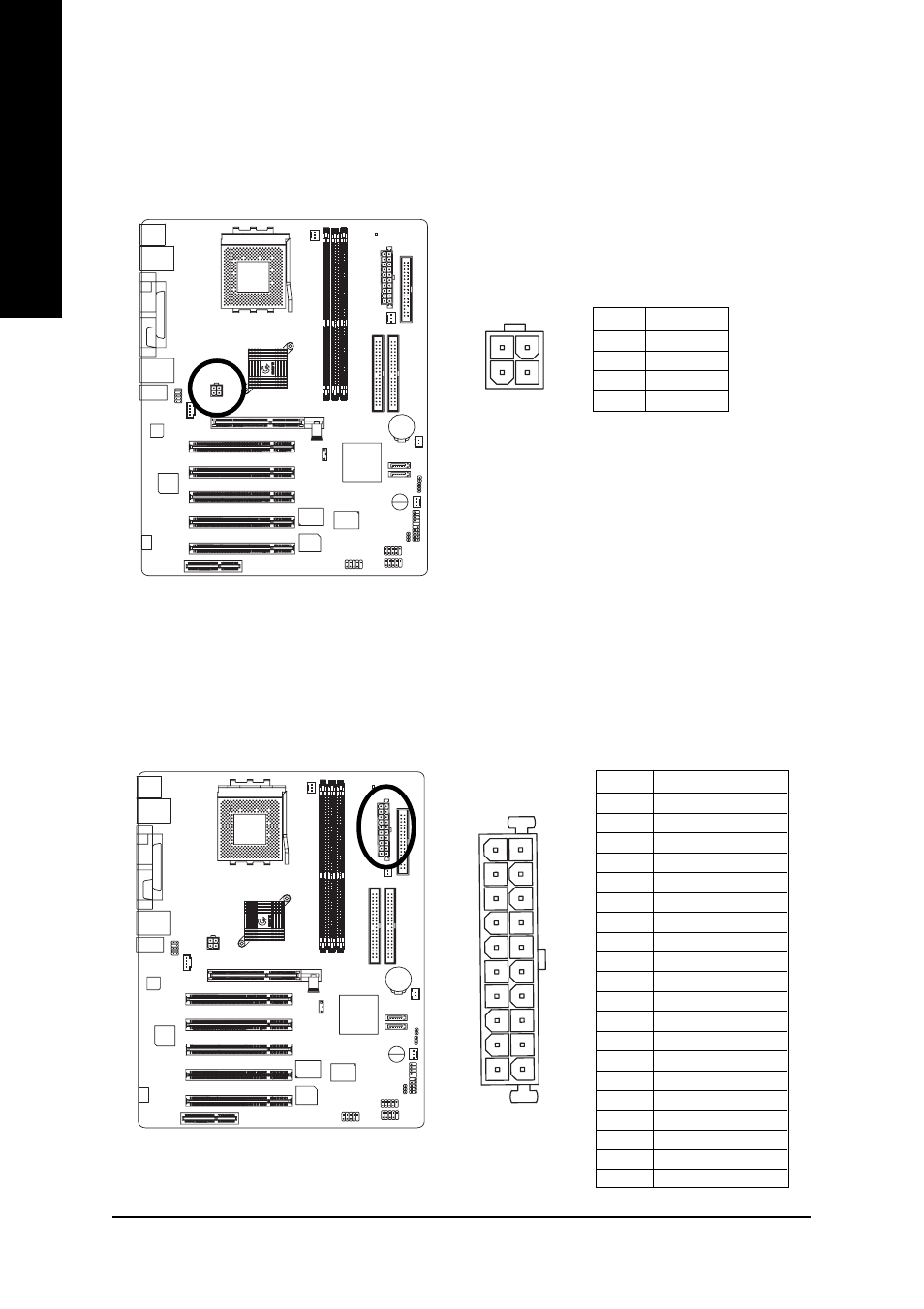

1) ATX_12V (+12V Power Connector)
This connector (ATX _12V) suppliesthe CPU operation voltage (Vcore). If this " ATX_ 12V connector" is
not
connected, system cannot boot.
Pin No. Definition
1
GND
2
GND
3
+12V
4
+12V
2) ATX (ATX Power)
AC power cord should only be connected to your power supply unit after ATX power cable and other
related devices are firmly connected to the mainboard.
Pin No.
Definition
1
3.3V
2
3.3V
3
GND
4
VCC
5
GND
6
VCC
7
GND
8
Power Good
9
5V SB(stand by +5V)
10
+12V
11
3.3V
12
-12V
13
GND
14
PS_ON(softOn/Off)
15
GND
16
GND
17
GND
18
-5V
19
VCC
20
VCC
3
1
4
2
FS
FS
1
10
20
11
