Connect the audio jacks.
If your DVD or Super Audio CD player is equipped with multi channel output jacks, you can connect
it to this receiver’s MULTI CH IN jacks to enjoy the multi channel sound. Alternatively, the multi
channel input jacks can be used to connect an external multi channel decoder.
For details on the required cords (A
H), see page 7.
Tip
This connection also allows you to enjoy software with multi-channel audio recorded in formats other than the Dolby
Digital, and DTS.

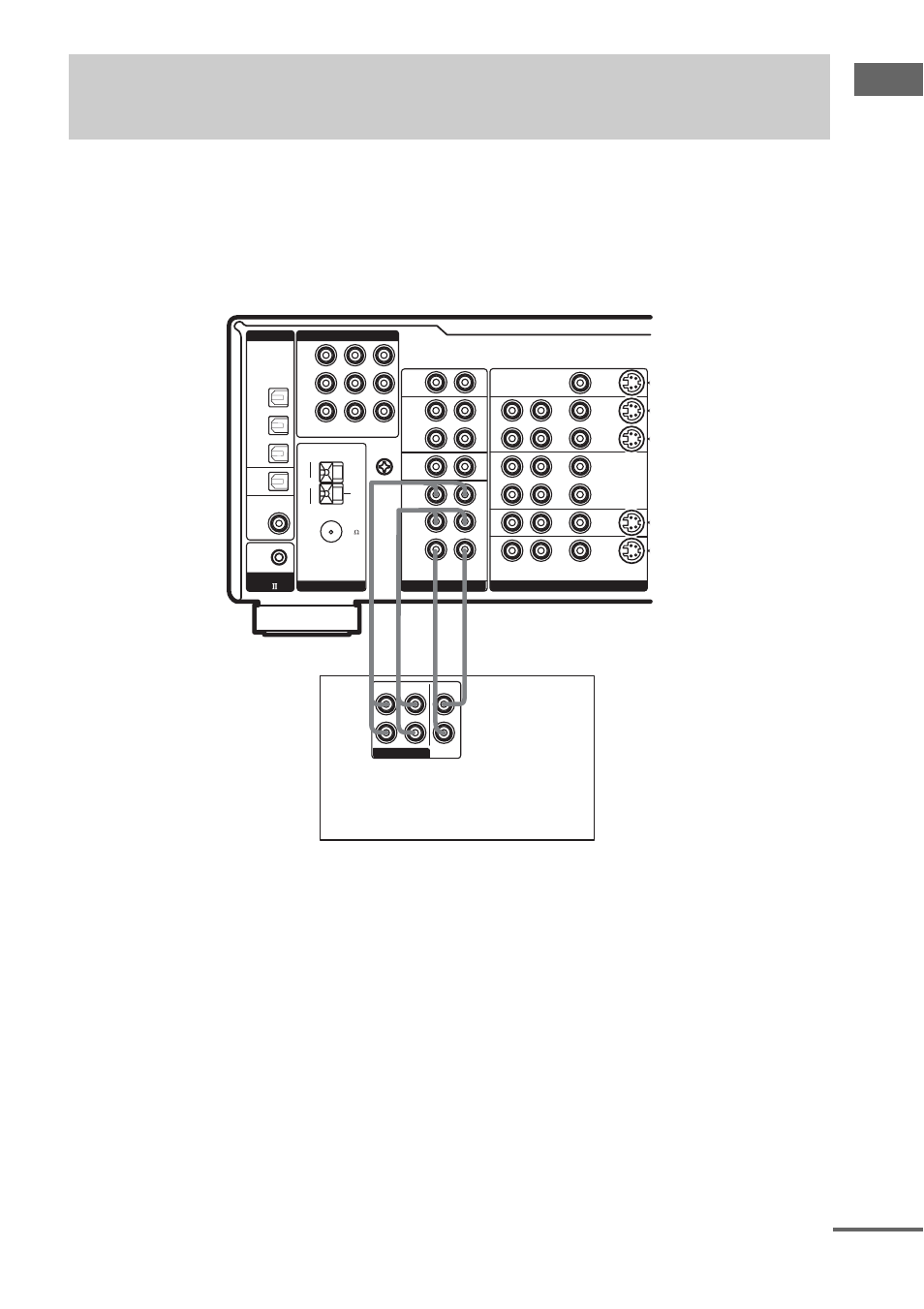

1b: Connecting components with multi channel output
jacks
