28

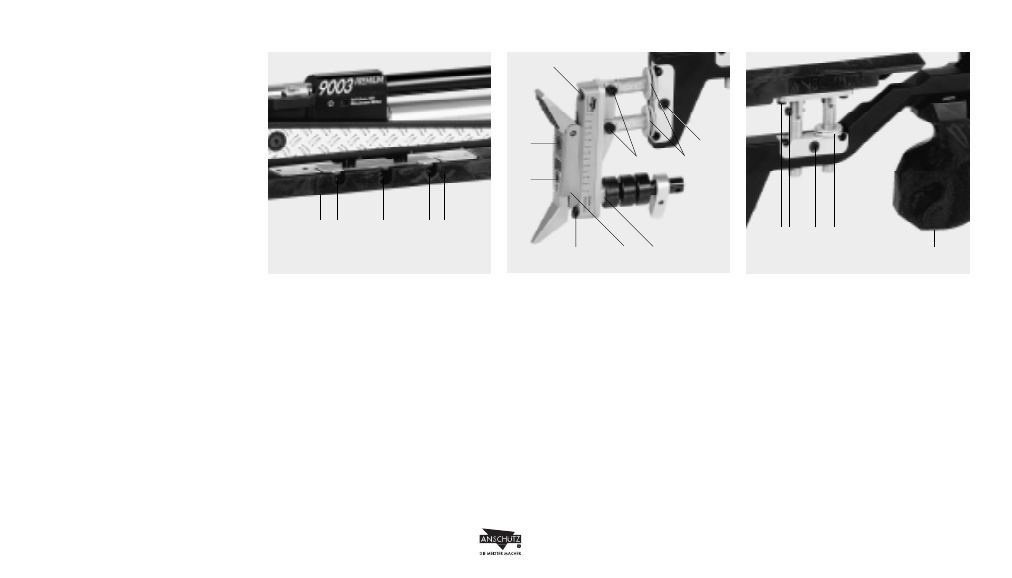

Stock adjustment

Stock

The stock can be adjusted in the following
ways:

- in height via screw No. 1
- horizontally via screw No. 2
- in length via screw No. 3

Each adjustment is carried out by seperate
clamping device.

Cheek piece butt plate and adjustment

The cheek piece and butt plate adjustment
offers many adjusting possibilities to adjust the
air rifle to your individual requirements. To do
this loosen the screw in the guide and move
the carrier into the desired height and length.
The nut serves as a stop to fix the position.

1 Upper slope at shoulder
2 Height and angle adjustment of butt plate
3 Horizontal adjustment of butt plate
4 Height adjustment of hook
5 Thread for weight carrier
6 Vertical adjustment of butt plate
7 Stop nut
8 Length adjustment of butt plate

9 Horizontal adjustment cheek piece

10 Slope cheek piece

11 Height adjustment of cheek piece

12 Stop nut
13 Adjustment of pistol grip:

The grip can be turned, pushed and tilted
in all directions

Subsequently tighten the screw again. You
can adapt the PRO grip parts according to
your requirements. The PRO grip material can
be shaped like wood. If you do not agree
with the surface of the cheek piece you can
smoothen it with the help of fine abrasive
paper (grain 200).

Adjustment of grip

By loosening the grip screws the pistol grip
can be turned and tilted in all directions and
it can be adjusted in length. After the
adjustment of the grip the screws must be
tightened again.

1

2

3

2

3

Stock

Butt plate

Cheek piece

1

2

3

4

6

7

8

11

5

3

It is also not allowed to use such a
compressed air cylinder or to store it. Please
therefore strictly observe the instructions for
the filling of the compressed air cylinder and
the corresponding technical rules of your
country.

910 11 12

13

Cheek piece
