95 US

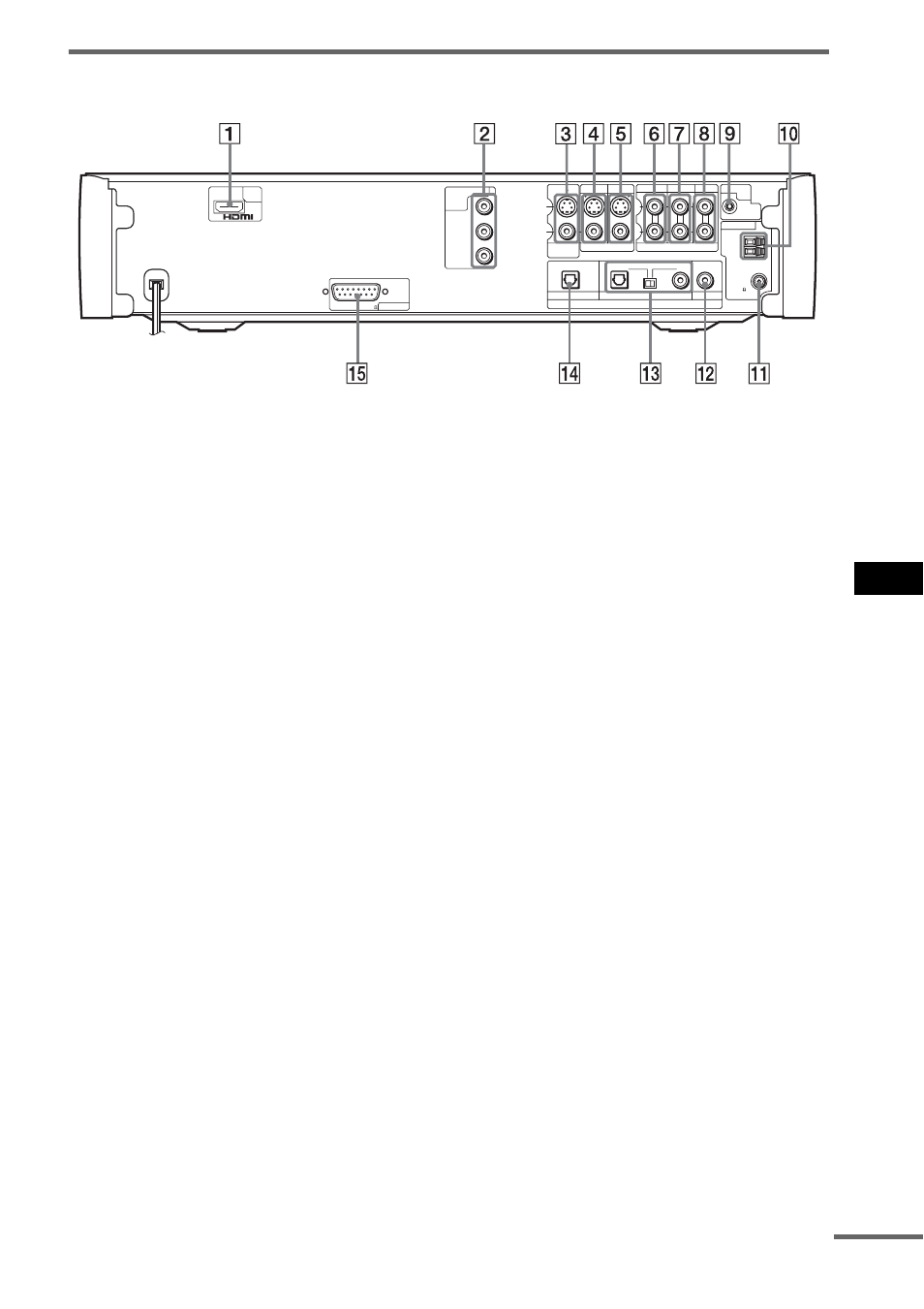

Rear panel
A HDMI OUT jack (23)
B COMPONENT VIDEO OUT jacks (23)
C
MONITOR OUT (S VIDEO/VIDEO) jacks
(23)
D VIDEO1 (VIDEO IN, S VIDEO/VIDEO)
jacks (28)
E VIDEO2 (VIDEO IN, S VIDEO/VIDEO)
jacks (28)
F VIDEO1 (AUDIO IN L/R) jacks (28)
G VIDEO2 (AUDIO IN L/R) jacks (28)
H
TV (AUDIO IN L/R) jacks (11)
I A.CAL MIC jack (19, 73)
J AM terminal (11)
K
FM 75
Ω
COAXIAL jack (11)
L VIDEO2 (DIGITAL IN COAXIAL) jack
(28)
M VIDEO1 (DIGITAL IN COAXIAL/
OPTICAL) jacks (28)
N TV (DIGITAL IN OPTICAL) jack (23)
O SPEAKER jacks (11)
VIDEO1
VIDEO1
COAXIAL COAXIAL
ECM-AC1
75
COAXIAL
OPTICAL OPTICAL
VIDEO1
S VIDEO Y
P B /C B
P R /C R
L
R VIDEO
AUDIO IN
A.CAL
MIC
DIGITAL IN
ANTENNA
HDMI
OUT
VIDEO IN MONITOR
OUT
COMPONENT
VIDEO
OUT
VIDEO2
VIDEO2
AM
FM
VIDEO2 TV
TV
IMPEDANCE USE 4 SPEAKER
continued
