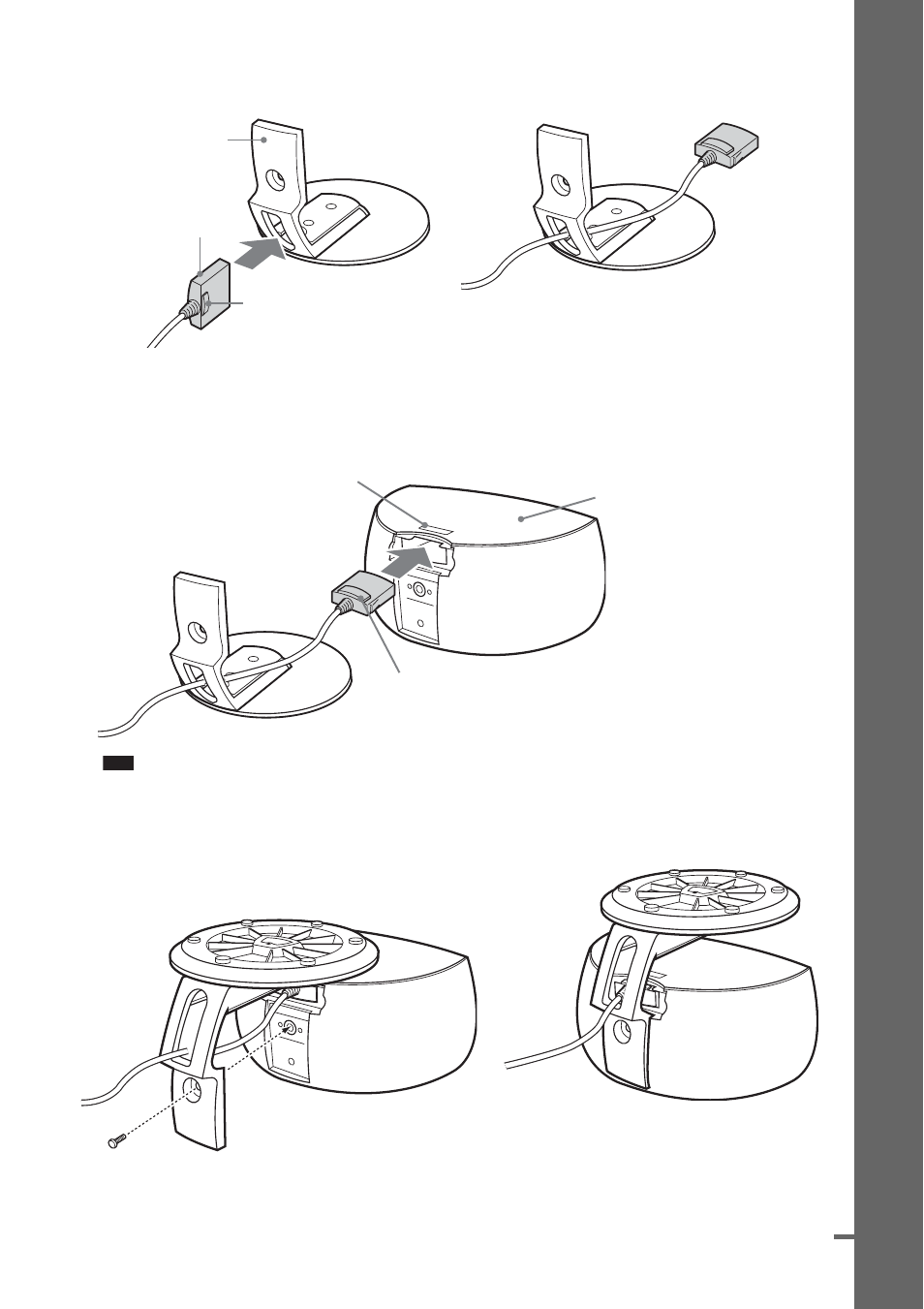

Draw the speaker jack through the hole of the speaker stand.
The speaker stands are identical, and either can be used for the left or right speaker.
3
Turn the speaker upside down, and connect the speaker jack to the front speaker.
Connect the LEFT jack to the left speaker and the RIGHT jack to the right speaker.
Note
• Exercise care to avoid scratching on the top of the speaker.
4
Turn the speaker stand upside down, and secure the speaker stand to the speaker with
the screw.
k
LEFT: For the left speaker
RIGHT: For the right speaker
Speaker stand
Speaker jack
Bottom of the speaker
Speaker jack
LEFT: For the left speaker
RIGHT: For the right speaker
Label
FRONT L (white): Left speaker
FRONT R (red): Right speaker
k
Screw
continued
