To connect a sub-woofer unit
Certain VAIO ® computer models are supplied with a sub-woofer unit which requires a slightly different setup. See your
computer's specifications sheet for information about supplied accessories.
1. Insert the mini stereo plug of the cable that is attached to the right speaker into the speaker jack, located on
the left side of the sub-woofer unit.

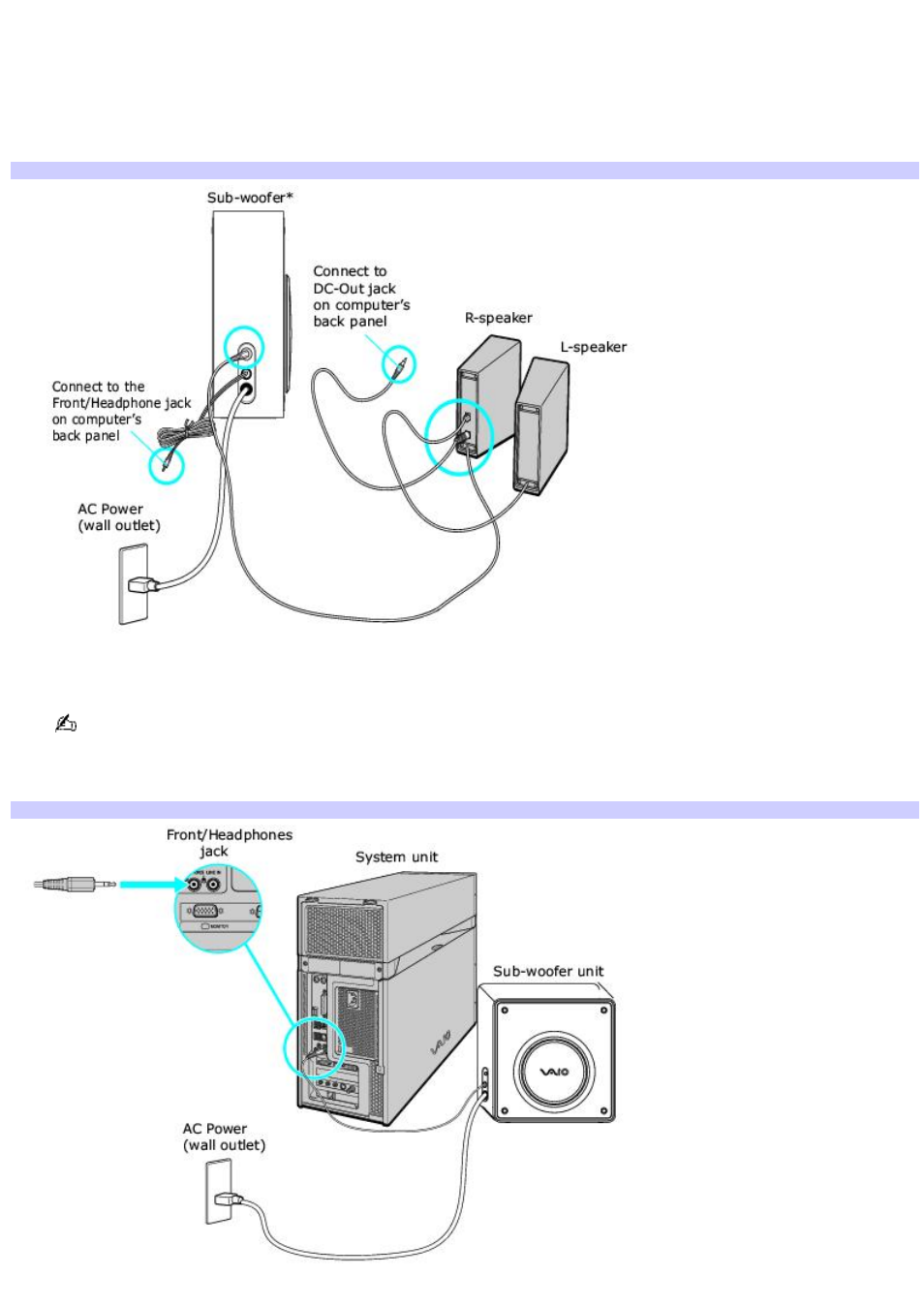

To connect the speakers and sub- woofer unit
2. Insert the mini stereo plug from the sub-woofer unit's cable into the Headphones jack, located on the back panel
of your computer.
You can also plug the sub-woofer's mini stereo plug into the headphones jack located on the lower front panel of
your computer.
3. Plug the sub-woofer unit's power cord into a grounded AC wall outlet or power strip.
To connect the sub- woofer to the com puter
Page 30
