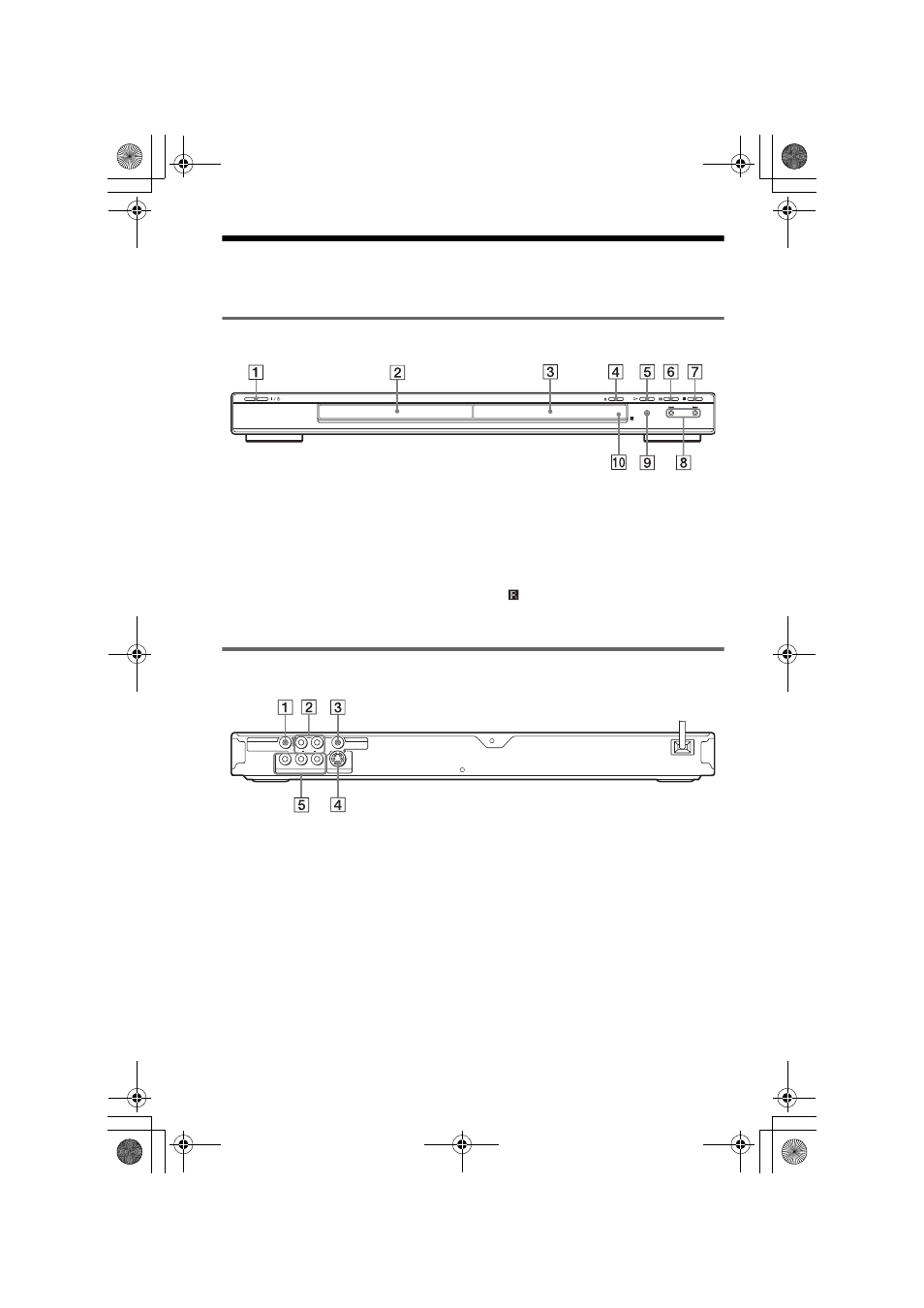

Index to Parts and Controls

For more information, see the pages indicated in parentheses.

Front panel

A [/1 (on/standby) button (24)
B Disc tray (24)
C Front panel display (11)
D A (open/close) button (24)
E H (play) button (24)
F X (pause) button (25)

G x (stop) button (25)
H ./> (previous/next) buttons (34)
I PROGRESSIVE button/indicator (19)

Lights up when the player outputs
progressive signals.

J

(remote sensor) (16)

Rear panel

A DIGITAL OUT (COAXIAL) jack (20)
B LINE OUT L/R (AUDIO) jacks (20)
C LINE OUT (VIDEO) jack (17)

D S VIDEO OUT jack (17)
E COMPONENT VIDEO OUT jacks

(17)

AUDIO

R

L

P

R

Y

P

B

VIDEO

COAXIAL

LINE OUT

COMPONENT VIDEO OUT

DIGITAL OUT

S VIDEO OUT
