CONTROLS AND FUNCTIONS

10. Stylus Headshell -

The included headshell is used to connect your sty-

lus with the tone arm.

11. Headshell Locking Nut -

After attaching the headshell to the tonearm, this

locking nut will securely hold the headshell to the

tonearm.

12. Tone Arm -

The tonearm is the mechanism that holds the head-

shell and stylus allowing it to glide across a record.

13. Tonearm Clamp and Rest -

Use this rest to safely hold the tonearm in position

during non use and transportation.

14. Tonearm Lever -

This lever is used to safely elevates the tone arm

above a record surface without endangering a

records surface.

15. Anti-Skate Control -

The anti-skate applies inward force to the tonearm to

prevent outward skipping across the record due to

the centrifugal force cause by platter rotation. The

anti-skate value should be equally to that of the sty-

lus counterweight pressure.

16. Counterweight -

The counterweight adjustment applies the proper

downward pressure on the stylus.

American Audio

- www.americanaudio.us - TT-Record™ Instruction Manual Page 14

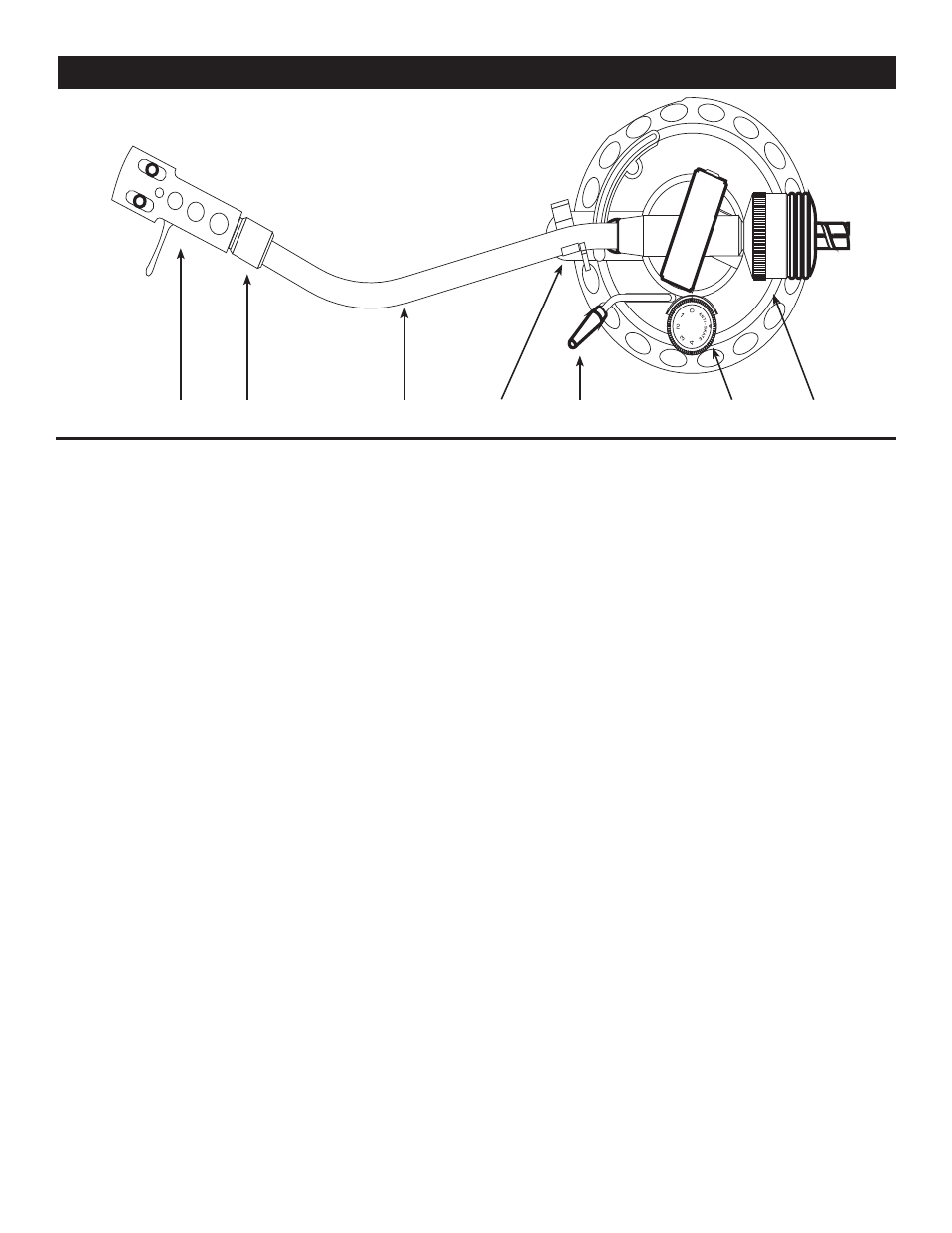

Tonearm Assembly
