AXIS 233D - Product Overview

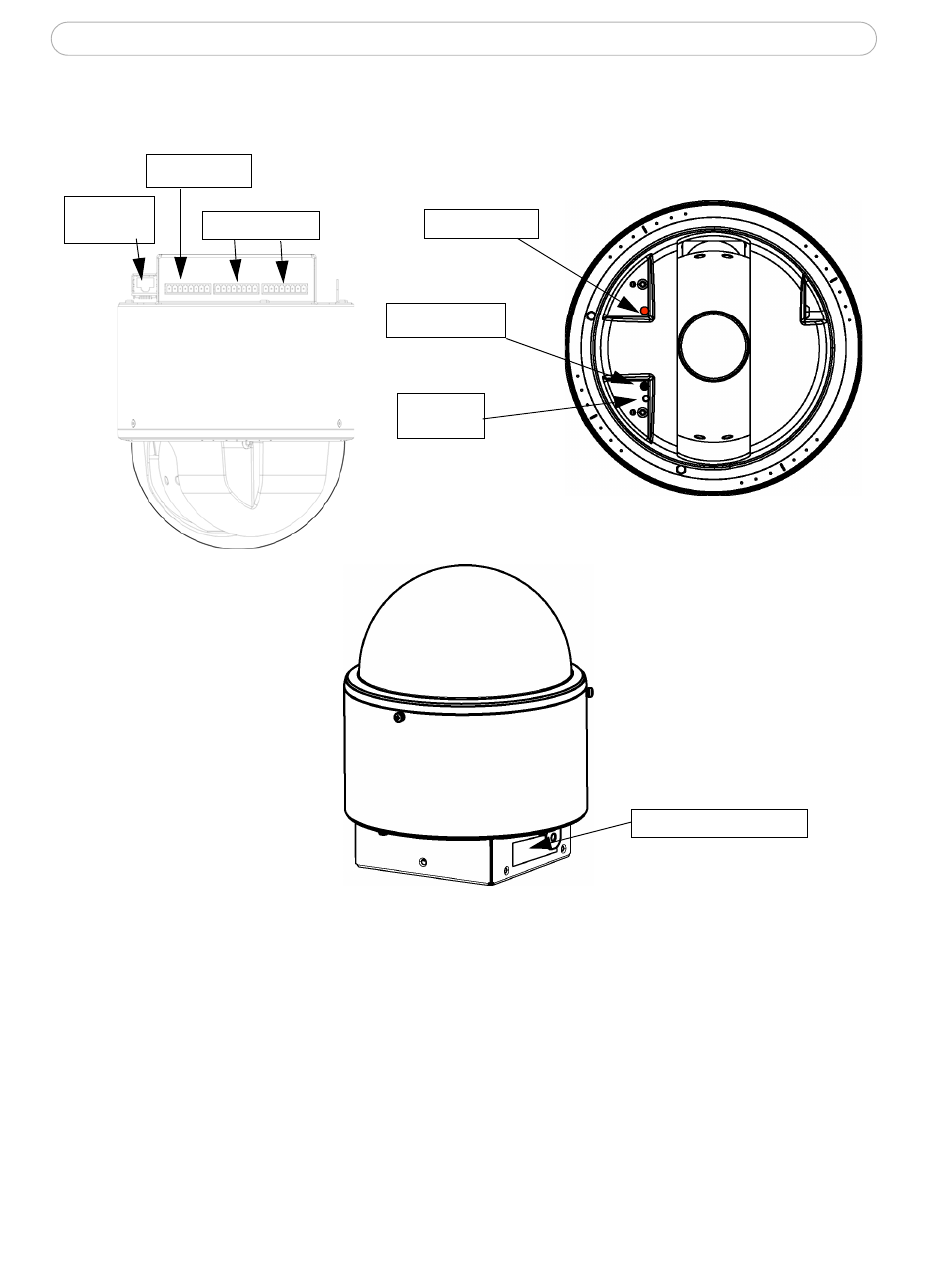

Overview
Network
Restart button
Control button
Indicator
Status LED
Power/Audio
I/O terminal
Connector
Serial number label
Network connector - The AXIS 233D connects to the network via a RJ-45 Ethernet
connector. Using shielded cables is recommended.
Power/Audio connector - for connecting power supply and audio. See Power connections,
I/O terminal connectors - The AXIS 233D has 3 (8 pin) I/O terminal connectors that
provide the physical interface to four solid state relay outputs, 4 alarm inputs, auxiliary
power and ground. See I/O terminal connector blocks, on page 54
