You can enjoy other component by connecting the VIDEO/AUDIO OUT jacks of another component.
Connecting the system and the other component
Outputs the other component through the speakers of this system.

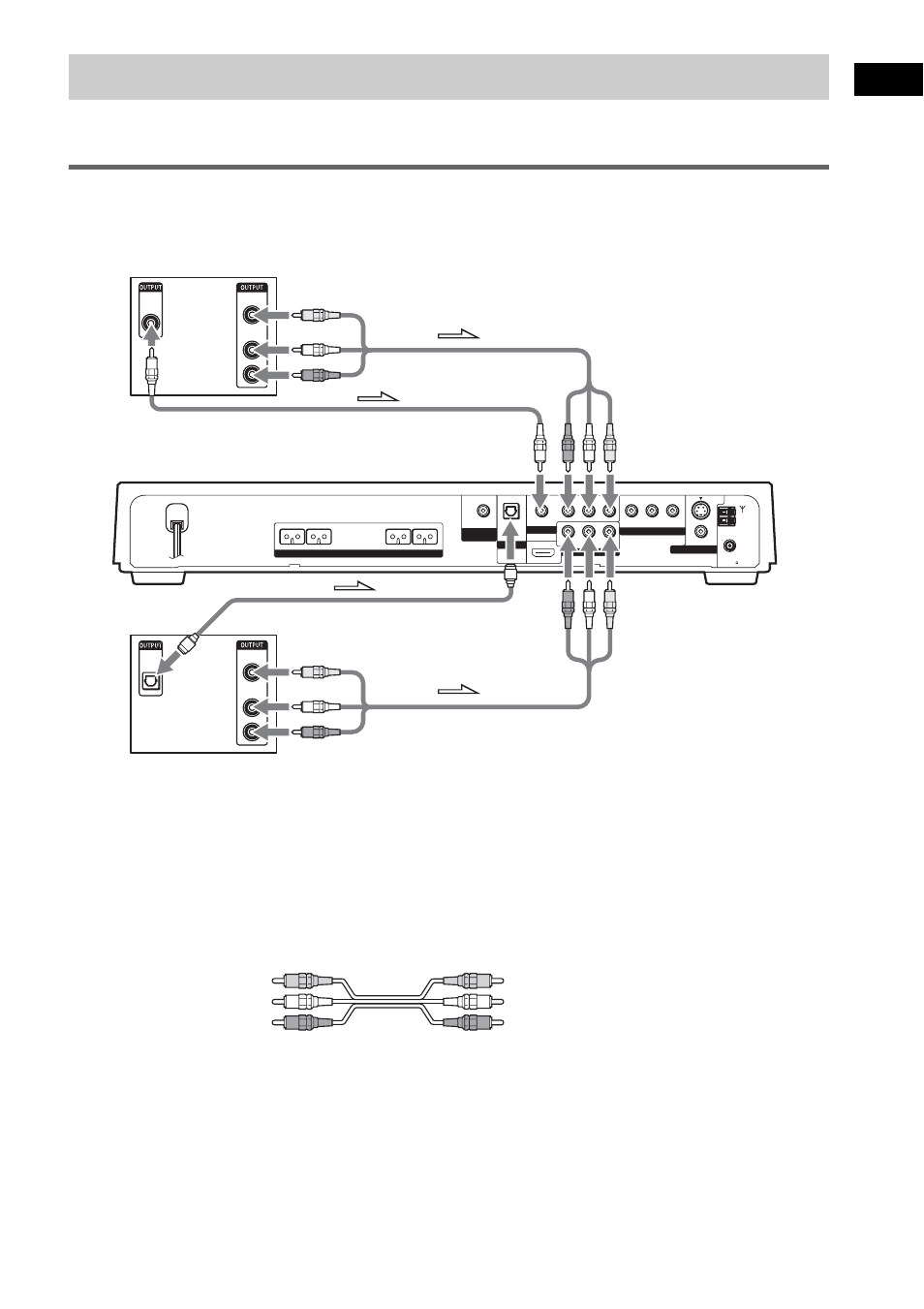

To connect the VIDEO/AUDIO OUT jacks of other component to the
VIDEO 1 or VIDEO 2 (VIDEO/AUDIO IN) jacks of this system
Connect the VCR or other components to the VIDEO 1 or VIDEO 2 (VIDEO/AUDIO IN) jacks using
the video/audio cord (not supplied). When connecting a cord, be sure to match the color-coded sleeves
to the appropriate jacks on the components.
If you connect a digital satellite receiver with an DIGITAL OUT
(COAXIAL or OPTICAL) jack
The digital satellite receiver can be connected to the VIDEO 1 COAXIAL IN or VIDEO 2 OPTICAL
DIGITAL IN jack instead of the VIDEO 1 or VIDEO 2 AUDIO IN jacks of the system.
The system can accept both the digital and analogue signals. Digital signals have priority over analogue
signals. If the digital signal ceases, the analogue signal will be processed after 2 seconds.
Step 4: Other Component Hookup
R
AUDIO
OUT
L
VIDEO
OUT
R
AUDIO
OUT
L
VIDEO
OUT
COAXIAL
DIGITAL
OUT
OPTICAL
DIGITAL
OUT
COAXIAL IN
(DVD ONLY)
AUDIO IN
R L
R L
AUDIO IN
VIDEO IN
VIDEO IN
COAXIAL
AM
FM 75
SPEAKER
VIDEO 2
DIR-T1
VIDEO 2
COMPONENT VIDEO OUT
OUT
HDMI MONITOR OUT
VIDEO 1
DIGITAL IN
OPTICAL
(DVD ONLY) VIDEO
(DVD ONLY) S VIDEO Y P B /C B P R /C R
FRONT R FRONT L CENTER WOOFER
VCR
To VIDEO 1
(VIDEO/AUDIO IN)
Digital satellite receiver or
PlayStation 2, etc.
To VIDEO 2
(VIDEO/AUDIO IN)
To VIDEO 1
(COAXIAL IN)
To VIDEO 2
(OPTICAL DIGITAL IN)
Yellow (Video)
White (L/audio)
Red (R/audio)
