SP-TUNE User Manual
4
Fig. 1 IR Remote Function
ON Switch Power on
STBY Switch Power off
ENTER Select option in menu
Also finishes input in dialog panels
VOLUME + Raises volume level
VOLUME - Lowers volume level
ARROWS When menu active – move the cursor
up/down/left/right
CHROMA Exit the current menu or dialog
ID OFF Displays the Menu
CONTRAST + Channel Up
CONTRAST - Channel Down
0..9, digits When no dialog input active – directly enter
tuner channel number to switch to.
When dialog input active – enter digits.
4 Quick Start Guide
1. Make sure the SP-TUNE unit and the Sony Display are both disconnected from power.

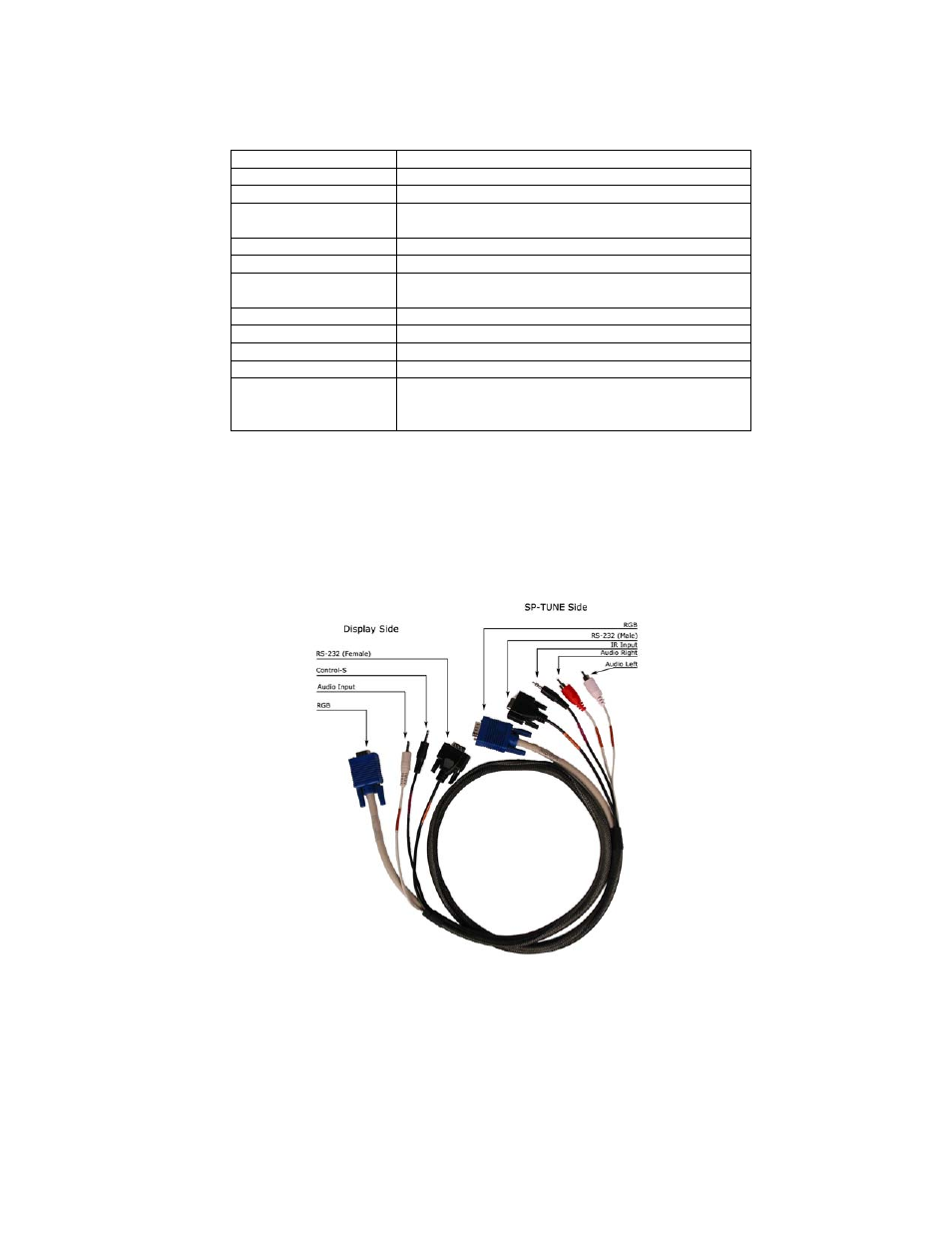

2. Connect the SP-TUNE unit to the Sony Plasma Display using the supplied cable harness. Each
cable on the harness is labeled for the appropriate connection. Make certain to plug the Control
S phono connector into the Control S output of the display.
3. Connect the appropriate video source to input connectors of SP-TUNE (see “Connections”
chapter for details).
4. Connect audio input/output to the 8-pin mini-DIN connector of SP-TUNE (see “Connections”
chapter for details).
5. The RJ11 should be left unconnected as it is for Sony service purposes only. Warning: Damage
may occur if plug into a phone line or other RJ-11 connectors unintended for the port. This will
void the warranty.
