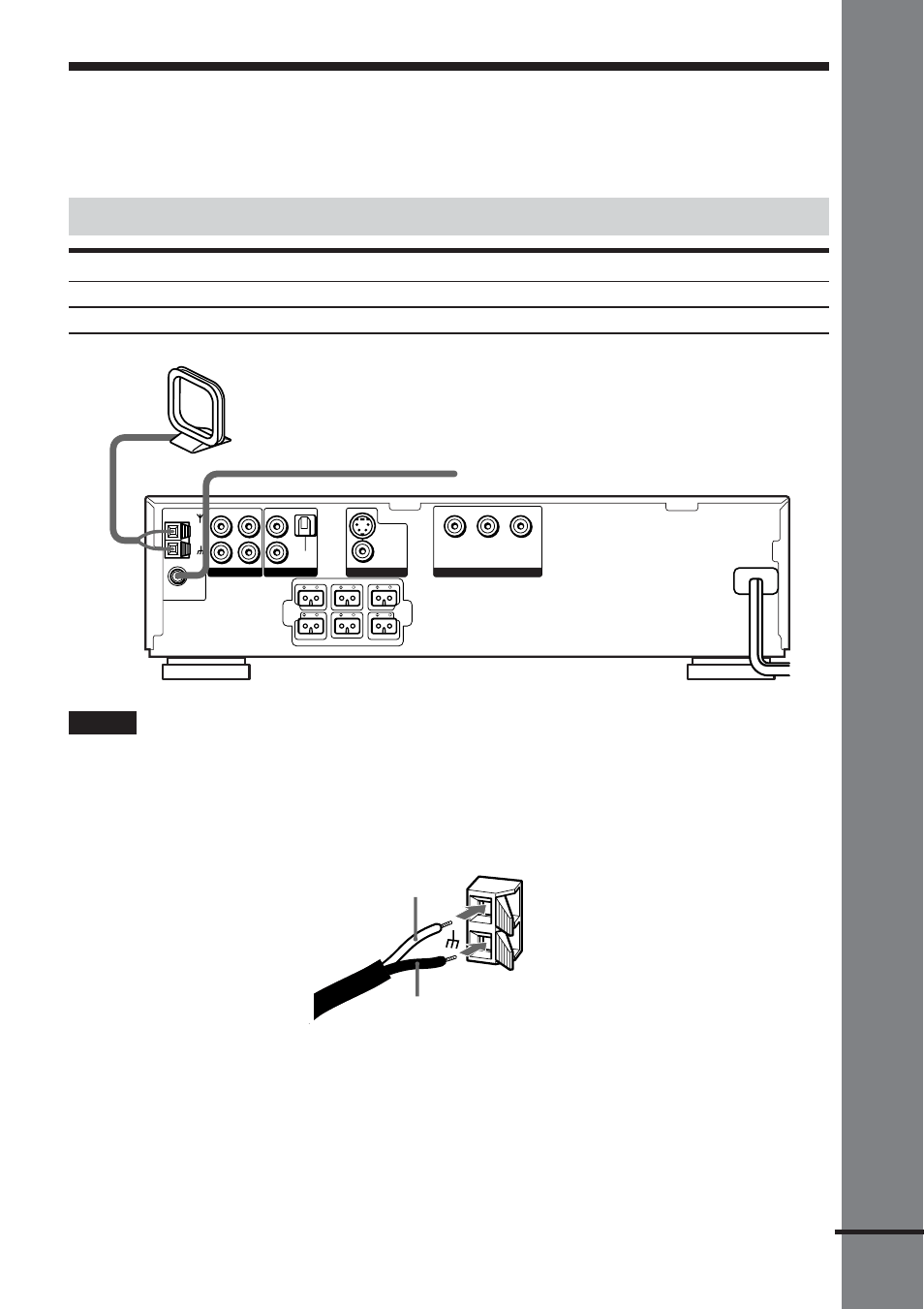

Step 2: Antenna Hookups

Connect the supplied AM/FM antennas to listen to the radio.

Terminals for connecting the antennas

Connect the

To the

AM loop antenna

AM terminals

FM wire antenna

FM 75

Ω COAXIAL terminal

Notes

• To prevent noise pickup, keep the AM loop antenna away from the system and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
• When you connect the supplied AM loop antenna, connect the black cord (B) to the U terminal, and the white

cord (A) to the other terminal. (Only for US models.)

OUT

I N

O P T I C A L

D I G I T A L

I N

V I D E O

S V I D E O

( DVD ONLY)

/ C

FRONT R

FRONT L

CENTER

S P E A K E R

REAR R

REAR L

WOOFER

COAXIAL

Ω

AUDIO 1

AUDIO 2

MONITOR OUT

COMPONENT VIDEO OUT

AM loop antenna

FM wire antenna

continued
