Sony DAV-C450 - Manual (Page 13)

13 GB
1 AM antenna (21)
2 AUDIO 1 jacks (23)
3 AUDIO 2 jacks (23)
4 DIGITAL IN (OPTICAL) jack (24)
5 MONITOR OUT (VIDEO/S VIDEO)
jacks (23)
6 COMPONENT VIDEO OUT jacks (23)
7 SPEAKER jacks (19)
8 FM 75Ω COAXIAL antenna jack (21)

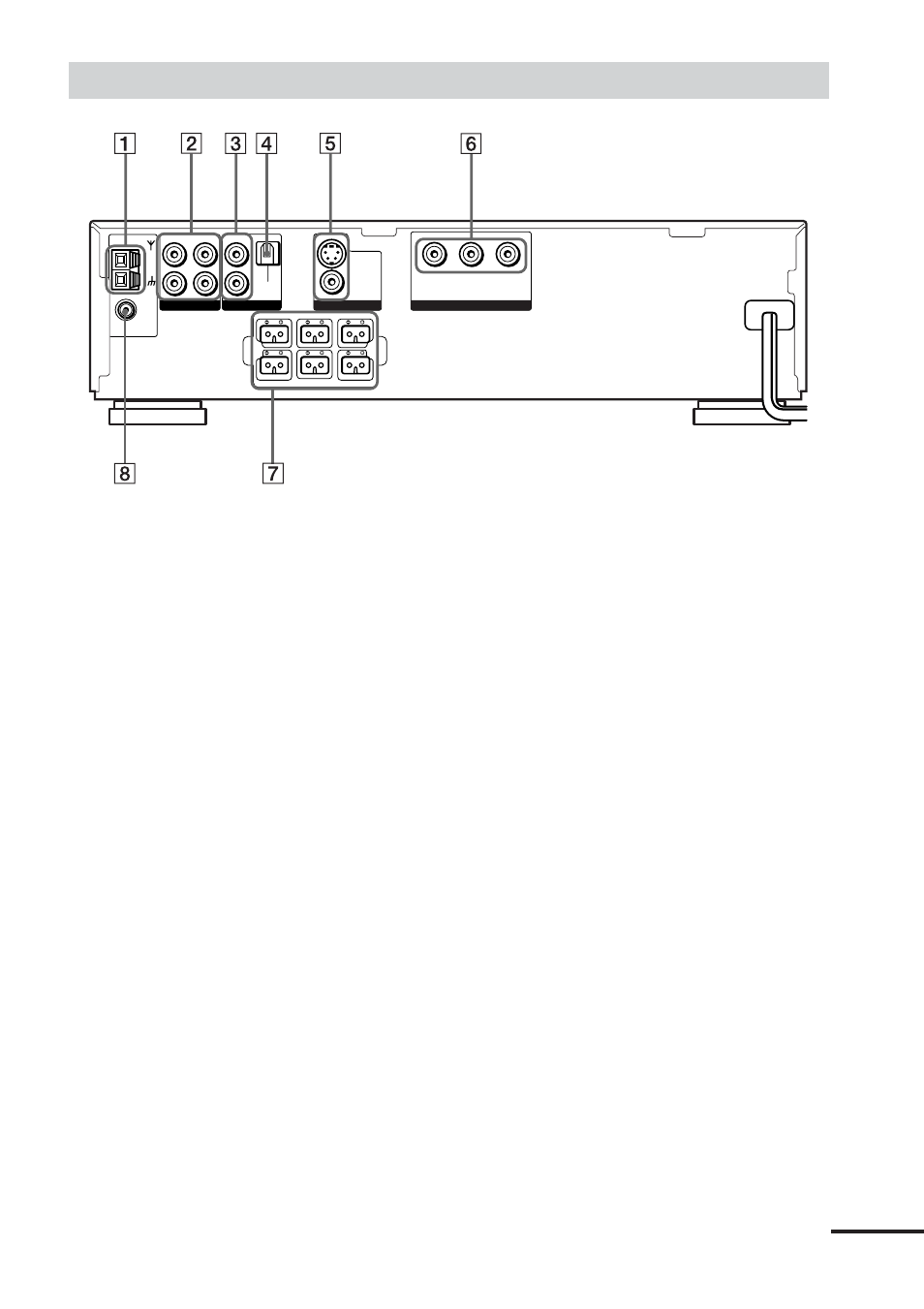

Rear Panel
OUT I N
L
R
I N
L
R O P T I C A L
D I G I T A L
I N
V I D E O
S V I D E O
( DVD ONLY)
Y P B / C B P R / C R
FRONT R FRONT L CENTER
S P E A K E R
REAR R REAR L WOOFER
COAXIAL
AM
FM
75 Ω
AUDIO 1 AUDIO 2 MONITOR OUT COMPONENT VIDEO OUT
continued
