14
KV-27FS120
4-101-456-22(1)
Co
nnections

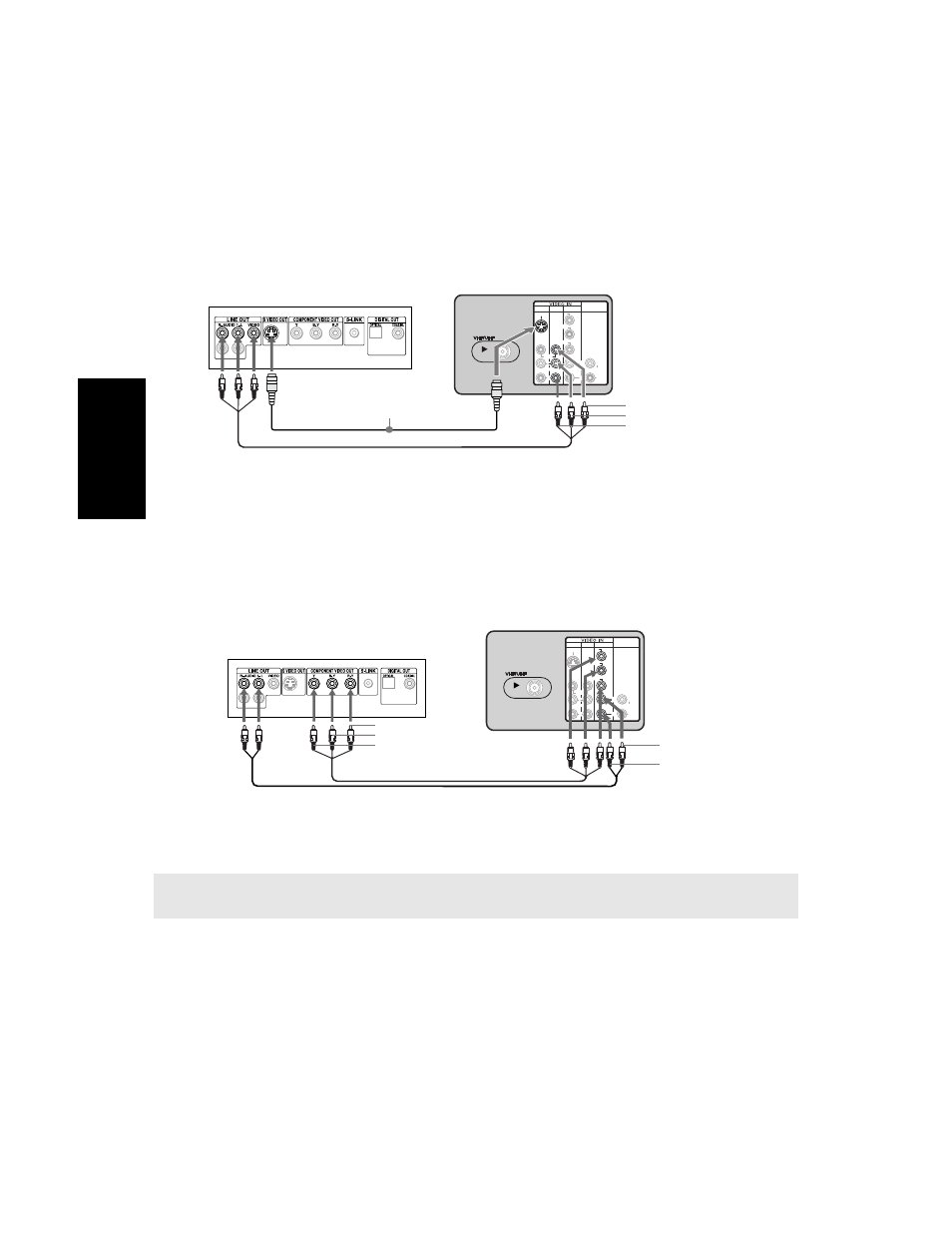

Connecting a DVD Player using Composite Video (VIDEO/AUDIO L(MONO),R)
Using audio/video cables (not supplied), connect AUDIO/VIDEO OUT on your DVD player
to AUDIO/VIDEO IN on your TV.
Optional connection
❏
For better picture quality, use S VIDEO (located on the rear panel), instead of the yellow
video cable. S VIDEO does not provide sound, so you still must connect the audio cables.
Connecting a DVD Player using Component Video (YP
B
P
R
/R, L)
If your DVD player is equipped with component video outputs (YP
B
P
R
), you can improve the
picture quality by using component video cables (480i only).
1
Using component video cables (not supplied), connect the YP
B
P
R
OUT on your DVD
player to YP
B
P
R
IN on your TV.
2
Connect AUDIO OUT on your DVD player to AUDIO IN on your TV.
✍
The YP
B
P
R
outputs on your DVD player are sometimes labeled Y, C
B
, and C
R
or Y, B-Y, and R-Y. If so,
connect the cables to like colors.
1
3
4
AUDIO OUT
(VAR/FIX)
VIDEO
L
(MONO)
R
L
R
(MONO)
S VIDEO
Y
P
B
P
R
L
R
Rear of TV
Rear of DVD Player
Video (yellow)
Audio L (white)
Audio R (red)
Optional connection
1
3
4
AUDIO OUT
(VAR/FIX)
VIDEO
L
(MONO)
R
L
R
(MONO)
S VIDEO
Y
P
B
P
R
L
R
Rear of DVD Player
2
1
Rear of TV
Audio L (white)
Audio R (red)
P
R
(red)
P
B
(blue)
Y (green)
