Additional Information for Using Sony Wall-Mount Bracket (SU-WL100)
9 Adjust the angle of the Mounting Hook.
Refer to the Instructions for SU-WL00.
10 Secure the Mounting Hook to the right side of the rear of the TV.
Refer to the Instructions for SU-WL00.
Secure it to the TV using two screws (supplied with SU-WL00).

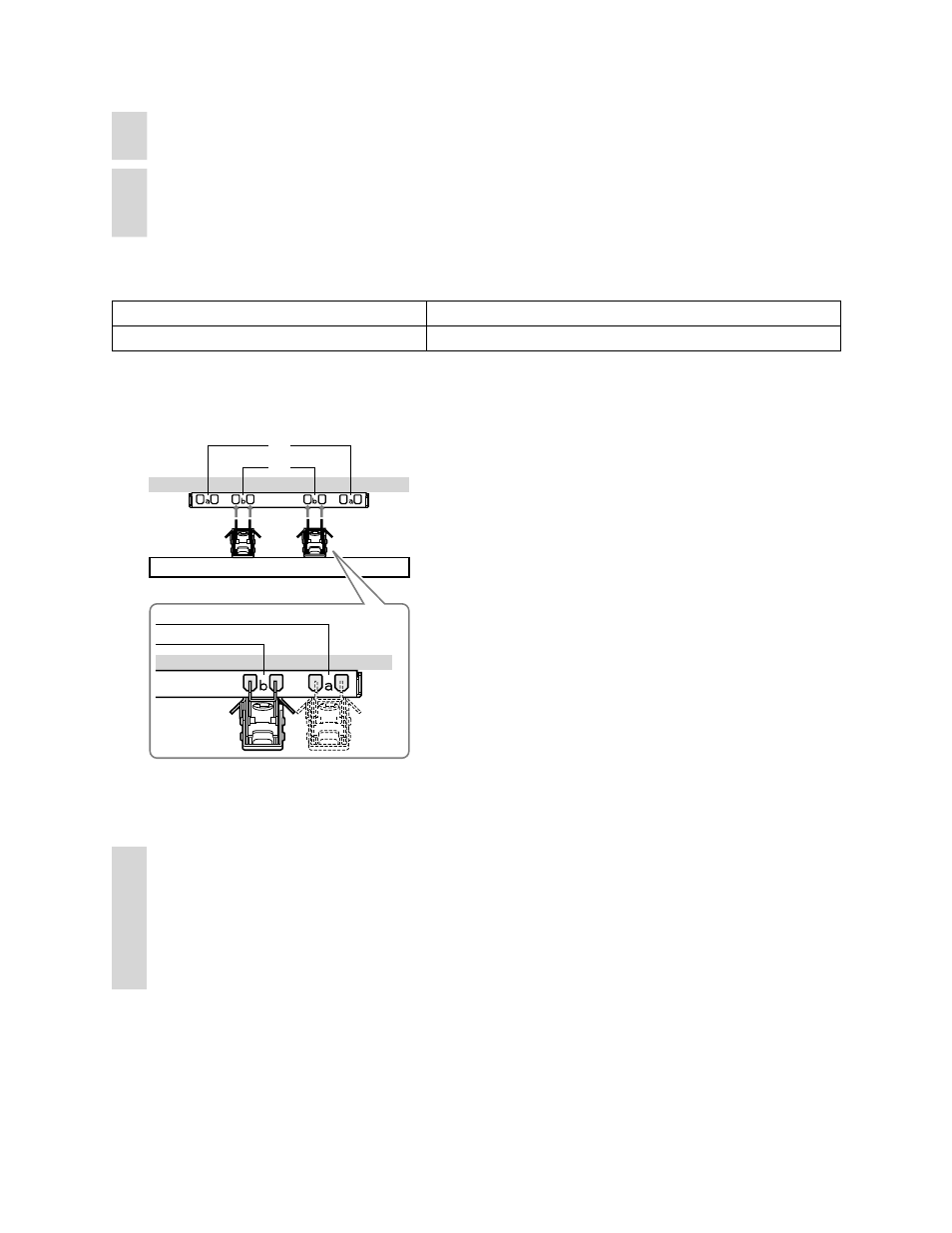

Hook Locations Diagram/Table
Model Name Hook Location
NSX-24GT1 b
Hook Location
When installing the TV onto the Base Bracket.
a*
b
* Hook position “a” cannot be used for the
models in the table above.
11 Install the TV on the Wall.
Refer to the Instructions for SU-WL00.
 Connect the cables to the corresponding inputs on the rear of the TV.
For details on the cable connection, refer to the Operating Instructions for your TV.
 Install the TV onto the Base Plate.
Be sure to secure the TV to the Base Plate.
