Sony NSX-24GT1 User Manual
Page 3
− −
Additional Information for Using Sony Wall-Mount Bracket (SU-WL100)
6

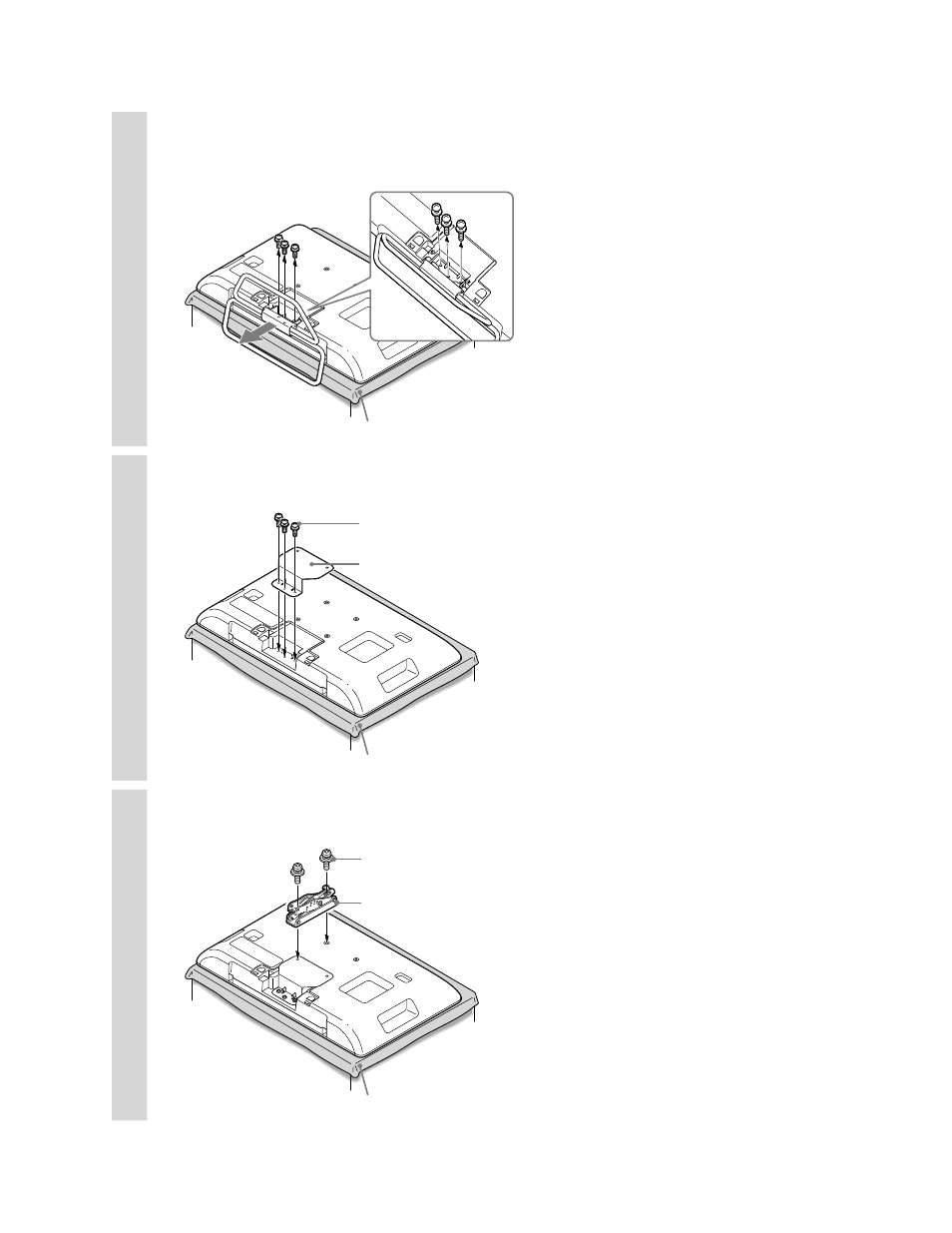

Remove the Cable cover from the rear of the TV. Then remove the screws and
detach the Table-Top Stand from the TV.
Place the TV with its screen facing down on a stable cloth-covered work surface.
Soft cloth
7
Attach the VESA Plate.
Secure it to the TV using three screws (removed according to Step 6).
Screw
(supplied with TV NSX-24GT1)
VESA Plate
(supplied with TV NSX-24GT1)
Soft cloth
8
Secure the Mounting Hook to the left side of the rear of the TV.
Secure it to the TV using two screws (supplied with SU-WL00).
Screw
(+PSW4 × 12)
Mounting Hook
Soft cloth
