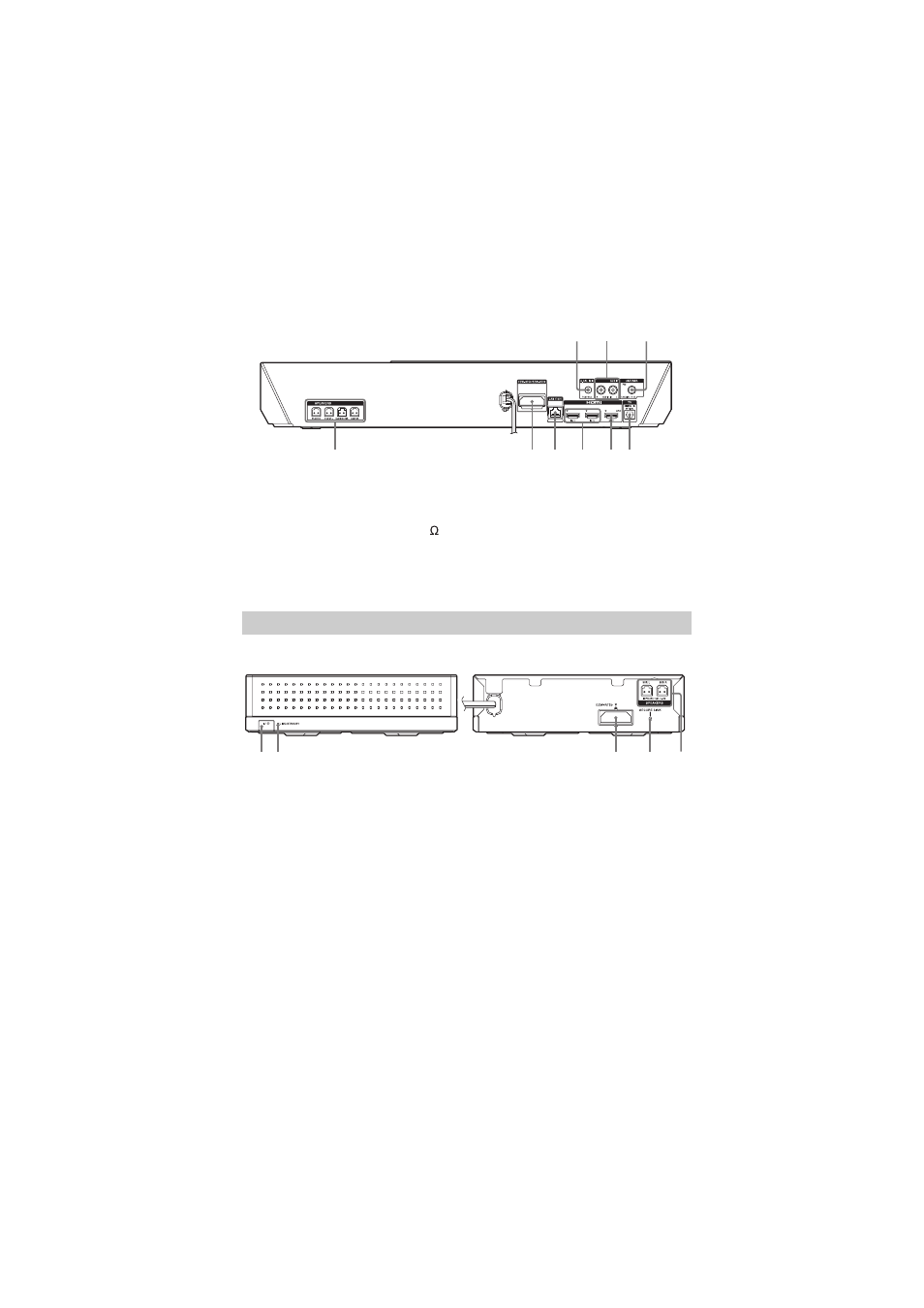

Rear panel
A A.CAL MIC jack (pages 31, 50)
B AUDIO (AUDIO IN L/R) jacks
C ANTENNA (FM COAXIAL 75 )
D TV (DIGITAL IN OPTICAL) jack
E HDMI (OUT) jack (page 24)
F HDMI (IN 1/IN 2) jacks (page 25)
G LAN (100) terminal (page 27)
H Wireless transceiver slot
I SPEAKERS jacks (page 22)
A "/1 (on/standby)
B LINK/STANDBY indicator
You can check the status of wireless
transmission between the main unit
and surround amplifier.
C Wireless transceiver
(EZW-RT50) slot
D SECURE LINK button (page 57)
Starts the Secure Link function.
E SPEAKERS jacks
1
3
2
9
8 7
4
5
6
Surround amplifier
3
1 2
4
5
Front panel
Rear panel
