Page 68
59
Chapter 3
Removing the LCD Brackets
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Launch Board” on page 54.
4.
See “Removing the LCD Module” on page 55.
5.
See “Removing the LCD Bezel” on page 57.
6.
See “Removing the Inverter Board (15” LCD)” on page 57.
7.
See “Removing the 15” TFT LCD” on page 58.
8.

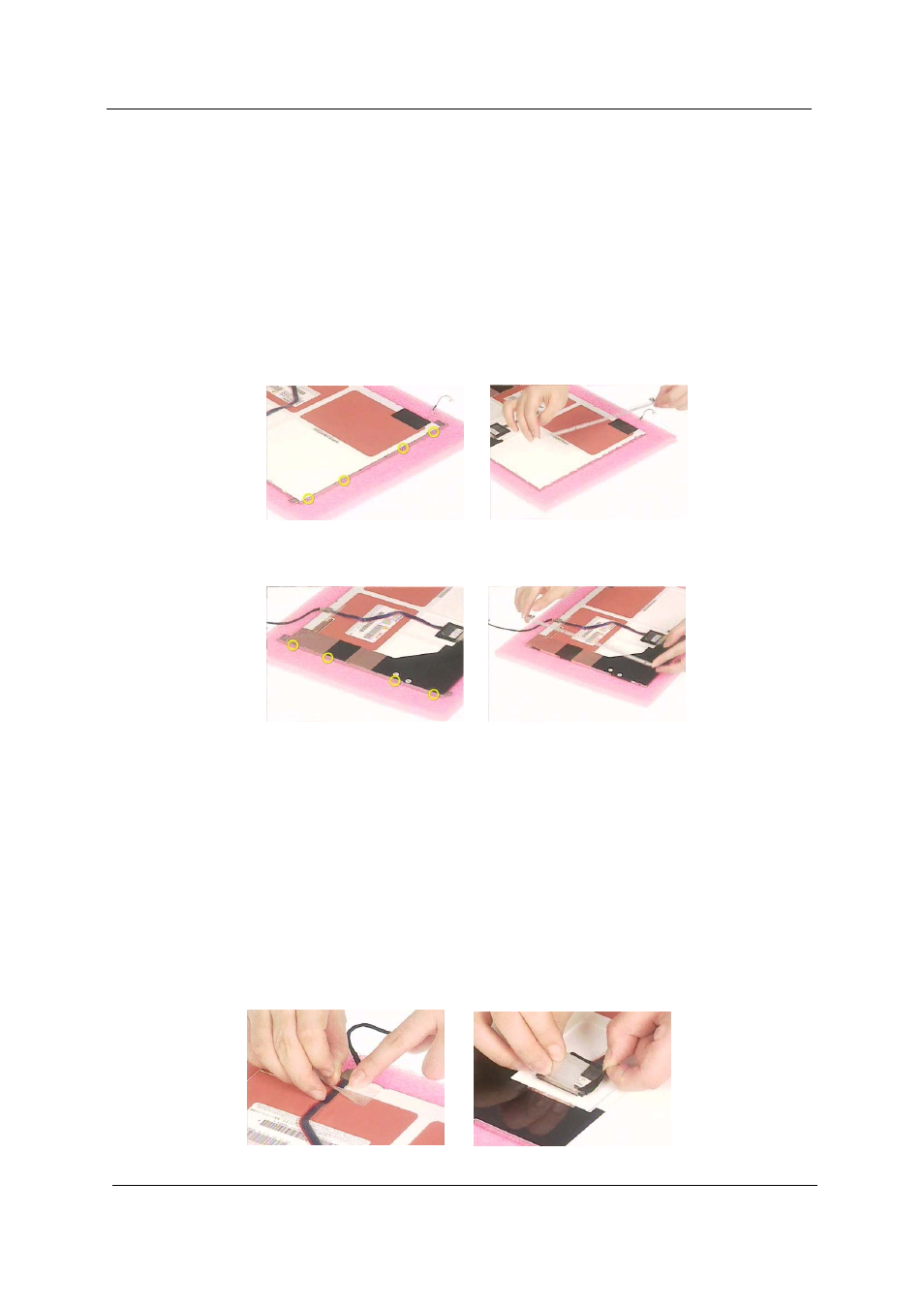

Remove the four screws holding the right LCD bracket.Then remove the right bracket.
9.
Remove the four screws holding the left LCD bracket. Then remove the left bracket..
Removing the LCD Coaxial Cable
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Launch Board” on page 54.
4.
See “Removing the LCD Module” on page 55.
5.
See “Removing the LCD Bezel” on page 57.
6.
See “Removing the Inverter Board (15” LCD)” on page 57.
7.
See “Removing the 15” TFT LCD” on page 58.
8.
Tear off the mylar fastening the LCD coaxial cable, then disconnect the coaxial cable.
