Chapter 5

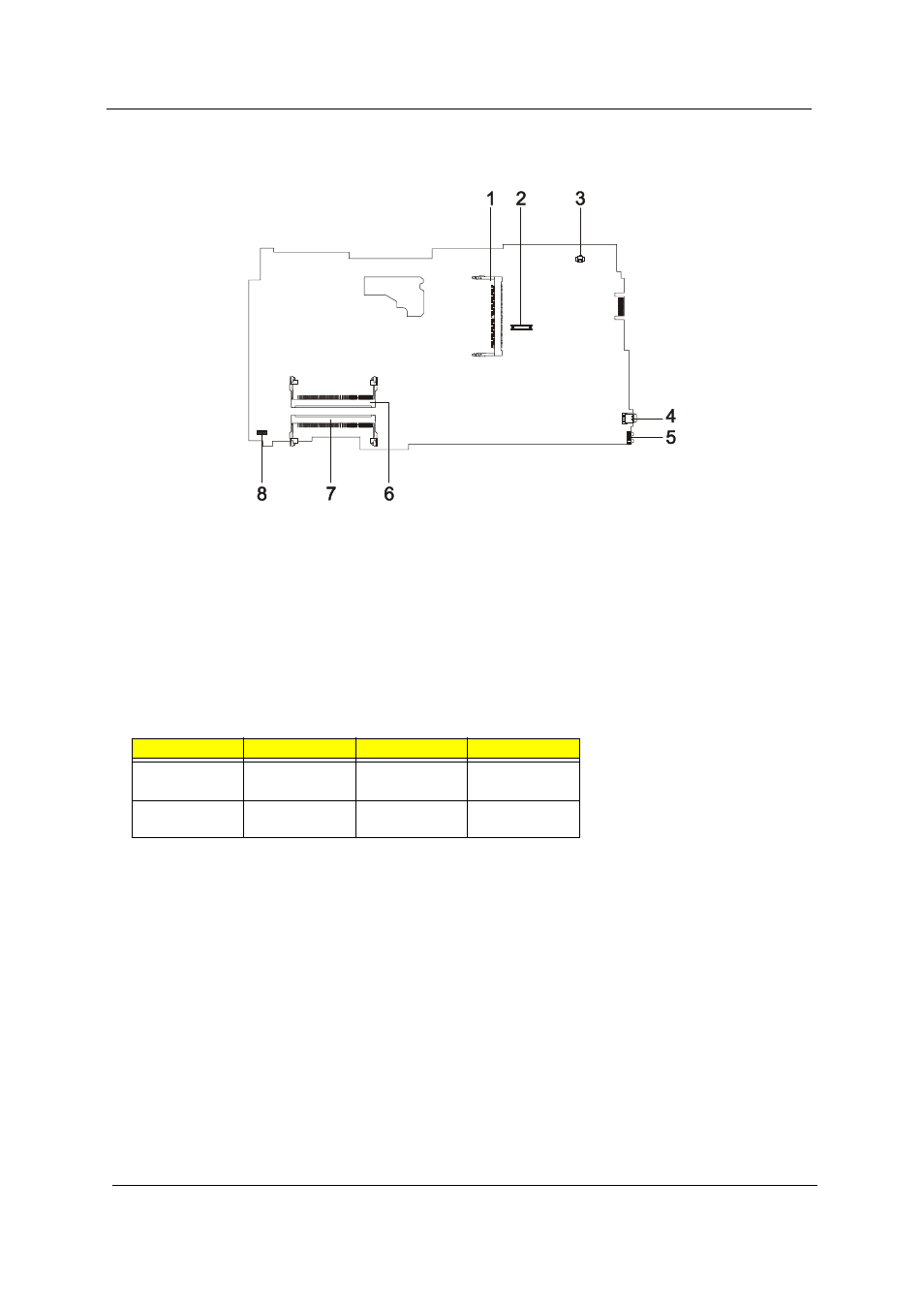

Bottom View
1
CN11
Wireless LAN Card Connector
5
U93
FIR Port
2
CN12
Modem Board Connector
6
DM1
DIMM Socket 1
3
CN10
Modem Cable Connector
7
DM2
DIMM Socket 2
4
SKT2
IEEE 1394 Port
8
BAT1
DC Charger Board Connector
SW Settings
SW1-8
SW2-7
SW3-6
Chkpw
Enable
ON
X
Bootblock
Enable
X
ON
