12
1) Make the connections to the vehicle with the 5 pin wiring harness.
2) Connect the 5 pin harness to the mating connector on the Video
Monitor.
3) Connect power harness to vehicle's electrical system by tapping
into an accessory hot line.
4) Verify all functions of the system before final mounting of the finished
assembly.
NOTE: A VCP or other A/V Component can be connected to the
video monitor system using an RCA A/V cable. This second har-
ness would plug into the AV1 inputs or AUX jack.
A/V Source Definitions :
1 = Built-in DVD
2 = AV1 input ( VCP, DVD, etc )
3 = AV2 Input ( VCP, Game, DVD, etc )

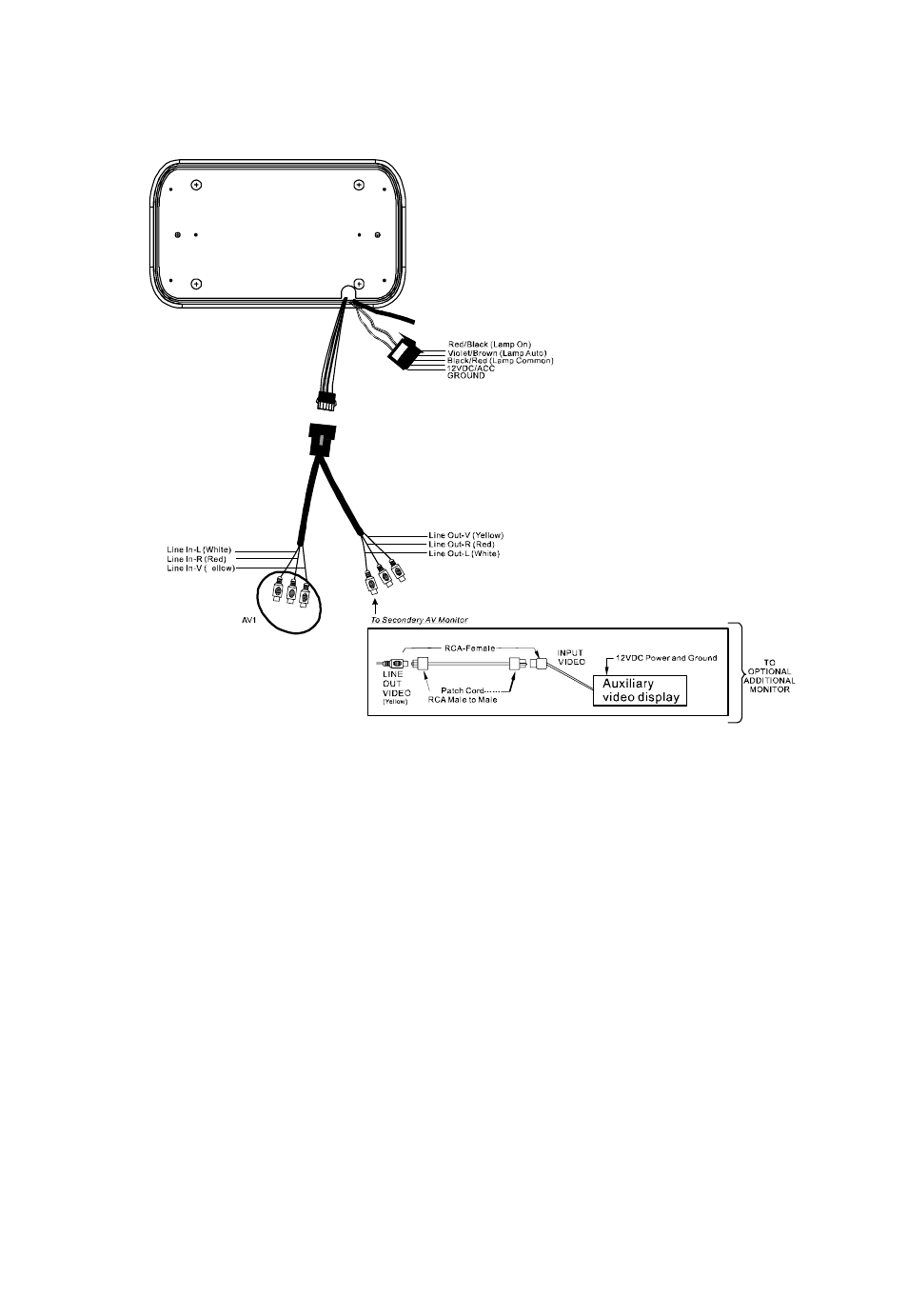

Figure 3
VOD80
Ant enna
Y
F M
