Chapter 2: Basic Installation
Chapter 2
4.

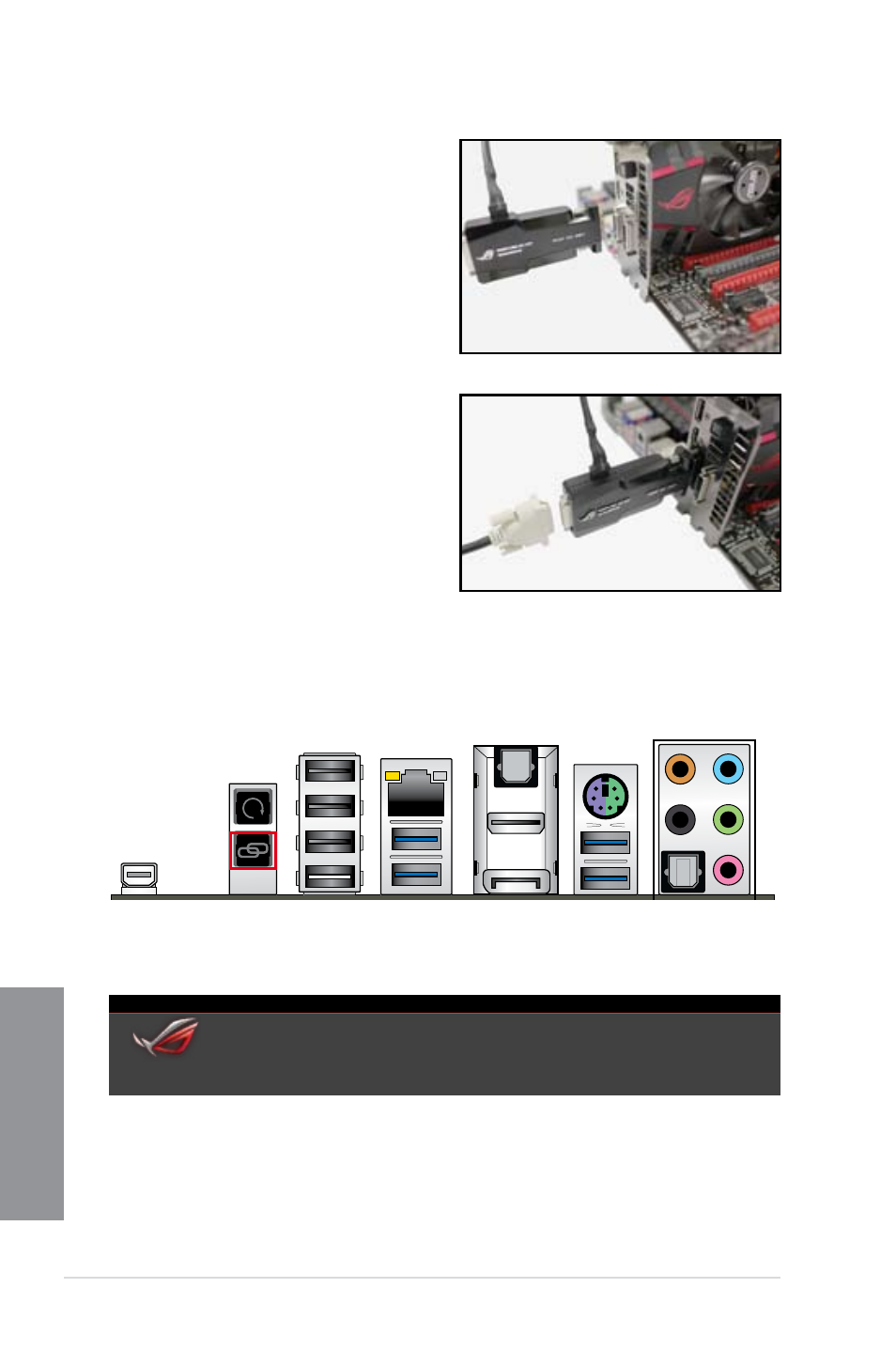

Plug in the DVI male connector of
the OC Key device to the DVI female
connector on the display card.
5.
Plug in the DVI male connector from the
monitor to the OC Key device.
To use the OC Key device
1.
With the system powered ON, press and hold the ROG Connect button on the rear
panel for three seconds to activate the OC Key function.
2.
The OSD Poster screen appears, including the OSD Monitor and OSD TweakIt
menus.
OSD MONITOR
CPU
VCORE POWER
CPU RATIO X BCLK
CPU FREQUENCY
1.26250(V)
15.23000 (A)
44.0 x 100.0
4400.0 (MHz)
SUBZERO SENSE
VGA1 CORE
VGA HOTWIRE 2
CPU TEMP
24.5/-108.0 (C)
0.93750 (V)
0.92435 (V)
34(C)
REPUBLIC OF
GAMERS
