19
H
ook
up
s

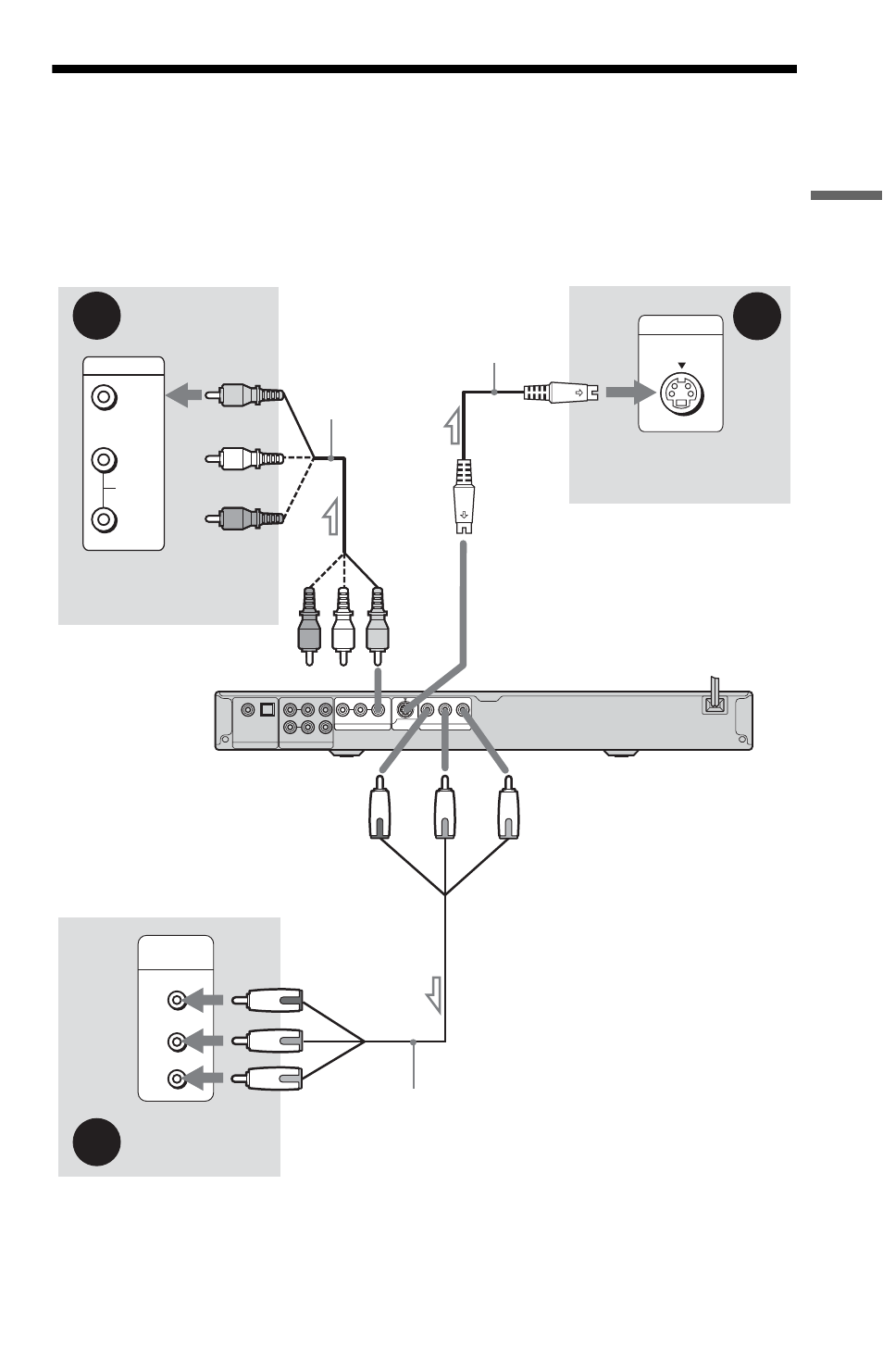

Step 3: Connecting the Video Cords
Connect this player to your TV monitor, projector, or AV amplifier (receiver) using a video cord.
Select one of the patterns A through C, according to the input jack on your TV monitor,
projector, or AV amplifier (receiver).
In order to view progressive signal (480p) pictures with a compatible TV, projector, or monitor,
you must use pattern A.
OPTICAL FRONT COAXIAL
PCM/DTS/
DOLBY DIGITAL
DIGITAL OUT 5.1CH OUTPUT
REAR CENTER
WOOFER
L
R
R-AUDIO-L
LINE OUT
S VIDEO
OUT
VIDEO Y
COMPONENT VIDEO OUT
P R P B
B
VIDEO
AUDIO
INPUT
L
R
A
P R
P B
Y
COMPONENT
VIDEO IN
C
INPUT
S VIDEO
Audio/video
cord (supplied)
Component video
cord (not supplied)
(yellow)
TV, projector, or AV
amplifier (receiver)
to S VIDEO OUT
TV, projector, or AV
amplifier (receiver)
S VIDEO cord
(not supplied)
TV, projector, or AV
amplifier (receiver)
(red) (blue)
(green)
(blue)
(red)
to LINE OUT (VIDEO)
l : Signal flow
CD/DVD player
to COMPONENT
VIDEO OUT
(green)
, continued
