Description and location of parts
A ?/1 (on/standby) (page 18, 24)
B SPEAKERS (OFF/A/B/A+B) (page 14, 19)
C INPUT SELECTOR (page 20, 22 - 25)
D Display panel
E Remote control sensor
Receives signals from remote control.
F MASTER VOLUME (page 20)
G MUTING (page 20)
H DIMMER
Adjusts the brightness of the display panel in 3
levels.
I DISPLAY (page 21)
J BASS +/–, TREBLE +/– (page 19)
K TUNING MODE, TUNING +/–, MEMORY/
ENTER (page 23, 25)
L FM MODE (page 23)
M PHONES jack (page 30)

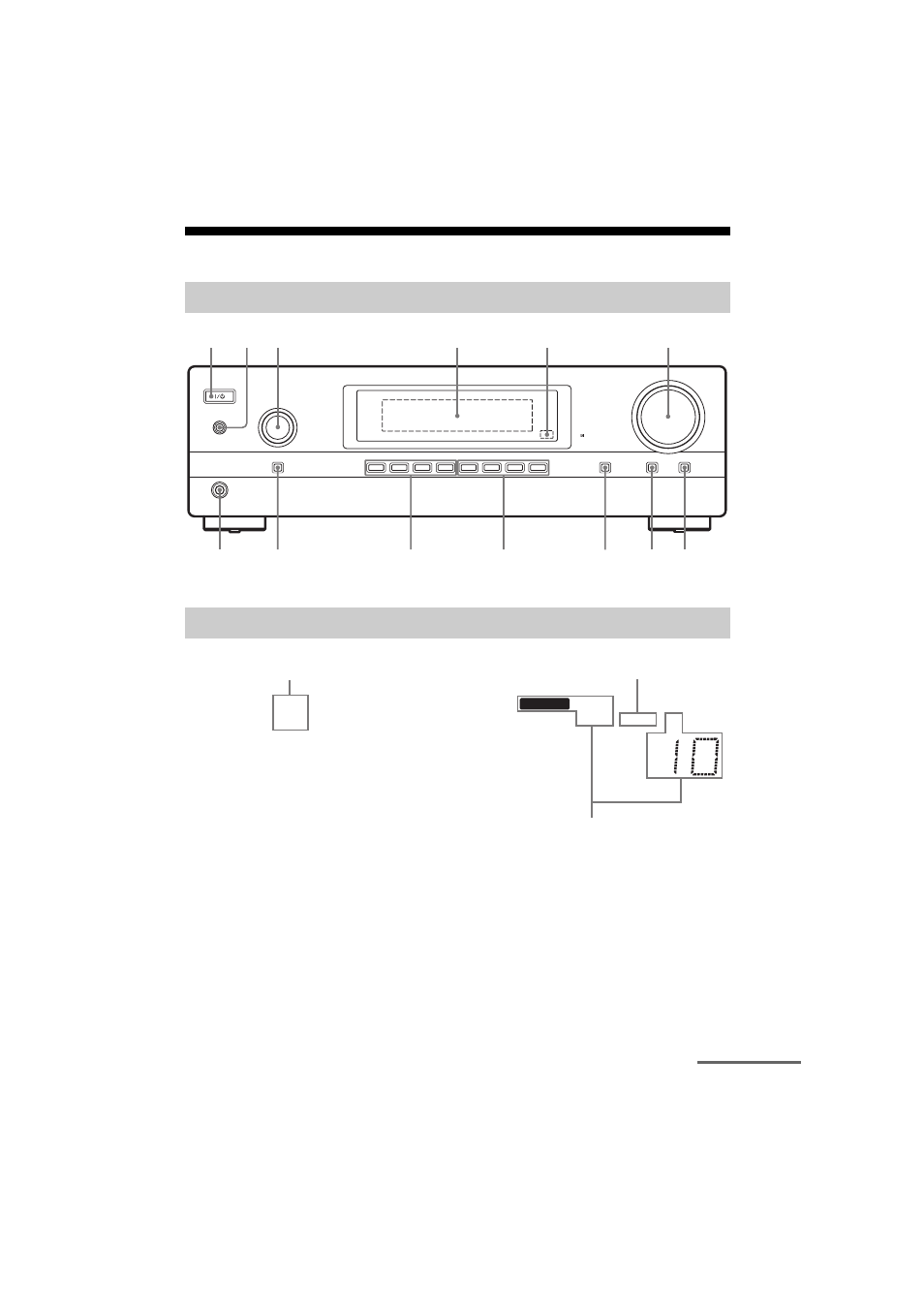

Front panel
Indicators on the display panel
qs qd 0 9 8 7 qa
1 3 2 4 5 6
SP A
SP B MEMORY RDS
MONO SLEEP ST
qf qg
qh
