Setup
VCR and Cable
For best results, use this connection if:
s
Your cable company does not require you to use a cable box.

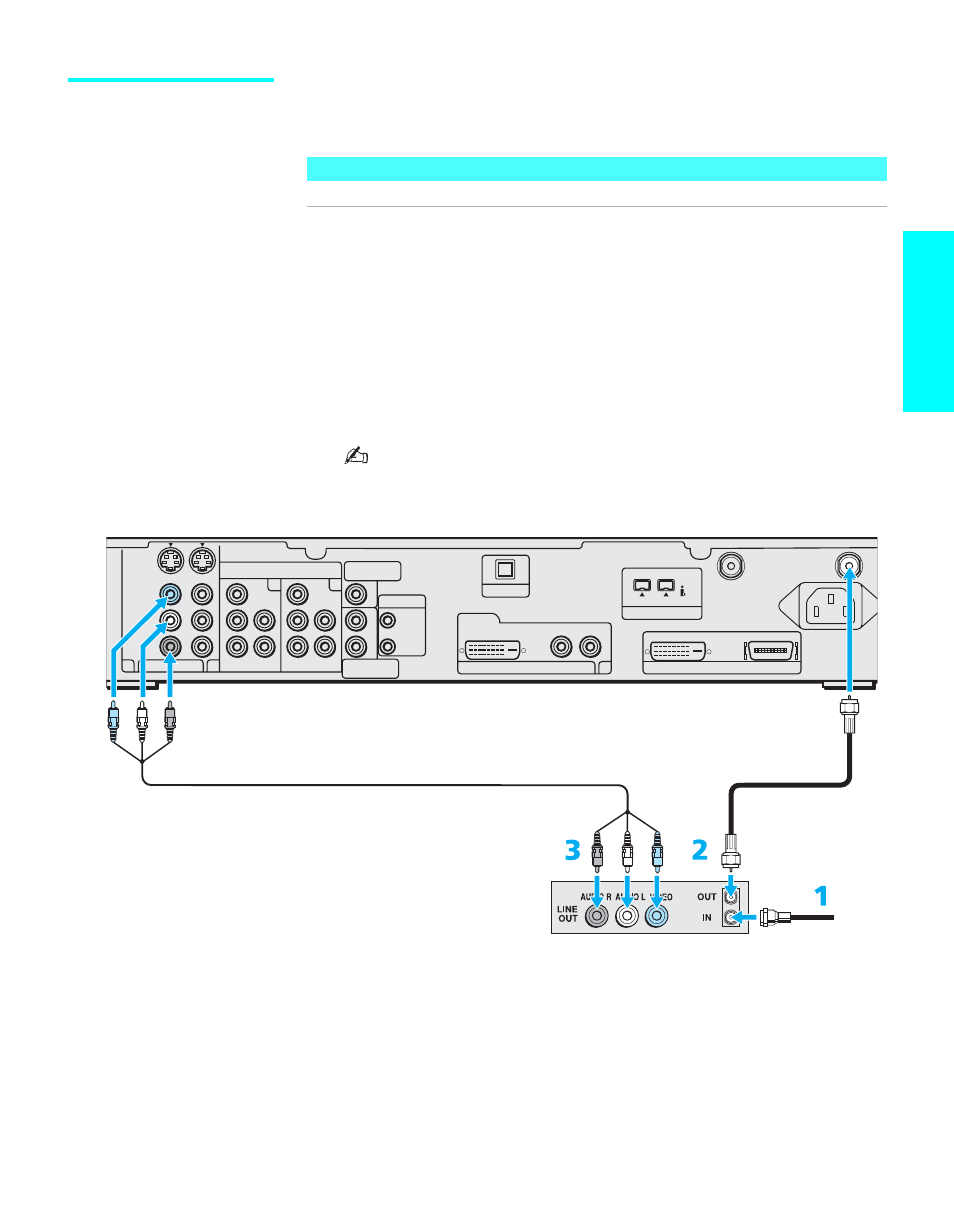

To connect the VCR and cable
1
Connect the CATV cable to the VCR’s VHF/UHF input jack.
2
Use the supplied antenna cable to connect the VCR’s VHF/UHF output
jack to the TV’s CABLE jack.
3
Use an A/V cable to connect the VCR’s A/V output jacks to the TV’s
A/V input jacks.
4
Run the Auto Setup program, as described in “Setting Up the Channel
List” on page 48.
Using S VIDEO jacks? See page 30.
About Using This Connection with Dual Picture (Twin View, etc.) Features
With this connection, you can use all the dual picture features.
