30
Setup
Connecting Optional Equipment
Use the directions in this section to connect the following optional
equipment:
About Using
S VIDEO If the optional equipment you are connecting has an S VIDEO jack
(shown at left), you can use an S VIDEO cable for improved picture
quality (compared to an A/V cable). Because S VIDEO carries only
the video signal, you also need to connect audio cables for sound, as
shown below.

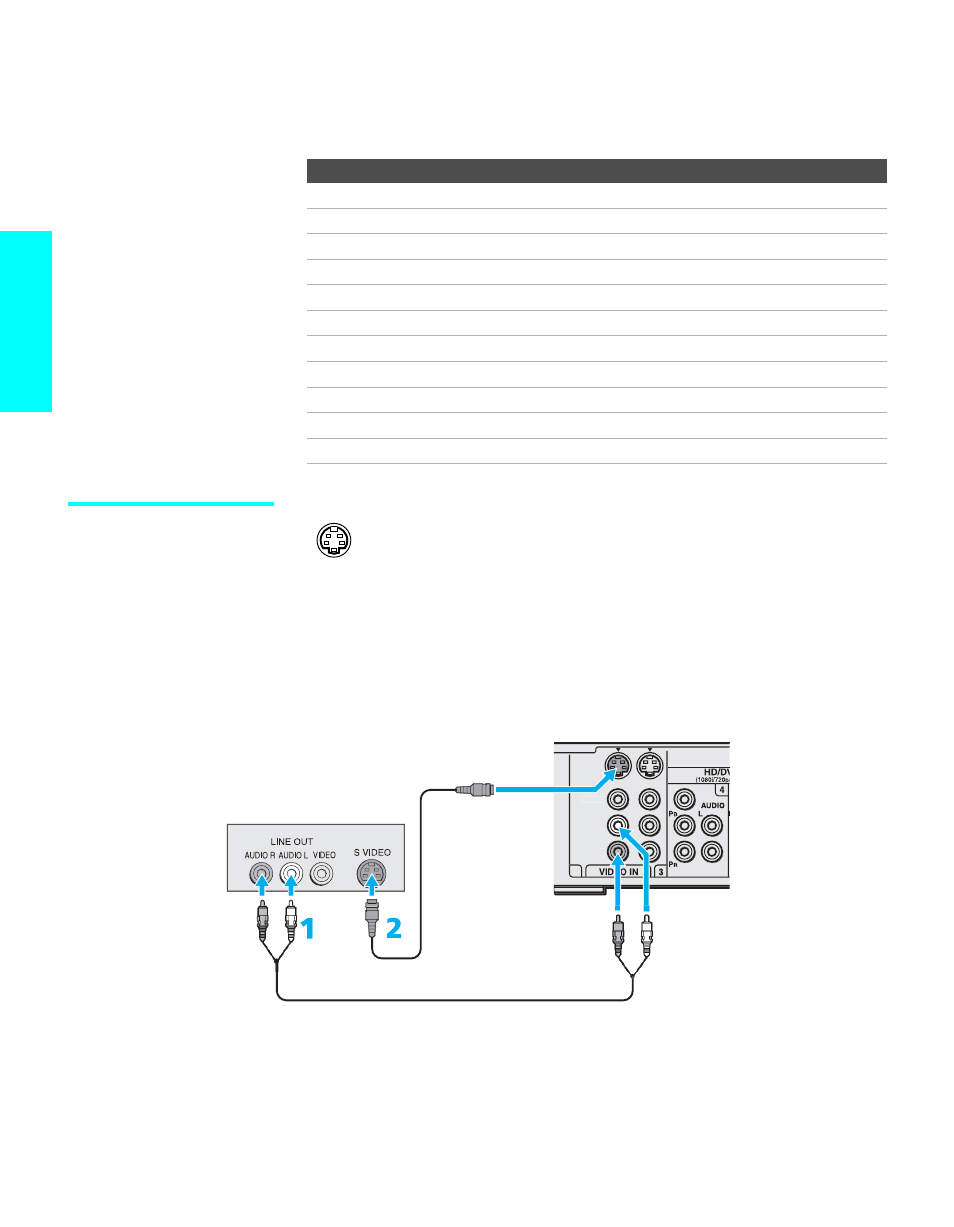

Example of an S VIDEO Connection
If You Are Connecting See Page
VCR and Cable 31
VCR and Cable Box 33
Two VCRs for Tape Editing 35
Satellite Receiver 37
Satellite Receiver and VCR 39
DVD Player with Component Video Connectors 41
DVD Player with S VIDEO and Audio Connectors 43
Camcorder 44
Audio Receiver 45
Sub Woofer 46
Device with an Optical IN Connector 46
S VIDEO
VIDEO
Y
R P
L
AUDIO
R
1
S VIDEO
cable
Audio cable
Rear of Media receiver unit
Equipment with S VIDEO
