VAIO Digital Studio System Reference Manual 6
Connectors
Connector Description
Audio L In jack Connects to an audio cable (supplied).
Video In jack Connects to a video cable (supplied).
S-Video In jack Connects to an S-video cable (optional).
Audio R In jack Connects to an audio cable (supplied).
i.LINK® port
(IEEE 1394)
*
* To connect to a 6-pin i.LINK device, use the i.LINK port on the back of the system. A 6-pin i.LINK connector
can supply power from the computer to the device if the device also has a 6-pin i.LINK port. A 4-pin i.LINK
connector cannot supply power to the device.
Connects to a digital device that has a 4-pin i.LINK
header.
USB1, USB2 ports Connects to USB devices.

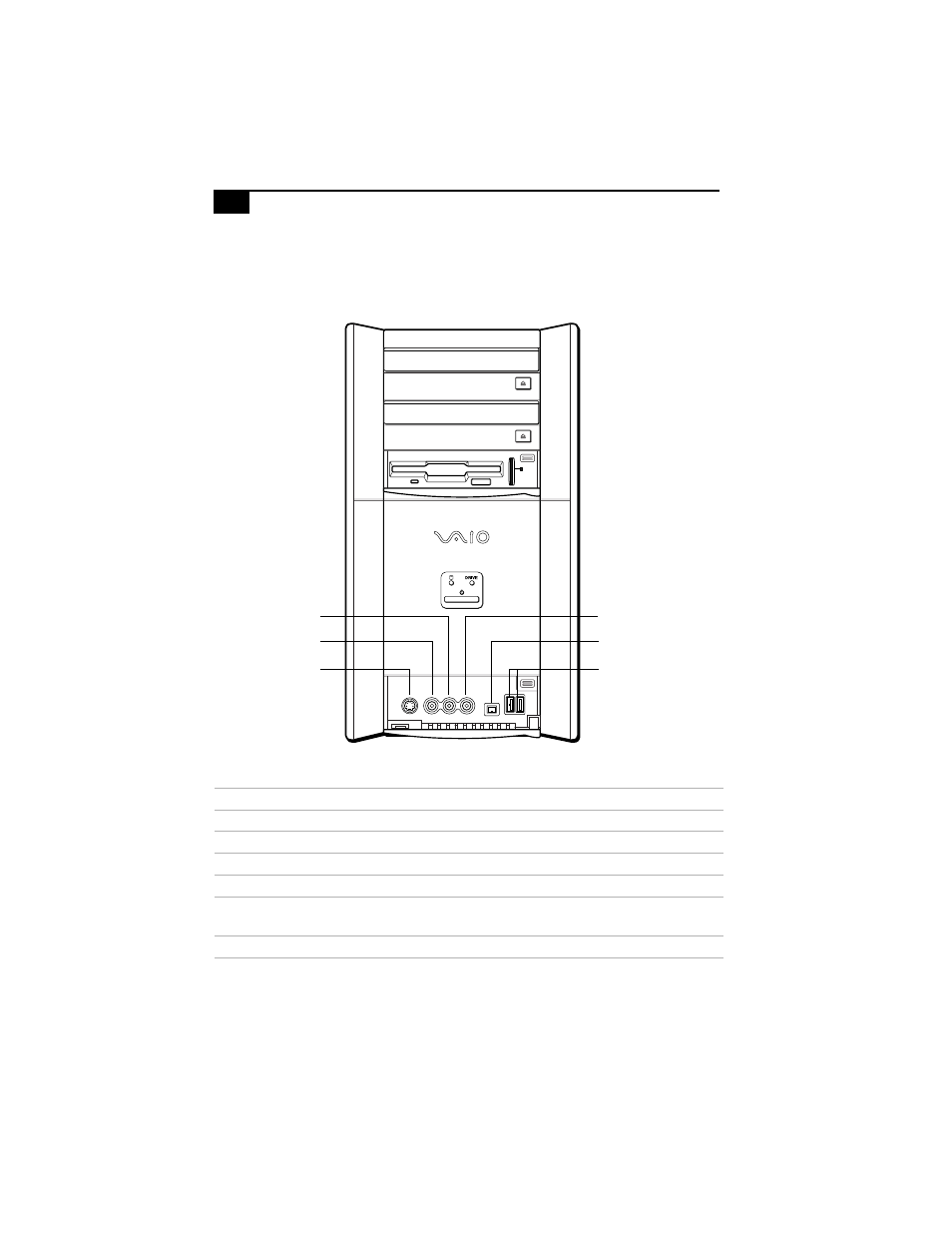

USB1, USB2 ports
i.LINK port
S-Video In jack
Video In jack
Audio L In jack Audio R In jack
