9 Align the memory module over the appropriate socket, noting the
location of pin 1 on the module and pin 1 on the socket.
10
Carefully but firmly insert the edge of the module into the socket.
11
Press down firmly and evenly at both corners until the module is
fully seated.
✍
Gently push the power supply cables and ribbon cables aside as you slip your hands into
the system to reach the module connector.
✍
When the module is fully seated, the handles on each side are straight up and
locked into the slot on each side of the module. If the handles are not totally
straight upright, continue to press down on each side of the module until the
handles lock into place.

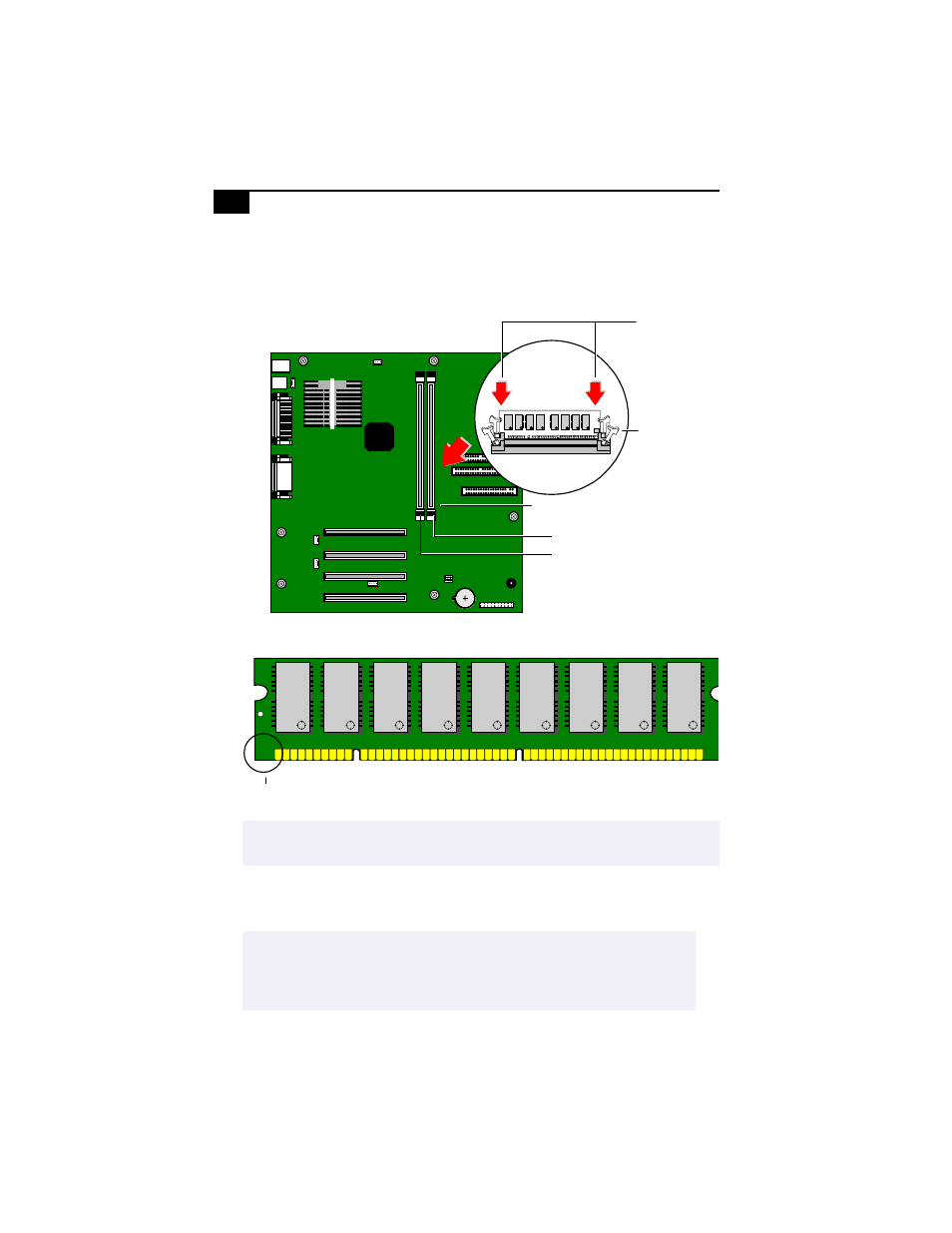

DIMM1
DIMM2
Pin 1 side
1
Memory module (DIMM)
Handles
Press down
here
