17
Gettin
g
Starte
d

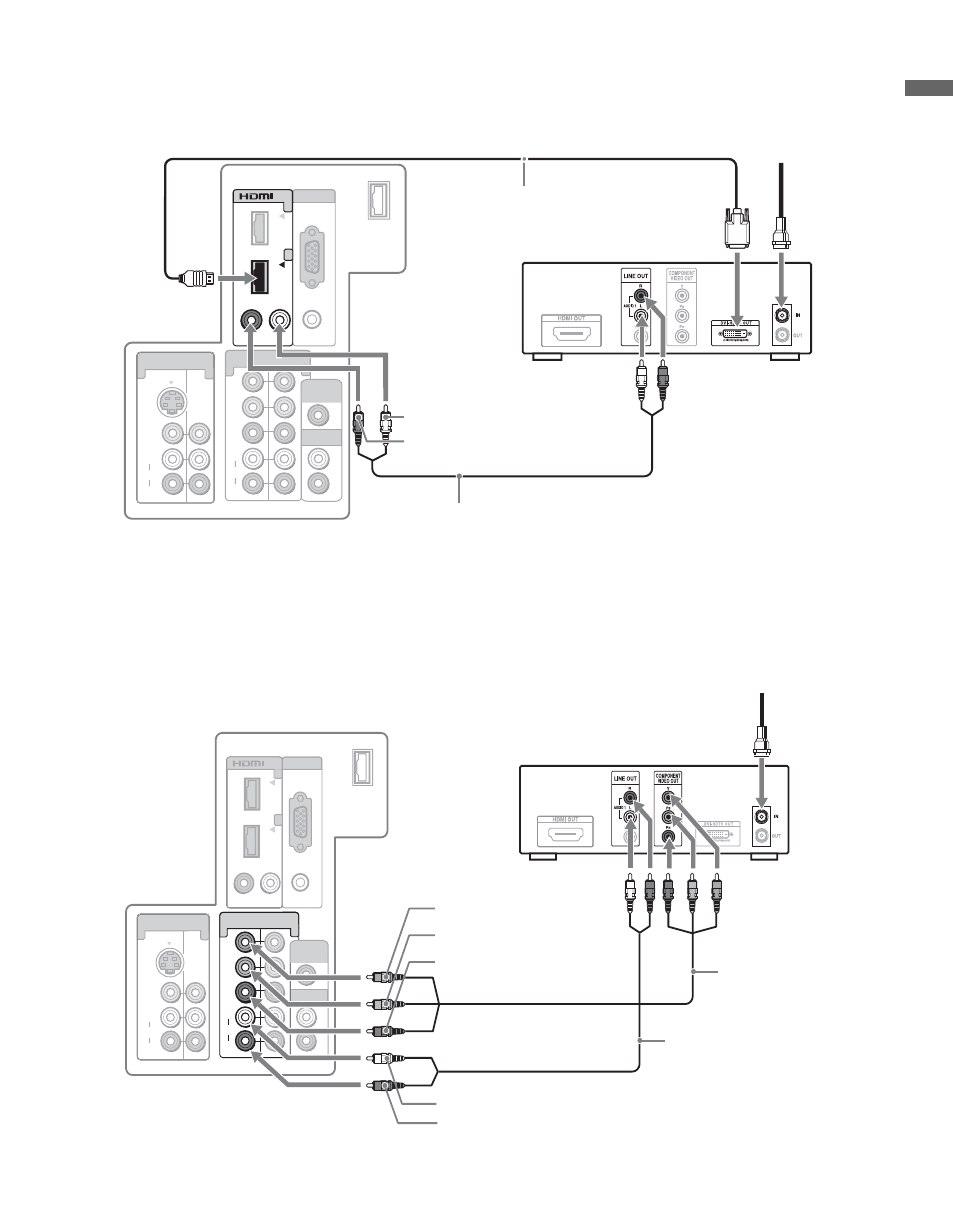

Shown with DVI Connection
~
• If the equipment has a DVI and not a HDMI connector, use a HDMI to DVI cable or adapter to connect the DVI output
to either HDMI IN 1 or HDMI IN 2 input, and connect the audio jacks to the AUDIO (L/R) jacks below the HDMI IN
2. (DVI connector is for video signals only, the Audio jacks provide support for the audio)
VIDEO
AUDIO
(MONO)
L
R
VIDEO IN
S VIDEO 1 3
R-AUDIO-L
RGB
AUDIO
SERVICE
ONLY
PC IN
Y
P B
P R
L
R
COMPONENT IN
(1080i/720p/480p/480i)
2 1
AUDIO
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO OUT
(FIX)
IN
1
2
Rear of TV
AUDIO-R
(red)
AUDIO-L
(white)
Audio cable
DVI-to-HDMI cable
HD cable box/HD satellite box
CATV/Satellite
antenna cable
VIDEO
AUDIO
(MONO)
L
R
VIDEO IN
S VIDEO 1 3
R-AUDIO-L
RGB
AUDIO
SERVICE
ONLY
PC IN
Y
P B
P R
L
R
COMPONENT IN
(1080i/720p/480p/480i)
2 1
AUDIO
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO OUT
(FIX)
IN
1
2
Rear of TV
CATV/Satellite antenna cable
P B (blue)
AUDIO-L (white)
AUDIO-R (red)
HD cable box/HD satellite box
Y (green)
P R (red)
Audio cable
Shown with Component Connection
Component
video cable
