32 US
Gettin
g
Star
ted
DAV-HDX578W/DAV-HDX678WF/DAV-HDX975WF
* If your TV accepts progressive format signals, use this connection and set the output signal of the system to
progressive format (page 46).
** HDMI (High-Definition Multimedia Interface)
If your TV has the HDMI jack, use this connection and select the type of output signal (page 46).
Note
• During the “DMPORT” function, video signal is not output from the HDMI OUT and COMPONENT VIDEO OUT
jacks.
• The system can accept both digital and analog signals. Digital signals have priority over analog signals. (COAXIAL
has priority over OPTICAL.) If the digital signal ceases, the analog signal will be processed after 2 seconds.
CENTER SUBWOOFER
DIGITAL IN
COAXIAL 75 AM FM
P B /C B P R /C R AUDIO IN Y R L
COAXIAL OPTICAL
COMPONENT VIDEO OUT TV
DMPORT
TV SPEAKER
AUDIO IN R L
SAT/CABLE
ANTENNA
HDMI OUT
EZW-RT10
FRONT R FRONT L
SPEAKER
VIDEO OUT
DC5V
0.7A MAX
DIGITA L IN
COAXIA
L
OPTIC AL
TV AUDIO IN
R
L
TV
VIDEO
OUT
P B /C B
P R /C R
Y
COMPO
NENT V IDEO O
UT

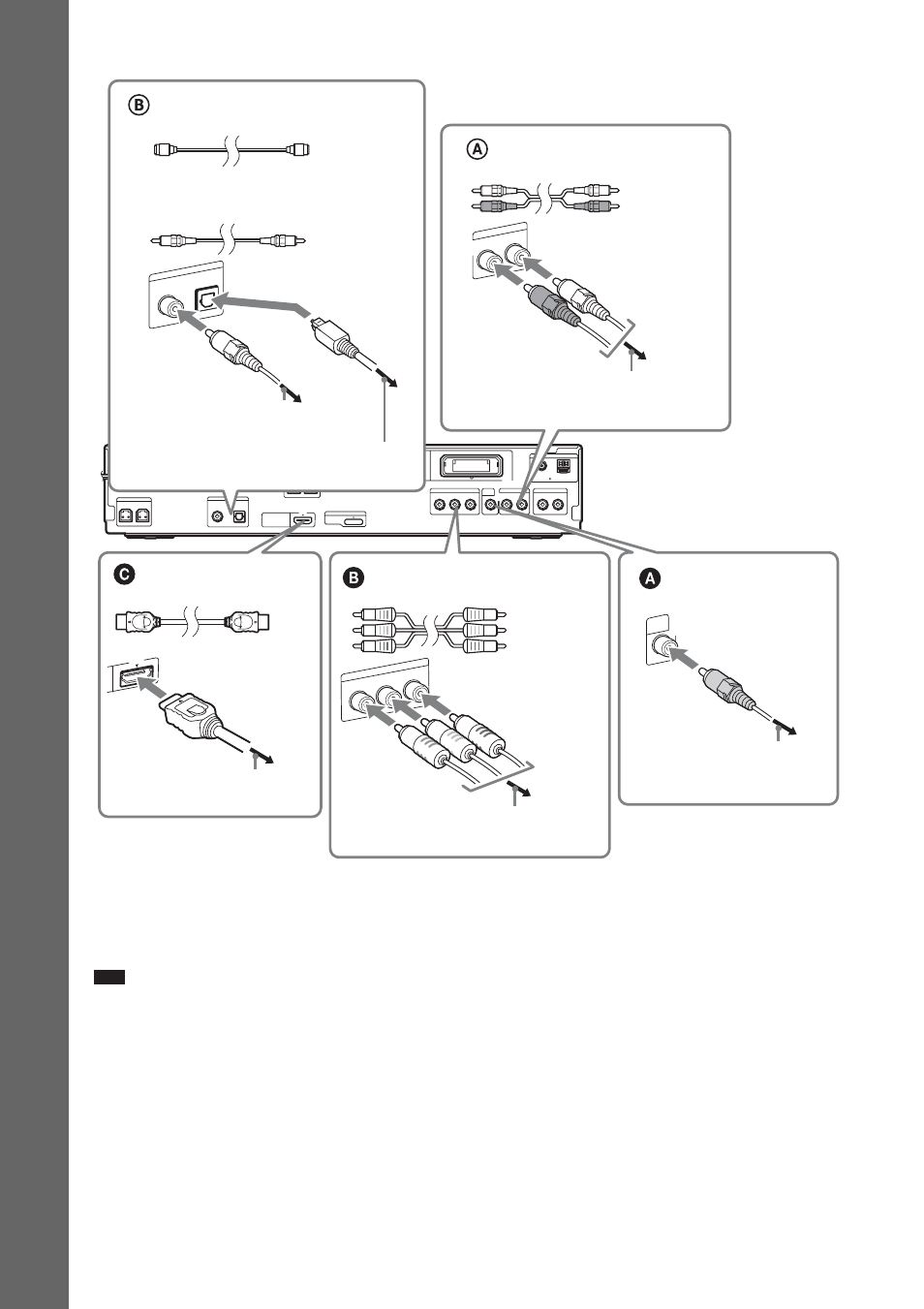

Rear panel
To the COMPONENT VIDEO IN jacks
of the TV
To the HDMI IN jack of the TV
To the VIDEO IN jack of
the TV
To the AUDIO OUT jacks of the TV
Component video cord
(not supplied)*
Video cord
(supplied)
HDMI** cable
(not supplied)
Audio cord
(not supplied)
Green
Blue
Red
White
Red
To the digital coaxial output jack of
the TV
To the digital optical output jack of
the TV
Digital optical cord
(not supplied)
Digital coaxial cord
(not supplied)
or
