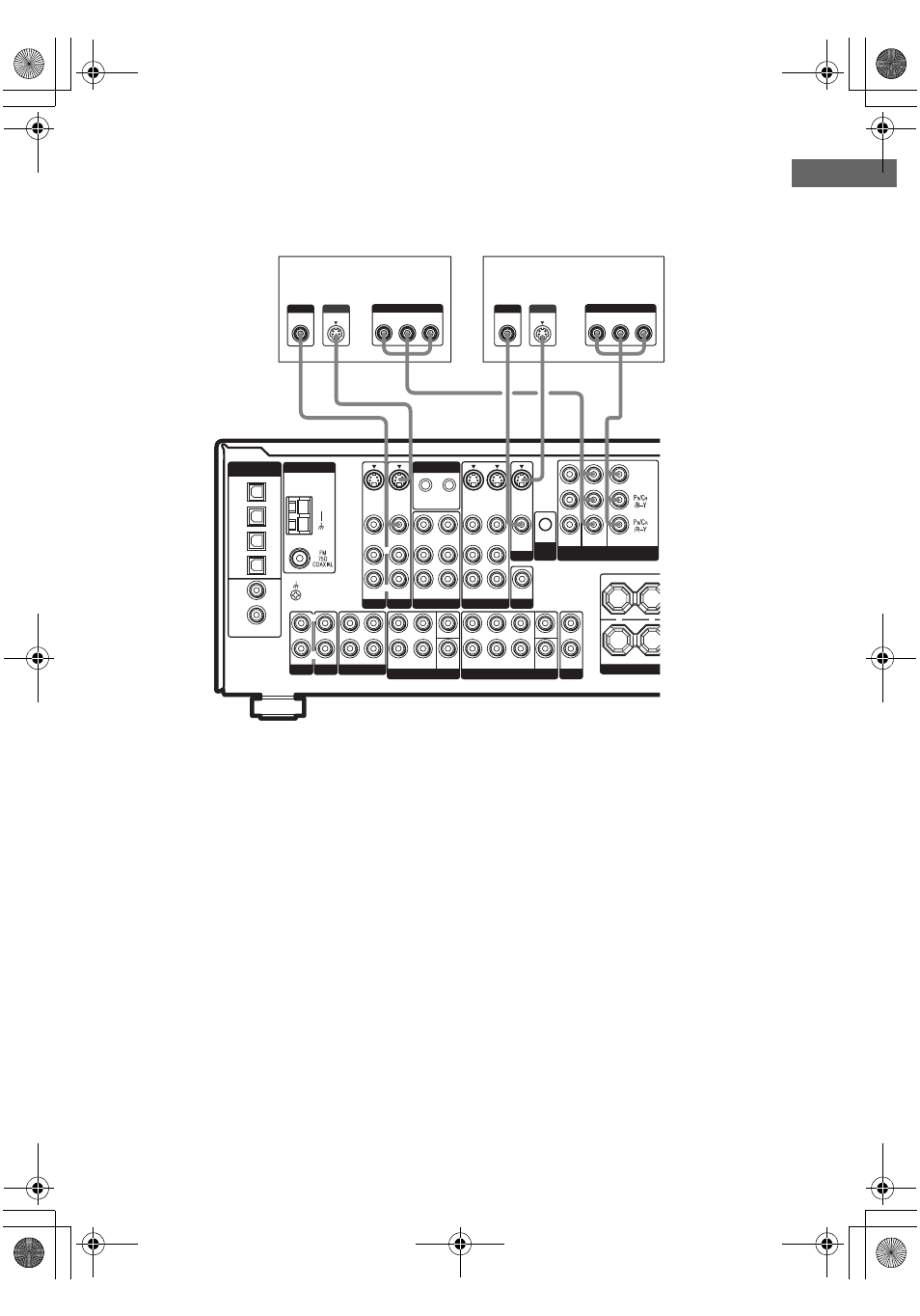

2 Connect the video jacks.
The following illustration shows how to connect a DVD player with COMPONENT VIDEO (Y,
P
B
/C
B
/B-Y, P
R
/C
R
/R-Y) output jacks. Connecting a TV with component video input jacks allows you
to enjoy higher quality video.
Tips
• When using the S-video jacks instead of the video jacks, your monitor must also be connected via an S-video jack.
S-video signals are on a separate bus from the video signals and will not be output through the video jacks.
• On this receiver, standard video signals can be converted to component video or S-video signals and S-video
signals can be converted to component video signals. These upconverted video signals can only be output from the
MONITOR VIDEO OUT jack. However, you cannot convert the component video signals to standard video or
S-video signals.
