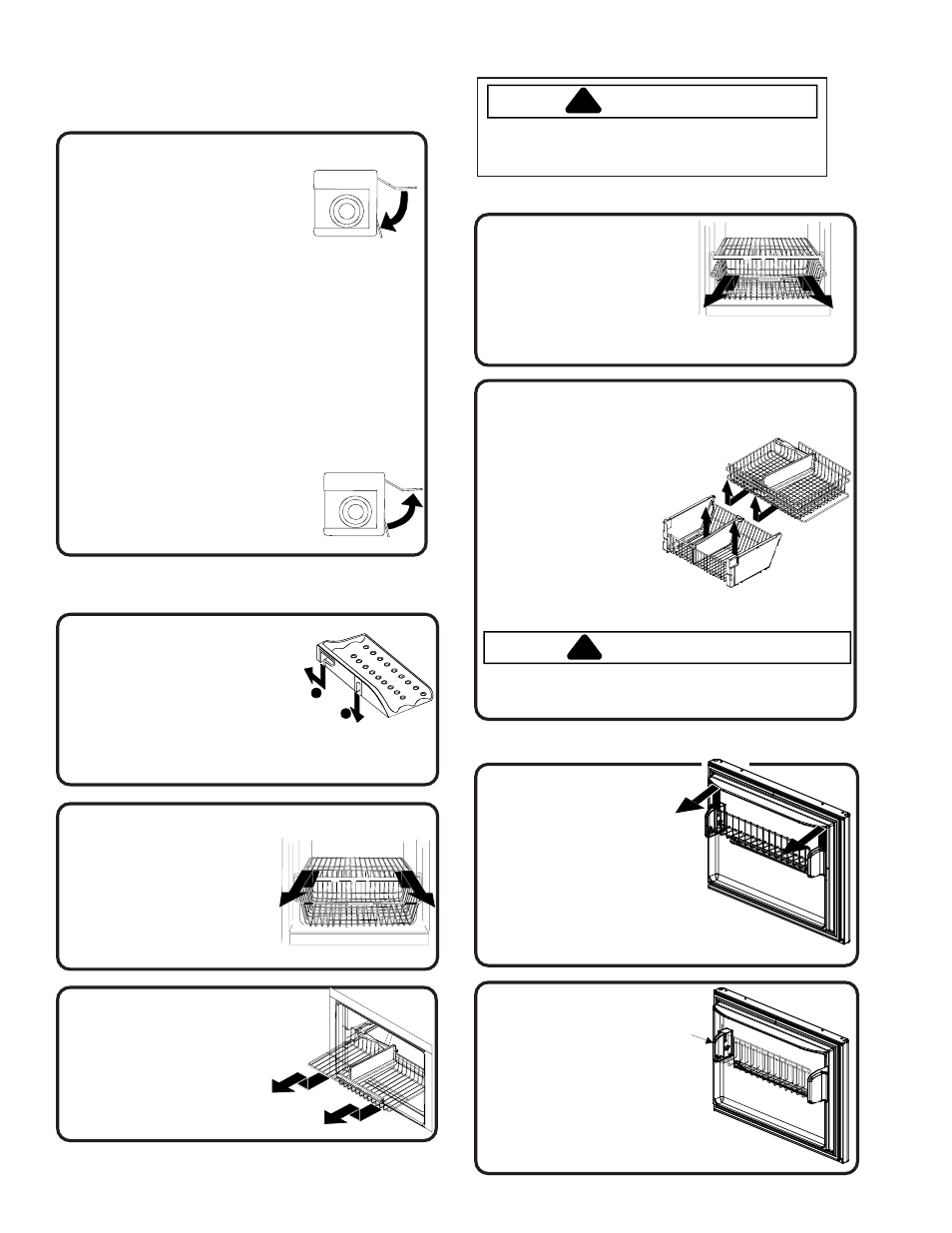

12
Drawers
Fixed Freezer Shelf
To remove and install shelves:
• Remove shelf by pulling
out to full extension. Tilt up
front of shelf and pull
straight out.
• To install, insert shelf into
refrigerator liner rails and
push to back of compartment.
Freezer Features
Automatic Ice Maker (some models)
Using Ice Maker for the First Time
• Confirm ice bin is in place
and ice maker arm is down.
• After freezer section reaches
between 0° to 2°F (-18° to -17° C), ice maker fills
with water and begins operating.
• Allow approximately 24 hours after installation to
receive first harvest of ice.
• Discard ice created within first 12 hours of operation
to verify system is flushed of impurities.
Operating Instructions
• Confirm ice bin is in place and ice maker arm is
down.
• After freezer section reaches 0° to 2°F (-18° to
-17° C), ice maker fills with water and begins
operating. You will have a complete harvest of
ice approximately every 3 hours.
• Stop ice production by raising
ice maker arm until click is heard.
• Ice maker will remain in the off
position until arm is pushed down.
Primary Features
CAUTION !
To avoid property damage, observe the following:
• Do not force ice maker arm down or up.
• Do not place or store anything in ice storage bin.
Fixed Door Shelf
The fixed door shelf provides
convenient storage for frozen
food items in freezer door.
To remove and install door shelf:
• To remove shelf, lift assembly
from side liner tabs and pull
out.
• To install, fit ends of shelf assembly on
liner tabs and slide down.
Door Storage
Wire Basket
To remove and install basket:
• To remove basket, pull basket
out to full extension. Tilt up front
of basket and pull straight out.
• To install, insert basket into refrigerator liner rails and
push back into place
Tilt-Out Bin (some models)
The tilt-out bin (A) provides
convenient storage for frozen
food items in freezer door and
tilts forward for easy access of
those items.
To remove and install door shelf:
• See above instructions listed for
Fixed Door Shelf.
Shelves
Ice Service Rack
To install and remove rack:
• To install, slide L-shaped
groove of shelf down over
back wall screw. Push rack back
until screw is stopped in L-shaped
groove (1) . Slide front portion of
shelf over front wall screw (2).
• To remove, perform above steps in reverse order.
1
2
Slide-Out Freezer Shelf
To remove and install shelves:
• Remove shelf by pulling out to full
extension. Tilt up front of shelf and
pull straight out.
• To install, insert shelf into
refrigerator liner rails and push to
back of compartment.
Pullout Drawer Baskets (some models)
(Door assembly of drawer removed from illustration for
visual clarity)
To remove and replace top basket:
• Remove basket by pulling
basket out to its full extension
and lift out.
• Replace basket by
sliding into upper
molded railing.
To remove and replace bottom
basket:
• Remove basket by lifting basket from rail guides.
• Replace basket by placing into rail guides.
A
DANGER !
To prevent accidental child entrapment or suffocation
risk,DO NOT remove the divider in the top freezer
basket.
