18
Installing and Connecting the TV

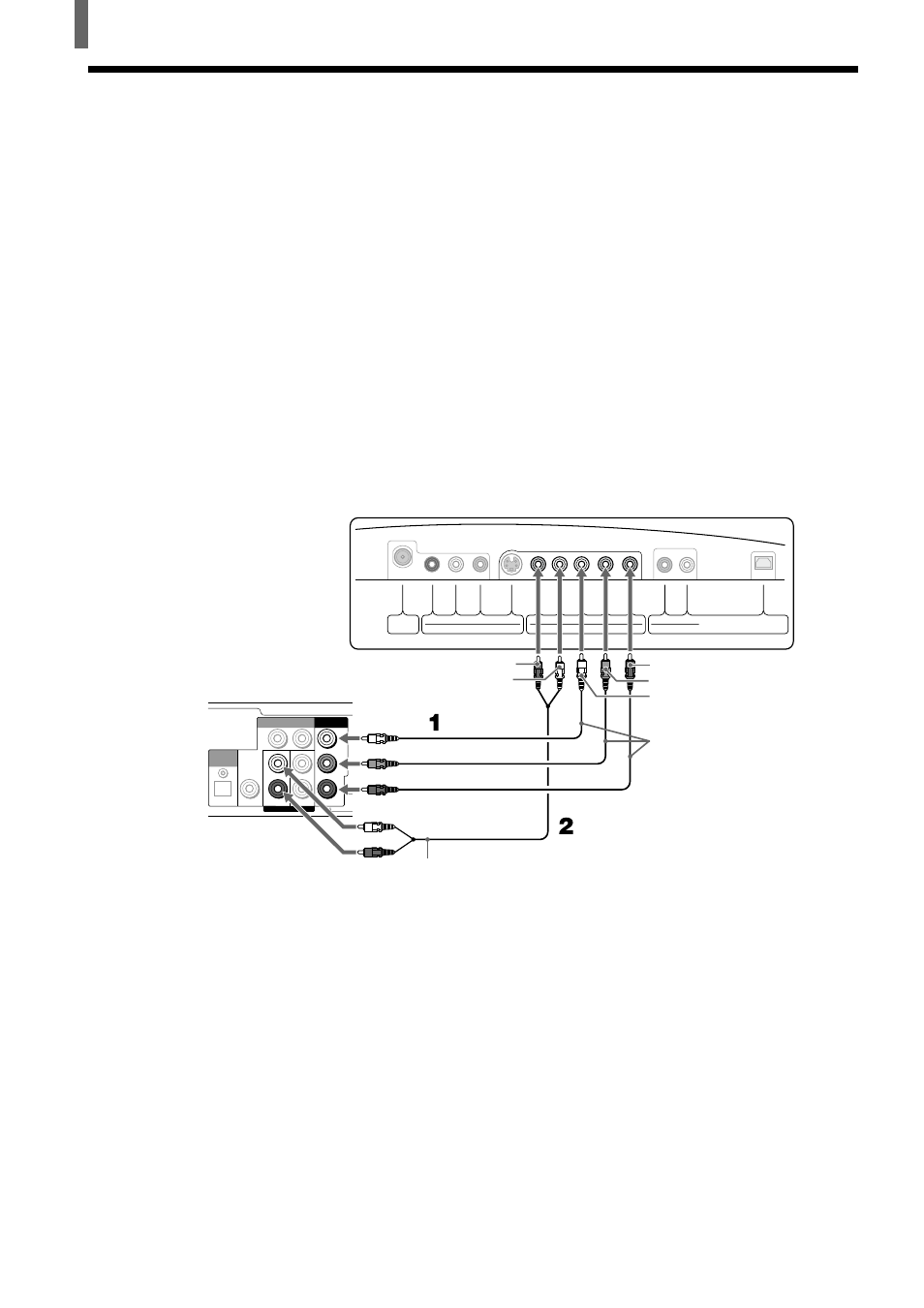

Connecting a Digital Satellite Receiver
Disconnect all power sources before making any connections.
1
Using three separate component video cables, connect the Digital
Satellite Receiver’s Y, P
B
and P
R
jacks to the Y, P
B
and P
R
jacks on the
TV. Use the VIDEO 3 IN connections.
Note
Component video (Y, P
B
, P
R
) connection is necessary to view 480p, 720p, and 1080i
formats. Note that this TV displays all format types of picture in a resolution of 1280 dots
× 768 lines.
2
Using an AUDIO cable, connect the Digital Satellite Receiver’s AUDIO
OUT jacks to the TV’s AUDIO IN jacks.
Note
The Y, P
B
and P
R
jacks do not provide audio, so audio cables must be connected to
provide sound.
VIDEO OUT
(480i)
TYPE
1
L1 L2
Y
P B
P R R1
AUDIO OUT
S. VIDEO OPTICAL
OPTICAL
AUDIO
OUT
R2
2
VIDEO OUT
(1080i/720p/480p)
VHF/UHF R-AUDIO-L VIDEO S VIDEO
VIDEO 1 IN AUDIO OUT
R L DC IN 14.5V R-AUDIO-L
VIDEO 3 IN
Y P B P R
Digital Satellite Receiver
(SAT-HD200)
RK-74A (not supplied)
Rear of TV
VMC-10HG (not supplied)
P
R
P
B
Y
AUDIO-R (red)
AUDIO-L (white)
