32
Connecting USB Devices
Hubs

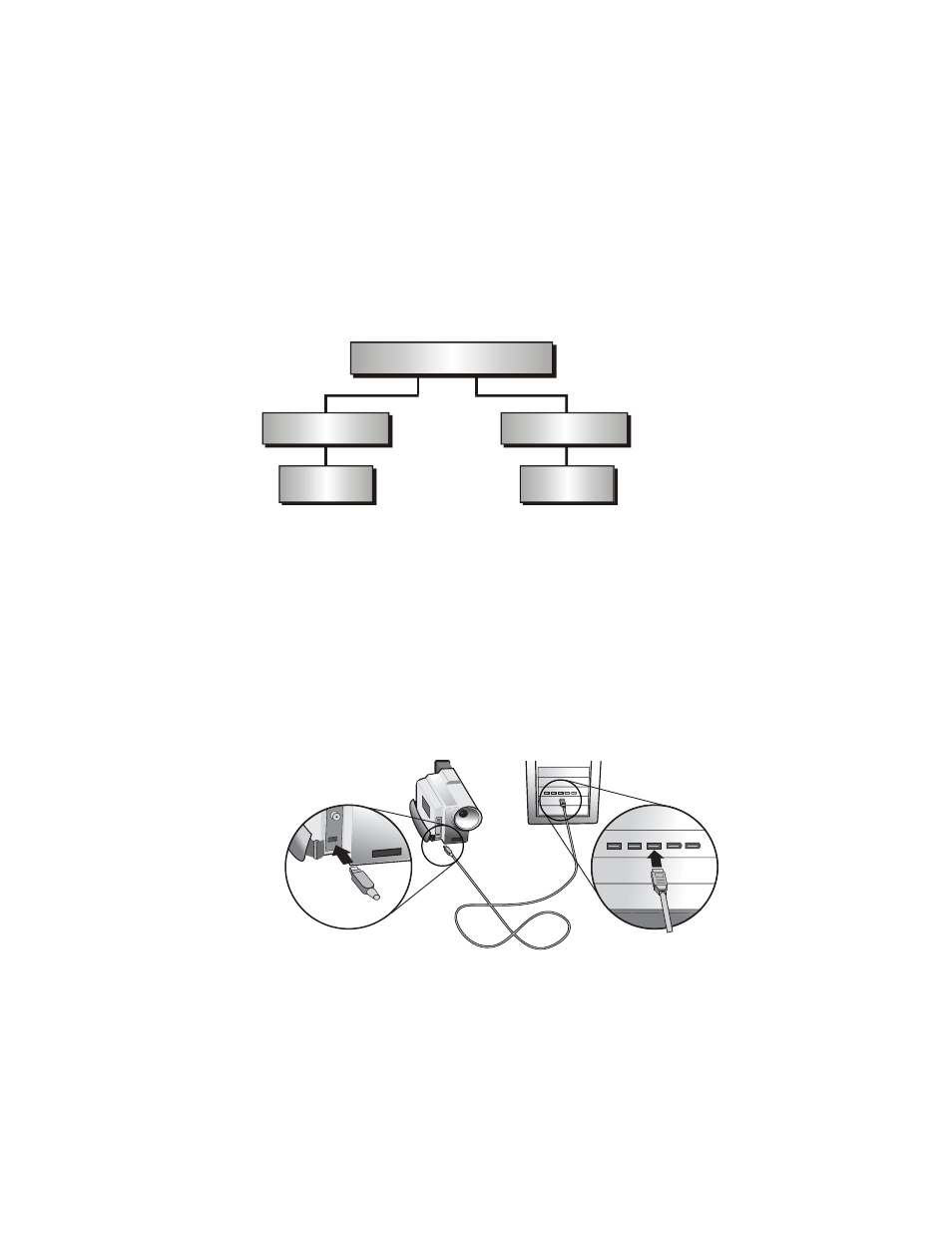

The following figure shows the recommended configuration for
connecting USB 1.1 and USB 2.0 devices. Note that you could
connect USB 2.0 devices to a USB 1.1 hub, but the USB 2.0 devices
would run at USB 1.1 speeds.
Connecting a Digital Video Camera
Two types of FireWire connectors are commonly used: a 4-pin and
a 6-pin. The DuoConnect adapter contains two external 6-pin
connectors suitable for use with a camera. Digital video cameras
use a 4-pin connector and may not include a cable. (Other
peripherals typically use a 6-pin connector.)
To attach a digital video camera
1 Using a standard 6-to-4 pin FireWire cable (included in the kit)
plug the larger, 6-pin connector of the cable into an external
FireWire port on the DuoConnect adapter.
USB 2.0 hub
USB 2.0 or
1.1 devices
USB 1.1
devices
DuoConnect adapter
USB 1.1 hub
4-pin device connector 6-pin adapter connector
