2-16 Chapter 2: Hardware information
2.7 Switches and jumpers
The motherboard frequency is adjusted through the DIP switches. The
white block represents the switch position. The illustration below shows all
the switches in the ON position.
1. JumperFree™ mode (J6)
This jumper allows you to enable or disable the JumperFree™ mode.
The JumperFree mode allows you to change CPU settings through the
BIOS setup instead of using the DIP switches.
The J6 jumper must be set to pins 2-3 (jumper mode) if you wish to
use the DIP switches. Otherwise, setting the switches does not
produce any effect.
®

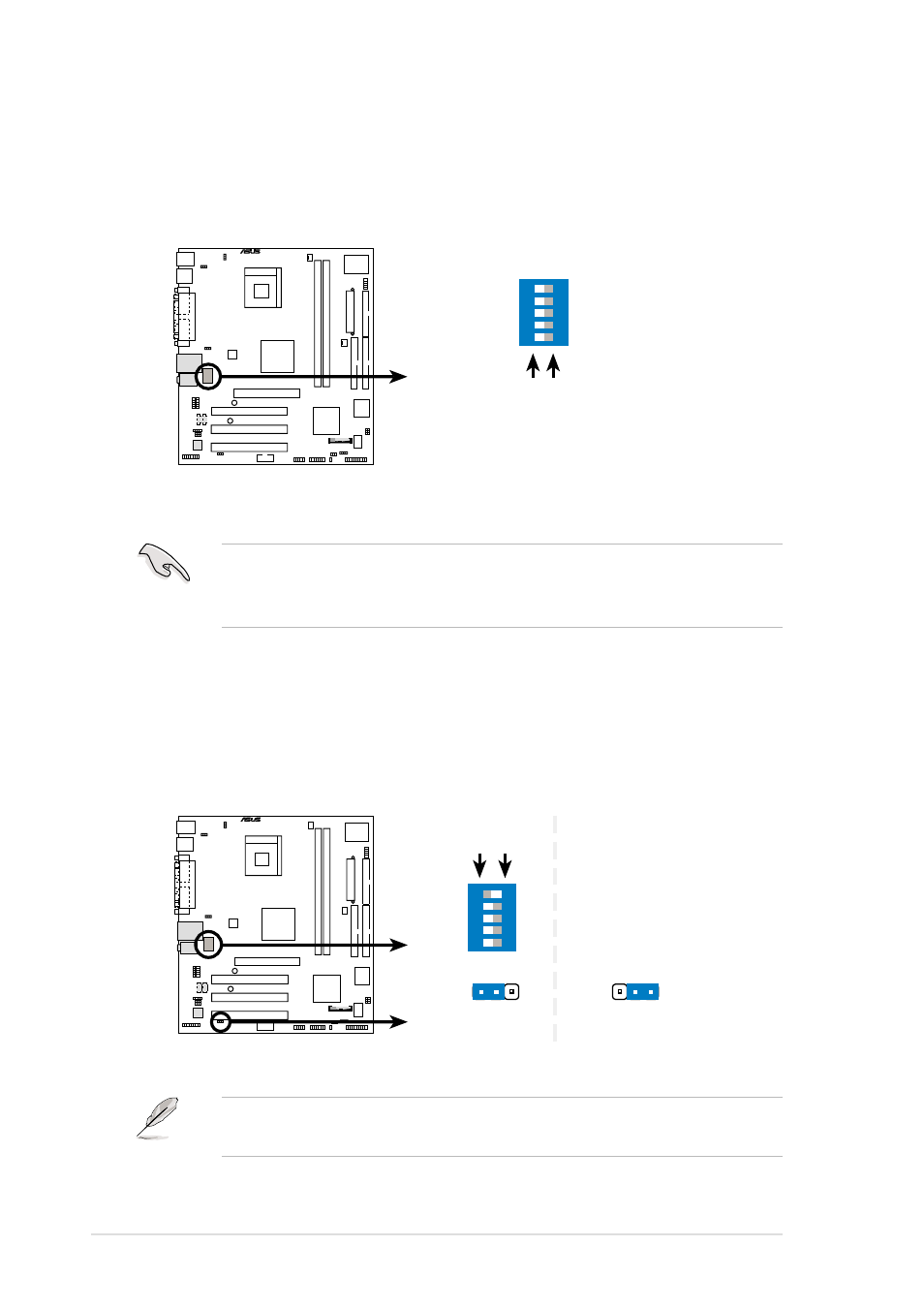

P4B533-VM
P4B533-VM DIP Switches
1.Frequency Selection
2.Frequency Selection
3.Frequency Selection
4.Frequency Selection
5.Frequency Selection
SW1
ON 12345
ON
OFF
®
P4B533-VM
2 1 2 3
P4B533-VM JumperFree™ Mode Setting
J6
Jumper Free
(Default)
Jumper Mode
SW1
ON OFF
ON 12345
For jumper mode, refer to the CPU frequency switch settings on the
next page.
