Connector Panel
The projector provides both computer and video connection options,
including:
•
VESA computer (2)
•
S-video
•
Composite video
•
Separate audio inputs for video and computer
The projector also provides the following connectors:
•
Monitor out, to provide an image on your desktop computer as well as
on the projection screen
•
Audio out, to provide sound for external speakers
•
USB, to provide mouse control (used with an optional remote control
only)
•
A 5 volt DC output (see below)
It also has an RS-232 connector for serial control. The Command Line Inter-
face (CLI) specifications and commands are on our website.
5 volt DC output
The 3.5mm mini-jack triggers provide a 5 volt, 2 amp DC output. It provides
a constant output while the projector is on. It is designed to provide power
for an InFocus LiteShow II wireless device, which allows wireless projec-
tion. More information can be found on our website at www.infocus.com or
at your retailer or dealer.

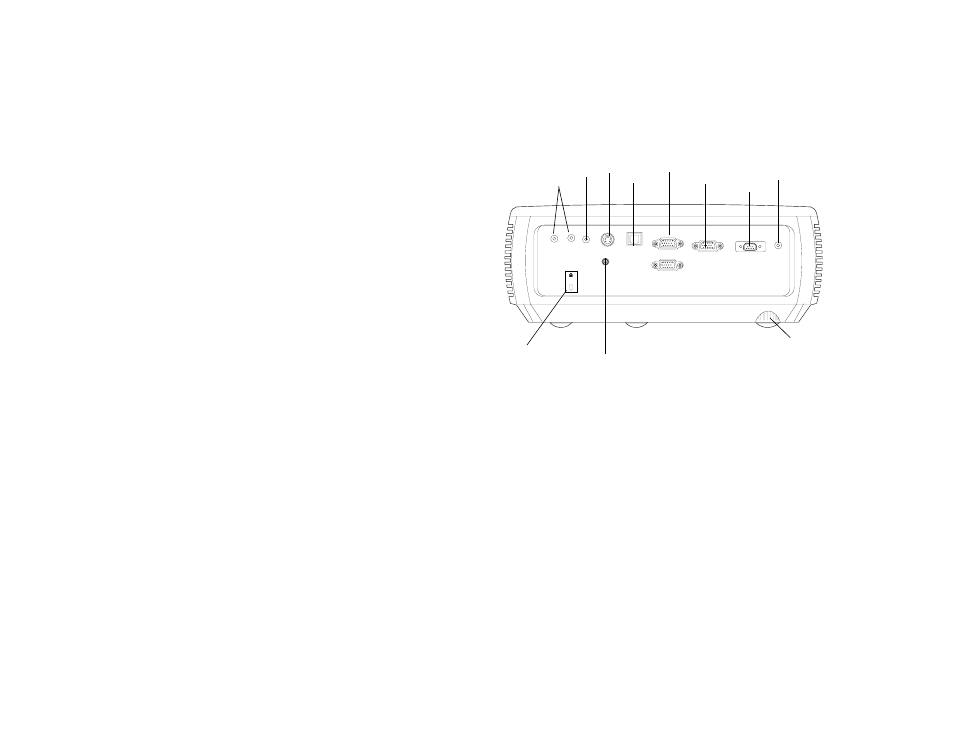

computer
monitor
S-video
audio
out
out
USB
composite video
audio in
foot
adjustable
security lock
RS-232
5 volt output
