Page 10: Getting started

background image

10

Getting Started

CD

L

R

DIGITAL IN

OPTICAL

COAXIAL

S VIDEO

VIDEO

AUDIO

INPUT

L

R

COMPONENT VIDEO OUT

1

2

1

2

Y

P

B

/B-Y P

R

/R-Y

VIDEO OUT

S VIDEO OUT

DIGITAL OUT

COAXIAL OPTICAL

5.1CH OUTPUT

WOOFER

L

R

FRONT REAR CENTER

AUDIO OUT

1

R

L

PCM/DTS/

DOLBY DIGITAL

2

S-LINK

IN

CONTROL S

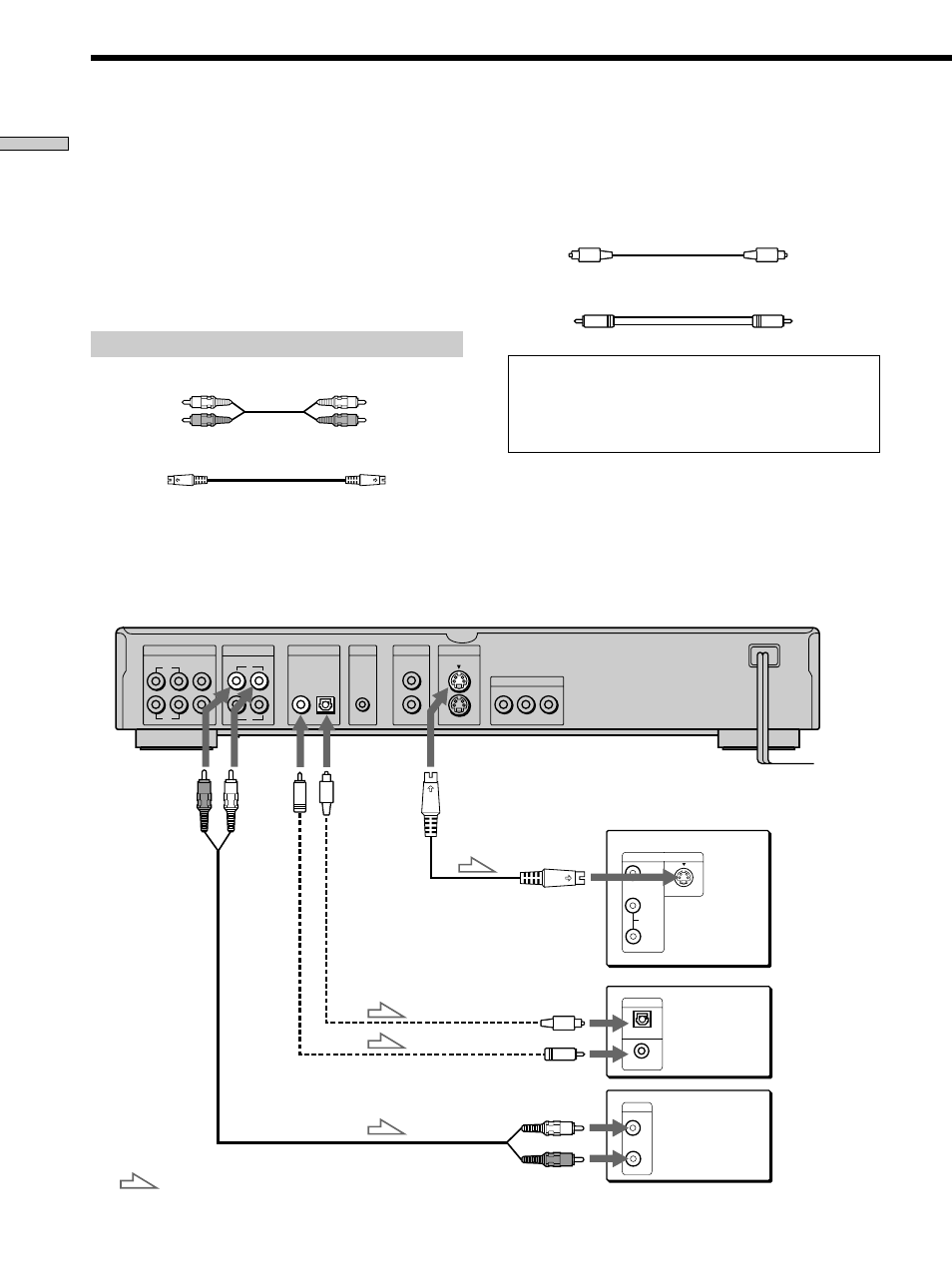

Receiver (Amplifier) Hookups

Connect your receiver (amplifier) as follows.
Refer as well to the instructions supplied with the
component to be connected.

z

You can enjoy surround sounds even if you only connect

front speakers

You can use 3D sound imaging to create virtual rear speakers
from the sound of the front speakers (L, R) without using actual
rear speakers (VES: Virtual Enhanced Surround and VIRTUAL
SEMI MULTI DIMENSION). For details, see page 37.

Required cords

Audio connecting cord (not supplied) (1)

S video cord (supplied) (1)

When connecting the cords, be sure to match the color-coded
cord to the appropriate jacks on the components: Red (right) to
Red and White (left) to White. Be sure to make connections firmly
to avoid hum and noise.

White (L)

Red (R)

White (L)

Red (R)

CD/DVD player

To AUDIO
OUT (R, L)

TV

To audio input

: Signal flow

Receiver
(Amplifier)

To an AC outlet

To S VIDEO
OUT

To S VIDEO
input

To DIGITAL
OUT
(OPTICAL)
Take off the
cap.

To
DIGITAL
OUT
(COAXIAL)

or

or

To optical digital input

To coaxial digital input

Receiver
(Amplifier) with
a digital
connector, MD
deck, DAT deck,
etc.

If you have a digital component such as a receiver (amplifier)
with a digital connector, DAT or MD, connect the component via
the DIGITAL OUT OPTICAL or COAXIAL connector using an
optical or coaxial digital connecting cord (not supplied).

Optical digital connecting cord (not supplied) (1)

Coaxial digital connecting cord (not supplied) (1)

Do not connect the power cord to a switched AC outlet
such as the AC outlet on a receiver (amplifier). Doing so
may cause the Playback Memory, Bookmark, Disc Memo
and menu settings to be cancelled when you turn off the
receiver.
